A uniform meter stick is balanced at its midpoint with a single support. A 44 N...

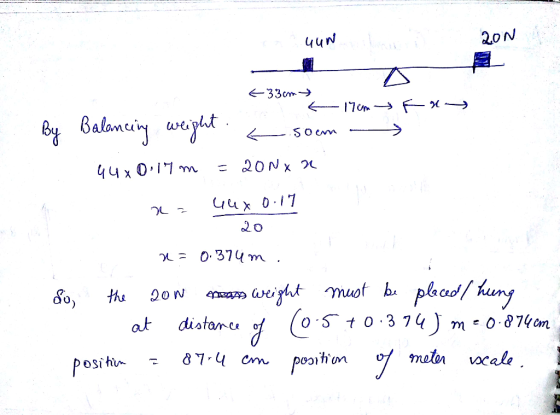

A uniform meter stick is balanced at its midpoint with a single support. A 44 N weight is suspended at the 33 cm mark. At what point must a 20 N weight be hung to balance the system?
Homework Answers
Add Answer to:
A uniform meter stick is balanced at its midpoint with a single
support. A 44 N...
Problem 40 3456 12 A 54.0 g meter stick is balanced at its midpoint (50.0 cm,...
Problem 40 3456 12 A 54.0 g meter stick is balanced at its midpoint (50.0 cm, zero point is a left end of stick). Then a 250.0-g welght is hung with a light string fronm the ig-67.0-cm point, and a 125-g weight is hung from the I-16.0-cm point (the figure below). Calculate the clockwise and countercloclkwise torgues acting on the board due to the four forces shown about the following axes: F pivee 50 cm I. Dolciate the clockwise torque...
A54.0 meter stick is balanced at its midpoint (50.0 cm, zero point is a left end...
A54.0 meter stick is balanced at its midpoint (50.0 cm, zero point is a left end of stick). Then 2500 welt hung with a light string from the 1967.0 cm point, and a 125 g weight is hung from the 16,0 cm point the figure below). Calculate the clockwise and counterclockwise torques acting on the board due to the four forces shown about the following axes: 50 cm 1) Calculate the clockwise torque if the axis is the 0 cm...
A uniform meter stick is supported on a knife edge at the 32.0 cm mark. When...
A uniform meter stick is supported on a knife edge at the 32.0 cm mark. When a 125 g mass is hung at the 16.0 cm mark, the stick is balanced. What is the mass of the meter stick?
A uniform meter stick (a ruler 100 cm long) is supported by a fulcrum at its...
A uniform meter stick (a ruler 100 cm long) is supported by a fulcrum at its 20 cm mark balances when a 200 g mass is suspended at the 0 cm end. Assume that the center of mass of the meter stick is exactly at its middle, the 50 cm mark. Determine the mass of the meter stick, in grams. Please show your work.
A uniform meter stick is balanced with the pivot located at the 60 cm mark. And...
A uniform meter stick is balanced with the pivot located at the 60 cm mark. And a mass of 50 grams placed at the 85 cm mark. What is the mass of the meter stick?
55) A 0.15-N meter stick is suspended from a spring scale at its 25-cm mark. When...
55) A 0.15-N meter stick is suspended from a spring scale at its 25-cm mark. When an object of unknown mass is hung from the meter stick on the 10-cm mark, the meter stick is in equilibrium. Draw an extended-body force diagram for the meter stick and (a) determine the mass of the object and (b) the reading on the spring scale.
A meter stick is suspended by two vertical cables and is parallel to the ground. cable...
A meter stick is suspended by two vertical cables and is parallel to the ground. cable 1 has a tension 627 N and is attached at the 12.0 cm mark on the meter stick. Cable 2 is attached at the 38.0 cm mark and has tension of 455 N. A block is hung veritcally from the meter stick and the meter stick is now in static equilibrium. ignore mass of the meter stick. A. What is the mass of the...
A uniform meter stick of mass $M$ has a half-filled can of fruit juice of mass...
A uniform meter stick of mass $M$ has a half-filled can of fruit juice of mass $m$ attached to one end. The meter stick and the can balance at a point 19.6 cm from the end of the stick where the can is attached. When the balanced stick-can system is suspended from a scale, the reading on the scale is 2.59 N. A.)Calculate the mass of the meter stick. B.)Calculate the mass of the can of juice.
Suppose that a meter stick is balanced at its center. A 0.18 kg mass is then...
Suppose that a meter stick is balanced at its center. A 0.18 kg mass is then positioned at the 8-cm mark. At what cm mark must a 0.22 kg mass be placed to balance the 0.18 kg mass? Please help
the fulcrum is positioned at the 50cm mark on the meter stick. A 50g mass is...
the fulcrum is positioned at the 50cm mark on the meter stick. A 50g mass is hung from 67 m mark on the stick. Also a 200g mass is suspended from the 89 cm mark. A. Calculate the total clockwise torque due to these masses B. assuming that the total counterclockwise torque is equal to the answer in (A) above, calculate the position on the meter stick where 315g mass must be suspended in order to balance the stick.
Problem 40 3456 12 A 54.0 g meter stick is balanced at its midpoint (50.0 cm, zero point is a left end of stick). Then a 250.0-g welght is hung with a light string fronm the ig-67.0-cm point, and a 125-g weight is hung from the I-16.0-cm point (the figure below). Calculate the clockwise and countercloclkwise torgues acting on the board due to the four forces shown about the following axes: F pivee 50 cm I. Dolciate the clockwise torque...
A54.0 meter stick is balanced at its midpoint (50.0 cm, zero point is a left end of stick). Then 2500 welt hung with a light string from the 1967.0 cm point, and a 125 g weight is hung from the 16,0 cm point the figure below). Calculate the clockwise and counterclockwise torques acting on the board due to the four forces shown about the following axes: 50 cm 1) Calculate the clockwise torque if the axis is the 0 cm...
A uniform meter stick is supported on a knife edge at the 32.0 cm mark. When a 125 g mass is hung at the 16.0 cm mark, the stick is balanced. What is the mass of the meter stick?
