Compare the rate of heat conduction through a 12 cm thick wall that has an area...
Compare the rate of heat conduction through a 12 cm thick wall
that has an area of 15 m2 and a thermal conductivity twice that of
glass wool, k=0.042, with the rate of heat conduction through a
window, k=0.84, that is 0.8 cm thick and that has an area of 2.75
m2, assuming a temperature difference of 12 °C across each.

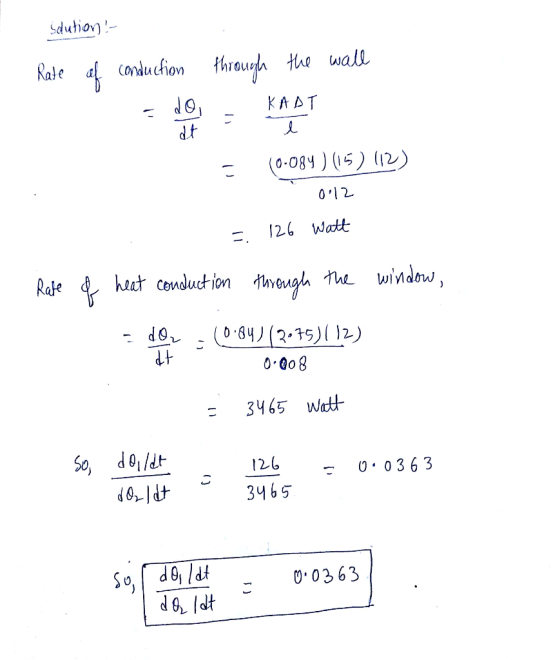

(a) What is the heat transfer rate through the wall?
QtQt = unit
(b) What is the heat transfer rate through the window?
QtQt = unit
Homework Answers
Add Answer to:
Compare the rate of heat conduction through a 12 cm thick wall
that has an area...
Consider the rate of heat conduction through a double-paned window that has a 1.45-m2 area and...
Consider
the rate of heat conduction through a double-paned window that has
a 1.45-m2 area and is made of two panes of
0.715-cm-thick glass separated by a 1.25-cm air gap. You can ignore
the increased heat transfer in the air gap due to convection.
Calculate the rate of heat conduction through this window, in
watts, given that the inside surface temperature is 15.0°C, while
the outside temperature is -10.0°C. Make the assumption that the
temperature differences across the two glass...
need help Problem 5: Suppose a house's walls are 14 cm thick and and have an...
need help
Problem 5: Suppose a house's walls are 14 cm thick and and have an average thermal conductivity twice that of glass wool. Substance Glass wool Wool Glass Human body Ceramic Wood Air Fatty tissue Styrofoam Thermal conductivity (J/s.m.) 0.042 0.04 0.84 0.2 0.84 0.08-0.16 0.023 0.2 0.010 Otheexperta.com Part (a) Calculate the rate of heat conduction, in watts, through the house's walls. Assume there are no windows or doors. The surface area of the walls is 105 m...
(a) Calculate the rate of heat conduction through house walls that are 13.0 cm thick and...
(a) Calculate the rate of heat conduction through house walls that are 13.0 cm thick and that have an average thermal conductivity twice that of glass wool. Assume there are no windows or doors. The surface area of the walls is 120m2 and their inside surface is at 18.0ºC, while their outside surface is at 5.00ºC (b) How many 1-kW room heaters would be needed to balance the heat transfer due to conduction?
(a) Calculate the rate of heat conduction through house walls that are 15.5 cm thick and...
(a) Calculate the rate of heat conduction through house walls that are 15.5 cm thick and that have an average thermal conductivity twice that of glass wool. Assume there are no windows or doors. The surface area of the walls is 125 m2 and their inside surface is at 21.0°C, while their outside surface is at 5.00°C. W (b) How many 1-kW room heaters would be needed to balance the heat transfer due to conduction? (Round your answer to the...
(a) Calculate the rate of heat conduction (in W) through house walls that are 11.5 cm...
(a) Calculate the rate of heat conduction (in W) through house walls that are 11.5 cm thick and that have an average thermal conductivity twice that of glass wool. Assume there are no windows or doors. The surface area of the walls is 145 m2 and their inside surface is at 22.5°C, while their outside surface is at 5.00°C. (b) How many 1 kW room heaters would be needed to balance the heat transfer due to conduction? (Round your answer...
14.30 - Conduction Part A Calculate the rate of heat conduction through house walls that are...
14.30 - Conduction Part A Calculate the rate of heat conduction through house walls that are 13.0 cm thick and that have an average thermal conductivity twice that of glass wool. Assume there are no windows or doors. The surface area of the walls is 290 m2 and their inside surface is at 19.0°C, while their outside surface is at 4.00°C. Submit Answer Tries 0/5 Part B How many 1.0-kw room heaters would be needed to (approximately balance the heat...
A concrete wall of a house is 45 cm thick and has a surface area 20m...
A concrete wall of a house is 45 cm thick and has a surface area 20m x 5 m. The inside temperature of the wall is 47 °C and the outside air temperature is 14 °C. Thermal conductivity of the concrete wall is 0.8 W/mK. Calculate the heat transfer rate through the wall by conduction and its thermal resistance.
(a) Calculate the rate of heat conduction (in W) through a double-paned window that has a...
(a) Calculate the rate of heat conduction (in W) through a double-paned window that has a 5.00 m2 area and is made of two panes of 0.700 cm thick glass separated by a 1.00 cm air gap. The inside surface temperature is 17.0°C, while that on the outside is −20.0°C. (Hint: There are identical temperature drops across the two glass panes. First find these and then the temperature drop across the air gap. This problem ignores the increased heat transfer...
Heat conduction occurs through any material, represented here by a rectangular bar, whether window glass or...
Heat conduction occurs through any material, represented here by a rectangular bar, whether window glass or walrus blubber. The temperature of the material is T2 on the left and T1 on the right, where T2 is greater than T1. The rate of heat transfer by conduction is directly proportional to the surface area A, the temperature difference T2 - T1, and the substance's conductivity k. The rate of heat transfer is inversely proportional to the thickness d. Q kA (T2-T)...
(a) Calculate the rate of heat conduction (in w) through a double-paned window that has a...
(a) Calculate the rate of heat conduction (in w) through a double-paned window that has a s.00 m2 area and is made of two panes of 0.700 cm thick glass separated by a 1.00 cm air gap. The nside surface temperature is 16.0*C, while that on the outside is-1S.0 C (Hnt: There are identical temperature drops across the two glass panes. First find these and then the temperature drop across the ar gap. This problem ignores the increased heat transfer...
Consider
the rate of heat conduction through a double-paned window that has
a 1.45-m2 area and is made of two panes of
0.715-cm-thick glass separated by a 1.25-cm air gap. You can ignore
the increased heat transfer in the air gap due to convection.
Calculate the rate of heat conduction through this window, in
watts, given that the inside surface temperature is 15.0°C, while
the outside temperature is -10.0°C. Make the assumption that the
temperature differences across the two glass...
need help
Problem 5: Suppose a house's walls are 14 cm thick and and have an average thermal conductivity twice that of glass wool. Substance Glass wool Wool Glass Human body Ceramic Wood Air Fatty tissue Styrofoam Thermal conductivity (J/s.m.) 0.042 0.04 0.84 0.2 0.84 0.08-0.16 0.023 0.2 0.010 Otheexperta.com Part (a) Calculate the rate of heat conduction, in watts, through the house's walls. Assume there are no windows or doors. The surface area of the walls is 105 m...
14.30 - Conduction Part A Calculate the rate of heat conduction through house walls that are 13.0 cm thick and that have an average thermal conductivity twice that of glass wool. Assume there are no windows or doors. The surface area of the walls is 290 m2 and their inside surface is at 19.0°C, while their outside surface is at 4.00°C. Submit Answer Tries 0/5 Part B How many 1.0-kw room heaters would be needed to (approximately balance the heat...
A concrete wall of a house is 45 cm thick and has a surface area 20m x 5 m. The inside temperature of the wall is 47 °C and the outside air temperature is 14 °C. Thermal conductivity of the concrete wall is 0.8 W/mK. Calculate the heat transfer rate through the wall by conduction and its thermal resistance.
Heat conduction occurs through any material, represented here by a rectangular bar, whether window glass or walrus blubber. The temperature of the material is T2 on the left and T1 on the right, where T2 is greater than T1. The rate of heat transfer by conduction is directly proportional to the surface area A, the temperature difference T2 - T1, and the substance's conductivity k. The rate of heat transfer is inversely proportional to the thickness d. Q kA (T2-T)...
(a) Calculate the rate of heat conduction (in w) through a double-paned window that has a s.00 m2 area and is made of two panes of 0.700 cm thick glass separated by a 1.00 cm air gap. The nside surface temperature is 16.0*C, while that on the outside is-1S.0 C (Hnt: There are identical temperature drops across the two glass panes. First find these and then the temperature drop across the ar gap. This problem ignores the increased heat transfer...
