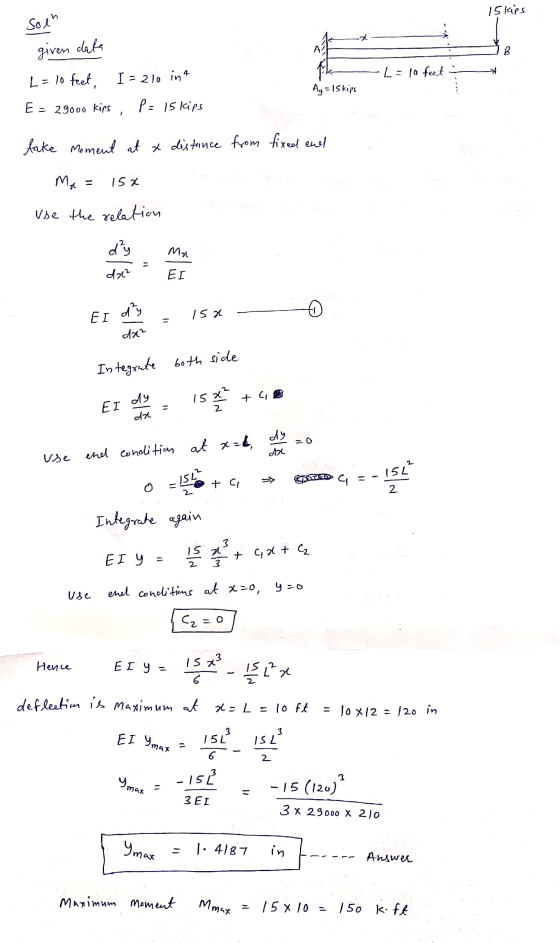

Computations: Cantilever beam: a. Span is 10 feet b. Moment of Inertia is 210 in4 c....
Computations:
Cantilever beam:
a. Span is 10 feet
b. Moment of Inertia is 210 in4
c. Young’s Modulus is 29,000 ksi
d. Point load at the tip of 15 kips
???? = ? − ??
???? = ??
Homework Answers
Add Answer to:
Computations:
Cantilever beam:
a. Span is 10 feet
b. Moment of Inertia is 210 in4
c....
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting th...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
in copyable matlab code The basic differential equation of the elastic curve for a cantilever beam as shown is given as: dx2 where E = the modulus of elasticity and I = the moment of inertia. Show...
in
copyable matlab code
The basic differential equation of the elastic curve for a cantilever beam as shown is given as: dx2 where E = the modulus of elasticity and I = the moment of inertia. Show how to use MATLAB ODE solvers to find the deflection of the beam. The following parameter values apply (make sure to do the conversion and use in as the Unit of Length in all calculations): E 30,000 ksi, 1 800 in4, P kips,...
PLEASE SOLVE USING MATLAB The basic differential equation of the elastic curve for a cantilever beam as shown is given as 2 da2 where E = the modulus of elasticity and-the moment of inertia. Show how...
PLEASE SOLVE USING MATLAB
The basic differential equation of the elastic curve for a cantilever beam as shown is given as 2 da2 where E = the modulus of elasticity and-the moment of inertia. Show how to use MATLAB ODE solvers to find the deflection of the beam. The following parameter values apply (make sure to do the conversion and use in as the Unit of Length in all calculations): E = 30,000 ksi, I = 800 in4, P-1 kips,...
Use Method of Virtual Work. 1. The 10 ft long steel (E = 29,000 ksi) cantilever...
Use Method of Virtual Work.
1. The 10 ft long steel (E = 29,000 ksi) cantilever beam shown below has a fixed support at the left end (Point A). The beam supports a 10 kips (downward) load at Point B and a 50 k-ft "point couple" (clockwise) at the free end of the cantilever (Point C). Region AB is 6 ft long with moment of inertia IAB = 500 in". Region BC is 4 ft long with moment of inertia...
Problem Two: The beam shown below part is for an interior span and is cast monolithically with a one-way slab. The clear span for the beam is 30 feet, and the clear spacing between beams is 10 fee...
Problem Two: The beam shown below part is for an interior span and is cast monolithically with a one-way slab. The clear span for the beam is 30 feet, and the clear spacing between beams is 10 feet. (a) Reinforcement is shown for the positive moment region. Determine if the beam is adequate to support a uniformly distributed, factored load of 5 k/ft. (b) Design the slab reinforcement for the positive moment region using a factored load of 500 psf....
16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of ...
16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. What is the required plastic section modulus Zx? (Include self-weight) 16.6b) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. Deflection is not to...
You are to use a circular rod as a beam. It’s span is 20 feet, and...
You are to use a circular rod as a beam. It’s span is 20 feet, and assume a diameter of 5 inches. The beam supports a distributed load of 2560 lbs/ft. Determine the bending moment to the nearest thousand pounds per foot (or kips per foot). Also determine the bending stress to the nearest ksi (thousands of pounds per square inch).
Problem# 1: Determine the location of the centroid. Determine the moment of inertia about horizontal and vertical cen 2" 2 6 Problem#1 : Select a solid, rectangular, Eastern hemlock beam f...
Problem# 1: Determine the location of the centroid. Determine the moment of inertia about horizontal and vertical cen 2" 2 6 Problem#1 : Select a solid, rectangular, Eastern hemlock beam for a 20 ft simple span carrying a superimposed uniform load of 325 lb/ft (15 points) Problem#2: Select the wide flange steel girder for a simple span of 36 ft subjected to a concentrated load of 215 kips at the midspan. Use A36 steel and assume that beam is supported...
A beam ABC with an overhang from B to C is constructed of a C 10...
A beam ABC with an overhang from B to C is constructed of a C 10
x 30 channel section (see figure). The beam supports its own weight
(30 lb/ft) plus a uniform load of intensity q acting on the
overhang. The allowable stresses in tension and compression are 18
ksi and 12 ksi, respectively. Determine the allowable uniform load
qallow (lb/ft) if the distance L equals 3.0 ft. The moment of
inertia, I = 3.94 in4.
19 The 10-ft span cantilever beam of 3 x 10 southern pine section is subjected to...
19 The 10-ft span cantilever beam of 3 x 10 southern pine section is subjected to the loads shown. Compute the deflections at the free-end C by using the deflection formulas. The modulus of elasticity of southern pine is E = 1800 ksi. IG Qeb 30 lbZet IB ic 12 ft to 4 ft
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
in
copyable matlab code
The basic differential equation of the elastic curve for a cantilever beam as shown is given as: dx2 where E = the modulus of elasticity and I = the moment of inertia. Show how to use MATLAB ODE solvers to find the deflection of the beam. The following parameter values apply (make sure to do the conversion and use in as the Unit of Length in all calculations): E 30,000 ksi, 1 800 in4, P kips,...
PLEASE SOLVE USING MATLAB
The basic differential equation of the elastic curve for a cantilever beam as shown is given as 2 da2 where E = the modulus of elasticity and-the moment of inertia. Show how to use MATLAB ODE solvers to find the deflection of the beam. The following parameter values apply (make sure to do the conversion and use in as the Unit of Length in all calculations): E = 30,000 ksi, I = 800 in4, P-1 kips,...
Use Method of Virtual Work.
1. The 10 ft long steel (E = 29,000 ksi) cantilever beam shown below has a fixed support at the left end (Point A). The beam supports a 10 kips (downward) load at Point B and a 50 k-ft "point couple" (clockwise) at the free end of the cantilever (Point C). Region AB is 6 ft long with moment of inertia IAB = 500 in". Region BC is 4 ft long with moment of inertia...
Problem Two: The beam shown below part is for an interior span and is cast monolithically with a one-way slab. The clear span for the beam is 30 feet, and the clear spacing between beams is 10 feet. (a) Reinforcement is shown for the positive moment region. Determine if the beam is adequate to support a uniformly distributed, factored load of 5 k/ft. (b) Design the slab reinforcement for the positive moment region using a factored load of 500 psf....
Problem# 1: Determine the location of the centroid. Determine the moment of inertia about horizontal and vertical cen 2" 2 6 Problem#1 : Select a solid, rectangular, Eastern hemlock beam for a 20 ft simple span carrying a superimposed uniform load of 325 lb/ft (15 points) Problem#2: Select the wide flange steel girder for a simple span of 36 ft subjected to a concentrated load of 215 kips at the midspan. Use A36 steel and assume that beam is supported...
A beam ABC with an overhang from B to C is constructed of a C 10
x 30 channel section (see figure). The beam supports its own weight
(30 lb/ft) plus a uniform load of intensity q acting on the
overhang. The allowable stresses in tension and compression are 18
ksi and 12 ksi, respectively. Determine the allowable uniform load
qallow (lb/ft) if the distance L equals 3.0 ft. The moment of
inertia, I = 3.94 in4.
19 The 10-ft span cantilever beam of 3 x 10 southern pine section is subjected to the loads shown. Compute the deflections at the free-end C by using the deflection formulas. The modulus of elasticity of southern pine is E = 1800 ksi. IG Qeb 30 lbZet IB ic 12 ft to 4 ft
