The left and right channels of an analog stereo audio signal are sampled at 44.1- ksample/s...

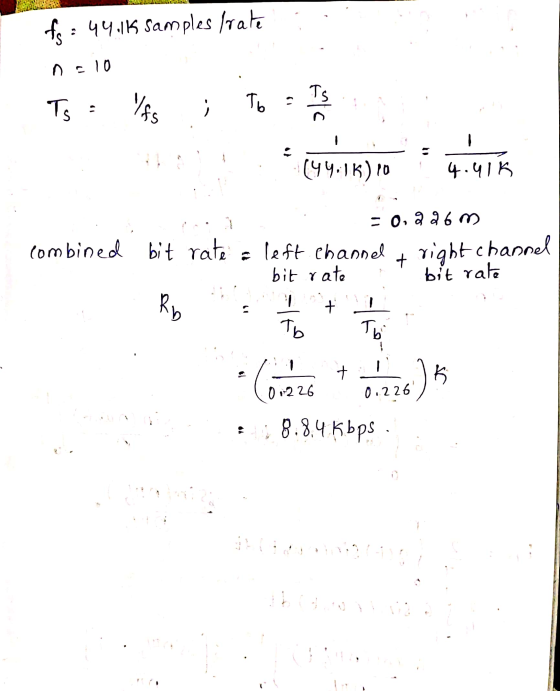

The left and right channels of an analog stereo audio signal are sampled at 44.1- ksample/s rate, with each channel then being converted into a digital bit stream using a 10-bit A/D converter. Determine the combined bit rate of the two channels after sampling and digitization.
Homework Answers
