Using a barrel shifter, and an adder, show how you can obtain the average of 4...

Question

Question

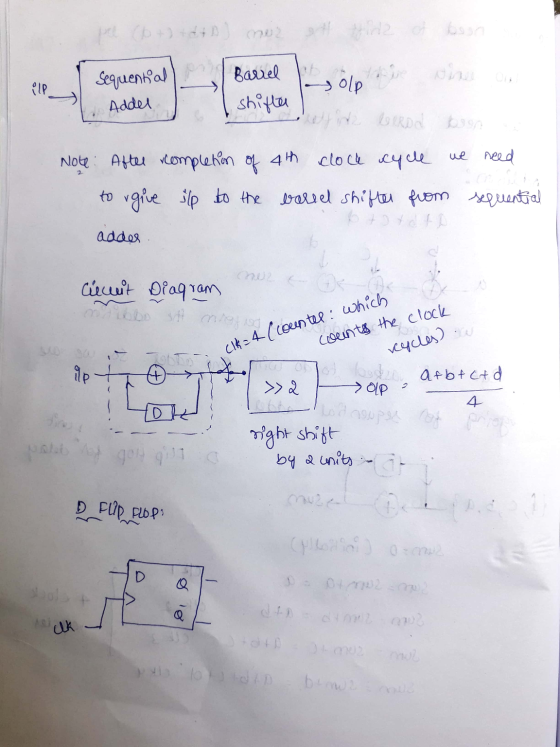

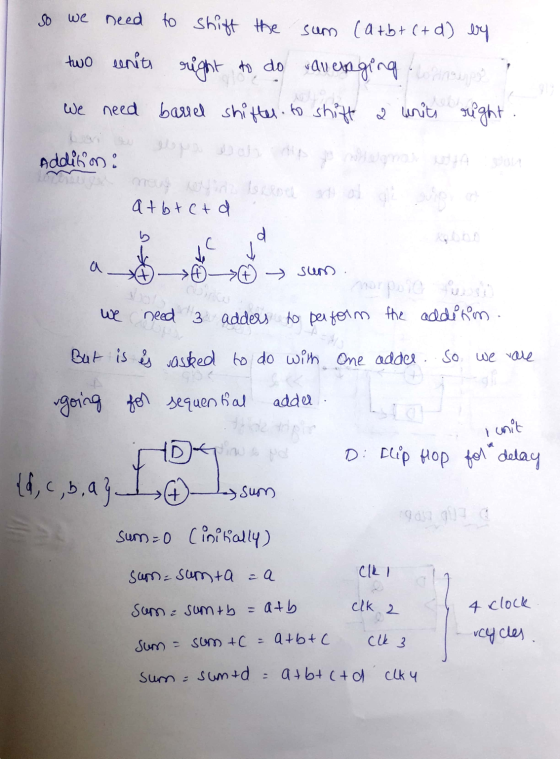

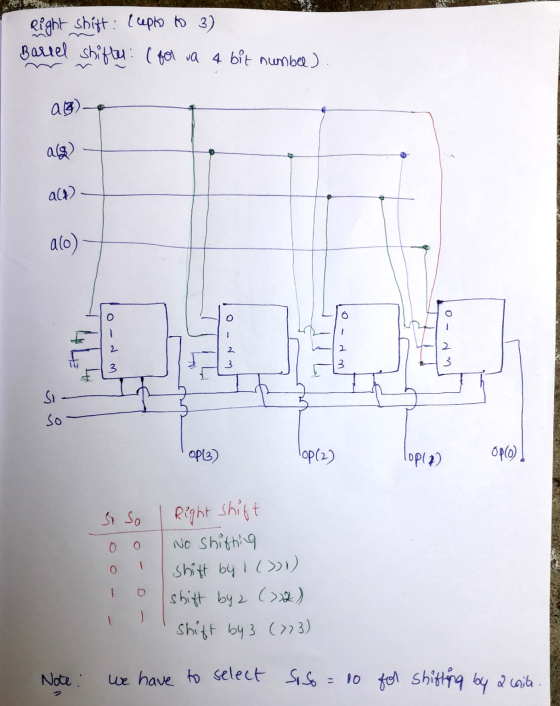

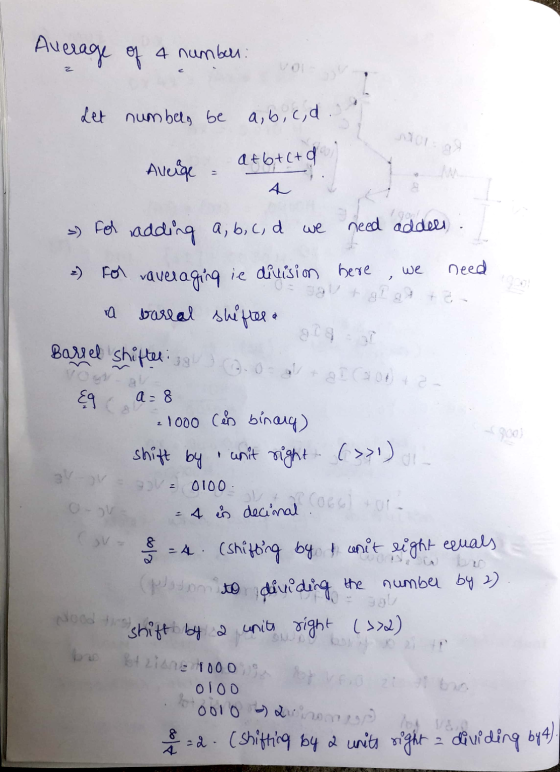

Using a barrel shifter, and an adder, show how you can obtain the average of 4 numbers

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2
