A gymnast flipped in the air with a maximum angular velocity of 6.5 rad/s while maintaining...

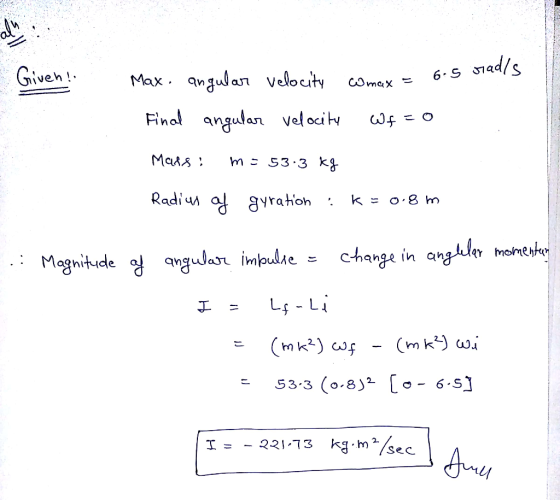

A gymnast flipped in the air with a maximum angular velocity of 6.5 rad/s while maintaining a constant body position. What is the magnitude of the angular impulse (in kg*m^2/s) exerted by the floor on that gymnast when they stuck the landing (w = 0 rad/s) if they had a mass of 53.3 kg and a radius of gyration of 0.8 m?
Homework Answers
Add Answer to:
A gymnast flipped in the air with a maximum angular velocity of
6.5 rad/s while maintaining...
a 60 kg gymnast leaves the ground with angular momentum about his transverse axis of 15...
a 60 kg gymnast leaves the ground with angular momentum about his transverse axis of 15 kg m2/s. His radius of gyration about the transverse axis is 0.7 m at take-off. During his subsequent somersault, he reduces his radius of gyration to 0.4 m. (a) What is the moment of inertia of the gymnast at take-off? During the somersault? (b) What is the angular velocity of the gymnast at take-off? During the somersault? (c) If it takes the gymnast 0.25...
Disk D has angular velocity ω': 4 rad/s and angular acceleration α': 1.2 rad/s' and radius...
Disk D has angular velocity ω': 4 rad/s and angular acceleration α': 1.2 rad/s' and radius r = 0.3 m. The fixed curved surface C has radius R = 0.8 m. If no slipping occurs between disk D and the fixed surface C, determine the angular velocity and angular acceleration, ω and α, of arm AB. 2. ω,α ω.a
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this...
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this article, determine the angular velocity w of link AB and the velocity of roller for the position illustrated. The angular velocity is positive if counterclockwise, negative if clockwise. Also, find the magnitude of the velocity of the center of link AB. B 65 mm 11.5 rad/s 50 mm AB.135 mm The instantaneous center of body OA is at O. The velocity of Ais vertical...
The angular velocity of the disk is w = (5a + 2) rad/s where t is...
The angular velocity of the disk is w = (5a + 2) rad/s where t is in seconds. Determine the magnitude of the tangential component of acceleration at point A (in) when t = 0.5 seconds. A 0.8 m
= The angular velocity of the disk is w (5t2 + 2) rad/s where t is...
= The angular velocity of the disk is w (5t2 + 2) rad/s where t is in seconds. Determine the magnitude of the tangential component of acceleration at point A (in) when t = 0.5 seconds. t A 0.8 m
A ring is spinning with angular velocity ω = 8 rad / s . w=8 rad/s...
A ring is spinning with angular velocity ω = 8 rad / s . w=8 rad/s We drop a second identical ring exactly on top of the first. The two rings get stuck and start spinning together with a new angular velocity. How much is this angular velocity?
879 A person is swinging a bat with angular velocity of 30 rad/s about its end....
879 A person is swinging a bat with angular velocity of 30 rad/s about its end. A ball is traveling to the left at 10 m/s. Mass of the bat is 3 kg and mas of the ball is 1 kg. a) Bat hits the ball back along the same path, and it travels in the opposite direction at the same speed. Find the magnitude and direction of an average force the bat exerted on the ball during the 0.01...
Problem 17.112 The circular concrete culvert rolls with an angular velocity of w = 0.52 rad/s...
Problem 17.112 The circular concrete culvert rolls with an angular velocity of w = 0.52 rad/s when the man is at the position shown. At this instant the center of gravity of the culvert and the man is located at point G, and the radius of gyration about G is kg = 3.4 ft. (Figure 1) Figure < 1 of 1 > Provi 0.5 ft - Part A Determine the angular acceleration of the culvert. The combined weight of the...
The circular concrete culvert rolls with an angular velocity of w = 0.56 rad/s when the...
The circular concrete culvert rolls with an angular velocity of w = 0.56 rad/s when the man is at the position shown. At this instant the center of gravity of the culvert and the man is located at point G, and the radius of gyration about G is kg = 3.2 ft. (Figure 1) PI Figure ( 1 oft 4 ft 0.5 ft Part A Determine the angular acceleration of the culvert. The combined weight of the culvert and the...
The circular concrete culvert rolls with an angular velocity of w=0.56 rad/s when the man is...
The circular concrete culvert rolls with an angular velocity of w=0.56 rad/s when the man is at the position shown. At this instant the center of gravity of the culvert and the man is located at point Gand the radius of gyration about G is kg = 3.2 ft. (Figure 1) Figure 1 of 1 > 4 ft 0.5 ft Part A Determine the angular acceleration of the culvert. The combined weight of the culvert and the man is 500...
Disk D has angular velocity ω': 4 rad/s and angular acceleration α': 1.2 rad/s' and radius r = 0.3 m. The fixed curved surface C has radius R = 0.8 m. If no slipping occurs between disk D and the fixed surface C, determine the angular velocity and angular acceleration, ω and α, of arm AB. 2. ω,α ω.a
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this article, determine the angular velocity w of link AB and the velocity of roller for the position illustrated. The angular velocity is positive if counterclockwise, negative if clockwise. Also, find the magnitude of the velocity of the center of link AB. B 65 mm 11.5 rad/s 50 mm AB.135 mm The instantaneous center of body OA is at O. The velocity of Ais vertical...
The angular velocity of the disk is w = (5a + 2) rad/s where t is in seconds. Determine the magnitude of the tangential component of acceleration at point A (in) when t = 0.5 seconds. A 0.8 m
= The angular velocity of the disk is w (5t2 + 2) rad/s where t is in seconds. Determine the magnitude of the tangential component of acceleration at point A (in) when t = 0.5 seconds. t A 0.8 m
879 A person is swinging a bat with angular velocity of 30 rad/s about its end. A ball is traveling to the left at 10 m/s. Mass of the bat is 3 kg and mas of the ball is 1 kg. a) Bat hits the ball back along the same path, and it travels in the opposite direction at the same speed. Find the magnitude and direction of an average force the bat exerted on the ball during the 0.01...
Problem 17.112 The circular concrete culvert rolls with an angular velocity of w = 0.52 rad/s when the man is at the position shown. At this instant the center of gravity of the culvert and the man is located at point G, and the radius of gyration about G is kg = 3.4 ft. (Figure 1) Figure < 1 of 1 > Provi 0.5 ft - Part A Determine the angular acceleration of the culvert. The combined weight of the...
The circular concrete culvert rolls with an angular velocity of w = 0.56 rad/s when the man is at the position shown. At this instant the center of gravity of the culvert and the man is located at point G, and the radius of gyration about G is kg = 3.2 ft. (Figure 1) PI Figure ( 1 oft 4 ft 0.5 ft Part A Determine the angular acceleration of the culvert. The combined weight of the culvert and the...
The circular concrete culvert rolls with an angular velocity of w=0.56 rad/s when the man is at the position shown. At this instant the center of gravity of the culvert and the man is located at point Gand the radius of gyration about G is kg = 3.2 ft. (Figure 1) Figure 1 of 1 > 4 ft 0.5 ft Part A Determine the angular acceleration of the culvert. The combined weight of the culvert and the man is 500...
