Consider a scenario where the transmitting host and the receiving host are separated by two routers....

Consider a scenario where the transmitting host and the receiving host are separated by two routers.
Suppose the packet length is L= 2000 bits, and that the link transmission rate R for both the leg is 10Mbps across all legs
1. What is the transmission delay (the time needed to transmit all the packets)?
2. Suppose the packet is split into two 1000 bits packet. How long will (transmission delay) it take for both the packets to reach the receiver?

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

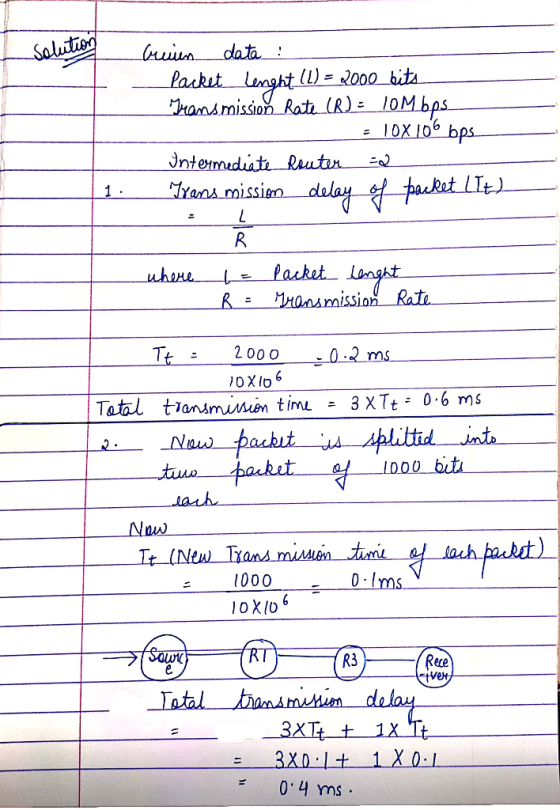

Answer #1

0 0
Add a comment
