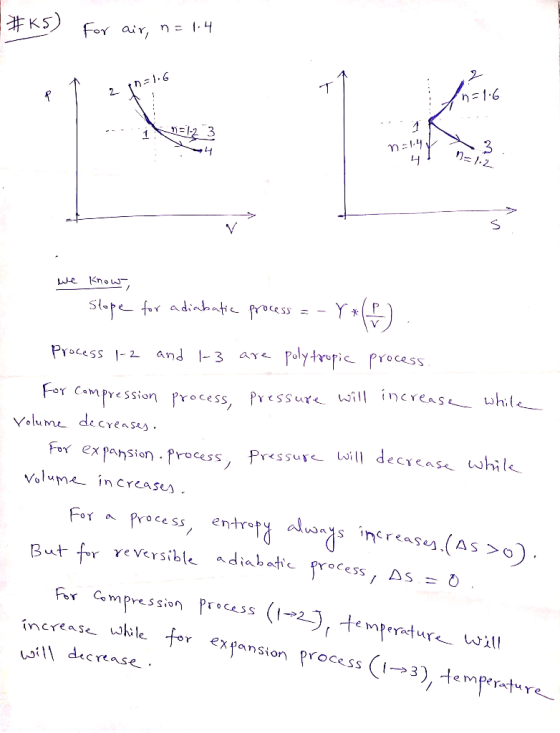

K5) Plot the process of air(n=1.4) on p-v and T-s diagram, and indicate the minus or...
K5) Plot the process of air(n=1.4) on p-v and T-s diagram, and indicate the minus or plus sign of and Au. (8 points) KI) Process 1-2: reversible compression process, n=1.6 K2) Process 1-3: reversible expansion process, n=1.2 0 0, 0, Au>,,
Homework Answers
Add Answer to:
K5) Plot the process of air(n=1.4) on p-v and T-s diagram, and
indicate the minus or...
7) An ideal gas is taken around the cycle shown in this p-V diagram, from a...
7) An ideal gas is taken around the cycle shown in this p-V diagram, from a to b to c and back to a. Process b-c is isothermal. For process a- b, D. 0-0, AU<0 8) An ideal gas is compressed in a well-insulated chamber using a well-insulated piston. This process IS A) isochoric. B) isothermal. C) adiabatic. D) isobaric. 9) The process shown in the T-V diagram in the figure is an T. A) adiabatic compression. B) isothermal compression....
An air standard Otto cycle at the initial condition of P,=1 bar, T,=290 °K, V =...
An air standard Otto cycle at the initial condition of P,=1 bar, T,=290 °K, V = 400 cm². The maximum temperature of the engine is 2200°K and compression ratio is 8. The mass of air is assumed to be 4.8x104kg. Assume isentropic process exits in both compression and expansion strokes. (a) Sketch the P-V and T-S diagram of the cycle (5%), (b) determine the total heat addition to the gas in kj (20%). (c) Net cycle work output of the...
Air in a piston-cylinder assembly executes a Carnot power cycle (4 internally reversible processes, shown in...
Air in a piston-cylinder assembly executes a Carnot power cycle (4 internally reversible processes, shown in the figure below). The isothermal expansion and compression processes occur at TH 1400 K and Tc-350 K, respectively. The pressure at the beginning and end of the isothermal compression are p4-100 kPa and pi - 500 kPa, respectively Assume the ideal gas model for the air: ai 0.717 J/g.K Mair- 28.97 g/mol kpv.air 1.4 R 8.314J /(mol K) Adiabatic Isothermal expansion Adiabatic compression Gas...
One kg of air is in a piston-cylinder assembly. Air is modeled as an ideal gas...
One kg of air is in a piston-cylinder assembly. Air is modeled as an ideal gas with a constant specific heat ratio, k = 1.4. The air undergoes a power cycle consisting of four processes in series: Process 1-2: Constant-temperature expansion at 600 K from P, = 0.5 MPa to P2 = 0.4 MPa Process 2-3: Polytropic expansion with n=k to P; - 0.3 MPa Process 3-4: Constant-pressure compression to V4-V Process 4-1: Constant-volume heating. (a) Sketch the cycle on...
Air in a cylinder-Piston device undergoes a cyclic process. Initially, the air is at P-5 [MPa)...
Air in a cylinder-Piston device undergoes a cyclic process. Initially, the air is at P-5 [MPa) and T-350 [C]. Process 1 to 2 is an isothermal expansion from 5 (MPa) to 1 [MPa). Process 2 to 3 is a polytropie compression to 5 [MPa) with a polytropic exponent n=1.3. The cycle gets completed by a constant pressure process from the state 3 to 1. Air properties are R 0.287 [Kj/Kg. K] and k=1.4 and the mass of air in cylinder...
Problem 4 (25 points) A piston cylinder contains 0.01 kg air at 290 K, 96 kPa....
Problem 4 (25 points) A piston cylinder contains 0.01 kg air at 290 K, 96 kPa. A reversible adiabatic compression brings it to 1/10 of the initial volume. After this process combustion adds 1000 kJ/kg of energy (assume heat transfer) in a constant P process to state 3. a) Plot the two process in a P-v and T-s diagram. b) Find P and T for state 2. c) Find T for state 3. d) Find the work in the two...
PROBLEM-4 (50%) One kg of air is in a piston-cylinder assembly. Air is modeled as an...
PROBLEM-4 (50%) One kg of air is in a piston-cylinder assembly. Air is modeled as an ideal gas with a constant specific heat ratio, k = 1.4. The air undergoes a power cycle consisting of four processes in series: Process 1-2: Constant-temperature expansion at 600 K from P1 = 0.5 MPa to P2 = 0.4 MPa Process 2–3: Polytropic expansion with n=k to P3 = 0.3 MPa Process 3–4: Constant-pressure compression to V4 = V1 Process 4–1: Constant-volume heating. (a)...
C only please Question 1 (50 points) One kg of air is in a piston-cylinder assembly....
C
only please
Question 1 (50 points) One kg of air is in a piston-cylinder assembly. Air is modeled as an ideal gas with a constant specific heat ratio, k = 1.4. The air undergoes a power cycle consisting of four processes in series: Process 1-2: Constant-temperature expansion at 600 K from P, = 0.5 MPa to P2 = 0.4 MPa Process 2–3: Polytropic expansion with n=k to Pz = 0.3 MPa Process 3-4: Constant-pressure compression to V4 = V....
An air Otto cycle has compression ratio of 10. At the beginning of the compression process,...
An air Otto cycle has compression ratio of 10. At the beginning of the compression process, pressure is 1 bar and temperature is 300 K. The maximum temperature in the cycle is 2500 K. Cp=718 J/kg/K. k=1.4. Air is ideal gas. Find: (1) Sketch the process on a T-s diagram and a P-v diagram. (2+2") (2) Temperature at each point from T1 to T4 in K. (12) (3) The net work per unit of air in kJ/kg. (4')
4.4 (14 pts) Dxaw the p-v and T-s graphs for an ideal, air standard DIESEL cycle....
4.4 (14 pts) Dxaw the p-v and T-s graphs for an ideal, air standard DIESEL cycle. Identify what happens during each process in the table below from each category as follows: (Use only those labels that apply) a. Compression, Heat Addition, Expansion, Heat Rejection b. Isentropic, Isometric, Isobaric, Isothermal (shorthand is acceptable) c. Work In, Work Out, Heat In, Heat Out (in proper variable form) Process a. C.
7) An ideal gas is taken around the cycle shown in this p-V diagram, from a to b to c and back to a. Process b-c is isothermal. For process a- b, D. 0-0, AU<0 8) An ideal gas is compressed in a well-insulated chamber using a well-insulated piston. This process IS A) isochoric. B) isothermal. C) adiabatic. D) isobaric. 9) The process shown in the T-V diagram in the figure is an T. A) adiabatic compression. B) isothermal compression....
An air standard Otto cycle at the initial condition of P,=1 bar, T,=290 °K, V = 400 cm². The maximum temperature of the engine is 2200°K and compression ratio is 8. The mass of air is assumed to be 4.8x104kg. Assume isentropic process exits in both compression and expansion strokes. (a) Sketch the P-V and T-S diagram of the cycle (5%), (b) determine the total heat addition to the gas in kj (20%). (c) Net cycle work output of the...
Air in a piston-cylinder assembly executes a Carnot power cycle (4 internally reversible processes, shown in the figure below). The isothermal expansion and compression processes occur at TH 1400 K and Tc-350 K, respectively. The pressure at the beginning and end of the isothermal compression are p4-100 kPa and pi - 500 kPa, respectively Assume the ideal gas model for the air: ai 0.717 J/g.K Mair- 28.97 g/mol kpv.air 1.4 R 8.314J /(mol K) Adiabatic Isothermal expansion Adiabatic compression Gas...
One kg of air is in a piston-cylinder assembly. Air is modeled as an ideal gas with a constant specific heat ratio, k = 1.4. The air undergoes a power cycle consisting of four processes in series: Process 1-2: Constant-temperature expansion at 600 K from P, = 0.5 MPa to P2 = 0.4 MPa Process 2-3: Polytropic expansion with n=k to P; - 0.3 MPa Process 3-4: Constant-pressure compression to V4-V Process 4-1: Constant-volume heating. (a) Sketch the cycle on...
Air in a cylinder-Piston device undergoes a cyclic process. Initially, the air is at P-5 [MPa) and T-350 [C]. Process 1 to 2 is an isothermal expansion from 5 (MPa) to 1 [MPa). Process 2 to 3 is a polytropie compression to 5 [MPa) with a polytropic exponent n=1.3. The cycle gets completed by a constant pressure process from the state 3 to 1. Air properties are R 0.287 [Kj/Kg. K] and k=1.4 and the mass of air in cylinder...
Problem 4 (25 points) A piston cylinder contains 0.01 kg air at 290 K, 96 kPa. A reversible adiabatic compression brings it to 1/10 of the initial volume. After this process combustion adds 1000 kJ/kg of energy (assume heat transfer) in a constant P process to state 3. a) Plot the two process in a P-v and T-s diagram. b) Find P and T for state 2. c) Find T for state 3. d) Find the work in the two...
PROBLEM-4 (50%) One kg of air is in a piston-cylinder assembly. Air is modeled as an ideal gas with a constant specific heat ratio, k = 1.4. The air undergoes a power cycle consisting of four processes in series: Process 1-2: Constant-temperature expansion at 600 K from P1 = 0.5 MPa to P2 = 0.4 MPa Process 2–3: Polytropic expansion with n=k to P3 = 0.3 MPa Process 3–4: Constant-pressure compression to V4 = V1 Process 4–1: Constant-volume heating. (a)...
C
only please
Question 1 (50 points) One kg of air is in a piston-cylinder assembly. Air is modeled as an ideal gas with a constant specific heat ratio, k = 1.4. The air undergoes a power cycle consisting of four processes in series: Process 1-2: Constant-temperature expansion at 600 K from P, = 0.5 MPa to P2 = 0.4 MPa Process 2–3: Polytropic expansion with n=k to Pz = 0.3 MPa Process 3-4: Constant-pressure compression to V4 = V....
An air Otto cycle has compression ratio of 10. At the beginning of the compression process, pressure is 1 bar and temperature is 300 K. The maximum temperature in the cycle is 2500 K. Cp=718 J/kg/K. k=1.4. Air is ideal gas. Find: (1) Sketch the process on a T-s diagram and a P-v diagram. (2+2") (2) Temperature at each point from T1 to T4 in K. (12) (3) The net work per unit of air in kJ/kg. (4')
4.4 (14 pts) Dxaw the p-v and T-s graphs for an ideal, air standard DIESEL cycle. Identify what happens during each process in the table below from each category as follows: (Use only those labels that apply) a. Compression, Heat Addition, Expansion, Heat Rejection b. Isentropic, Isometric, Isobaric, Isothermal (shorthand is acceptable) c. Work In, Work Out, Heat In, Heat Out (in proper variable form) Process a. C.
