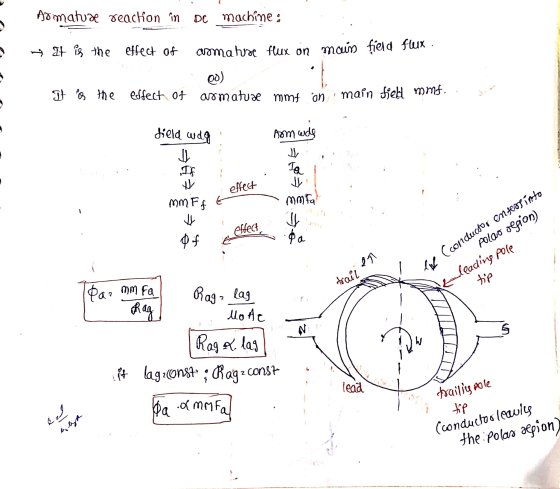

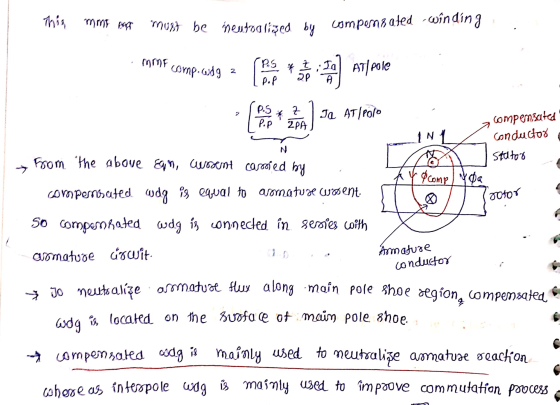

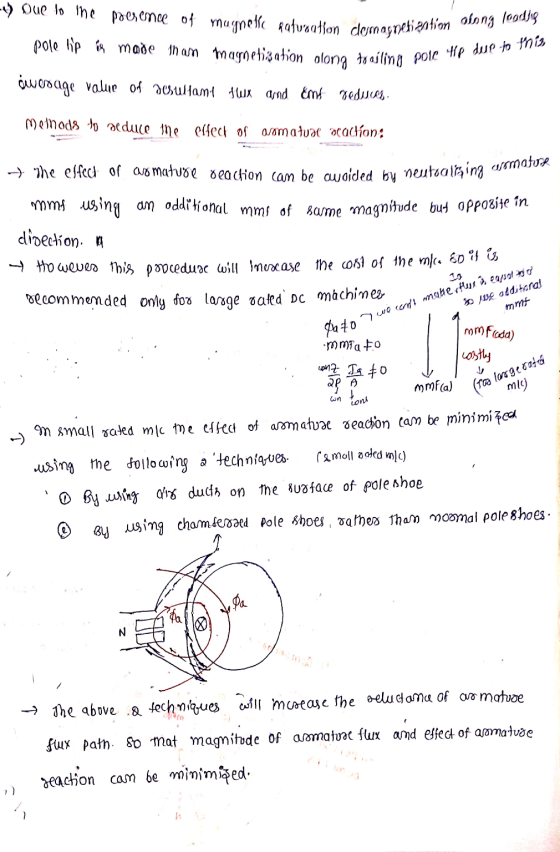

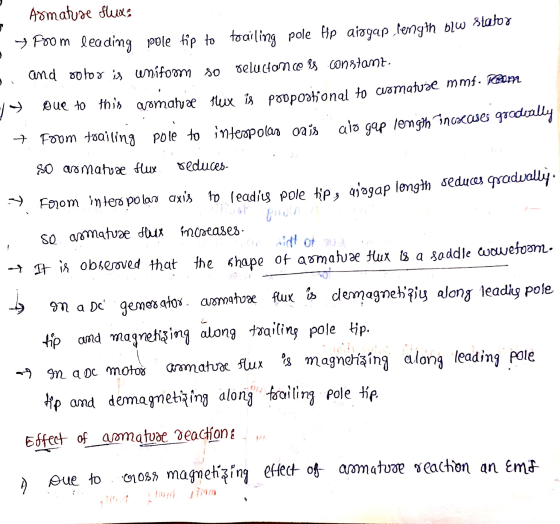

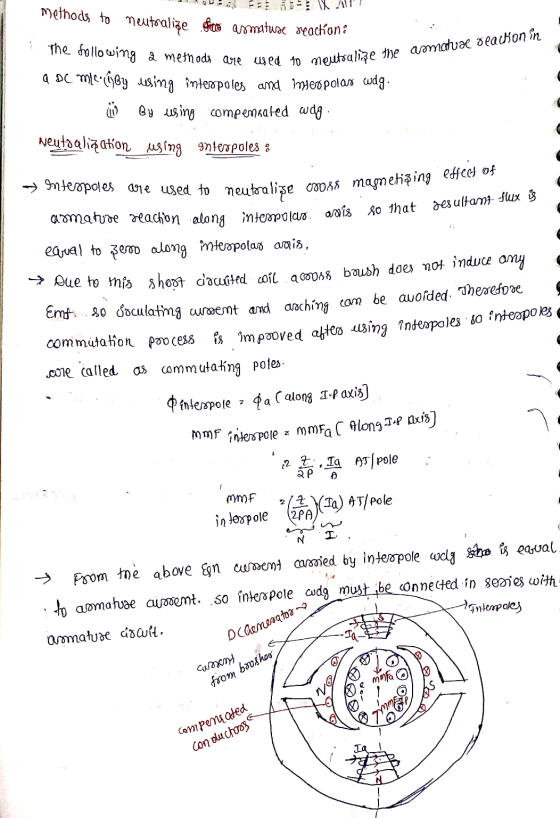

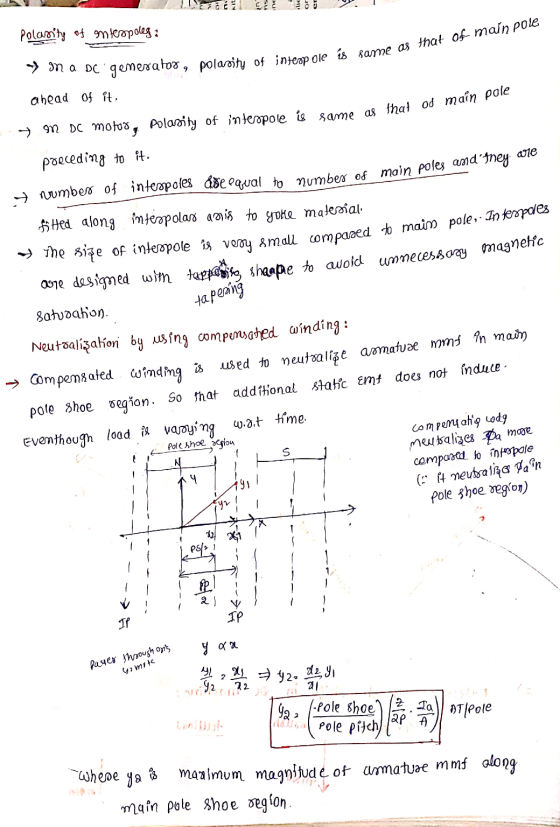

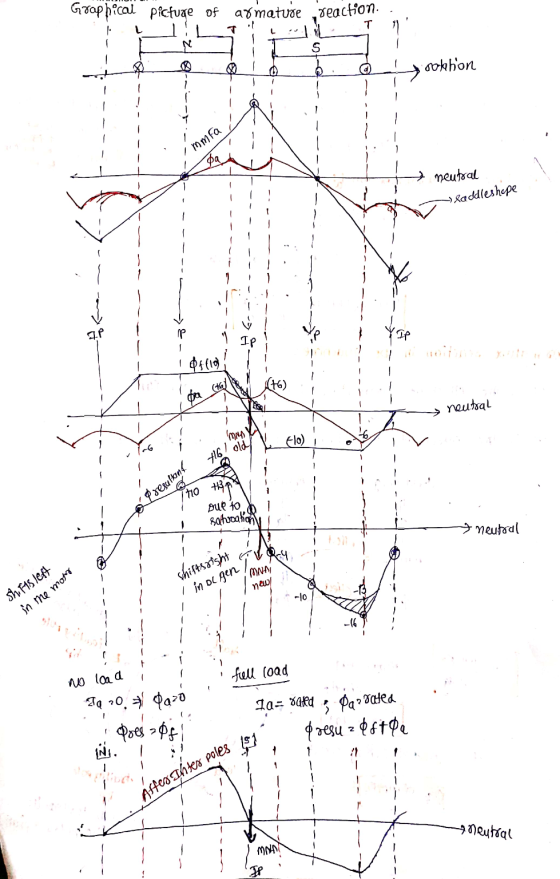

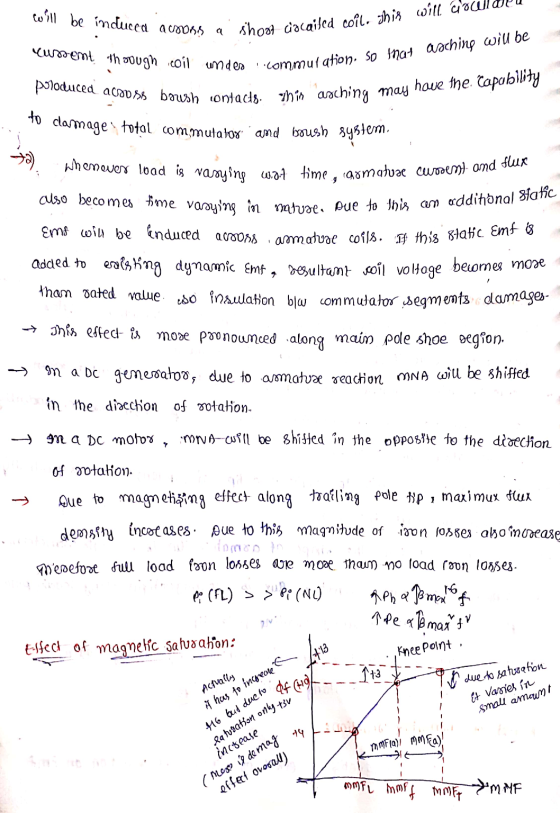

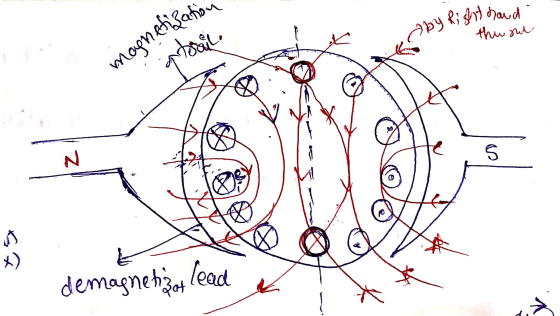

Explain in detail the armature reaction in DC machines.

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

THANK YOU!!!!!!!!

Answer 2
