A stack of 3 blocks rests on a table, as shown in the diagram. Each block...

A stack of 3 blocks rests on a table, as shown in the diagram. Each block has a mass of 12.0 kg. Suppose you push down on block A with a force of 125 Newtons. What is the normal force between blocks A and B? Between blocks B and C? Between block C and the table?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

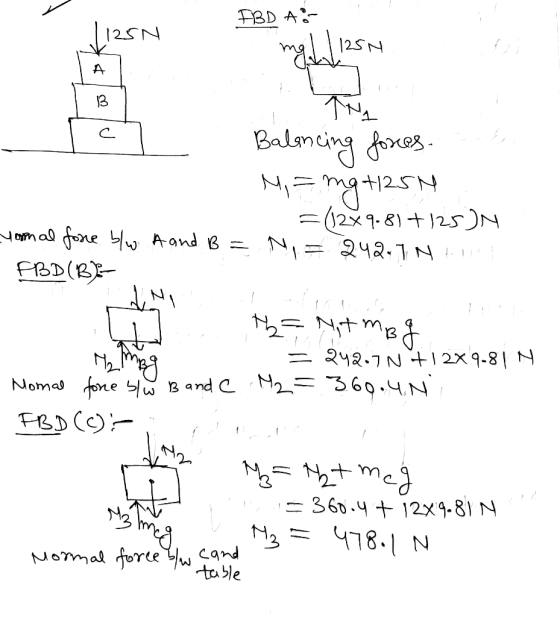

Answer #1

0 0
Add a comment
