10.) Suppose a 45 cm long, 9.5 cm diameter solenoid has 1000 loops. Part (a) Calculate...

Question

Question

10.) Suppose a 45 cm long, 9.5 cm diameter solenoid has 1000 loops.

Part (a) Calculate the self-inductance of it in mH.

science physics

Answer 1

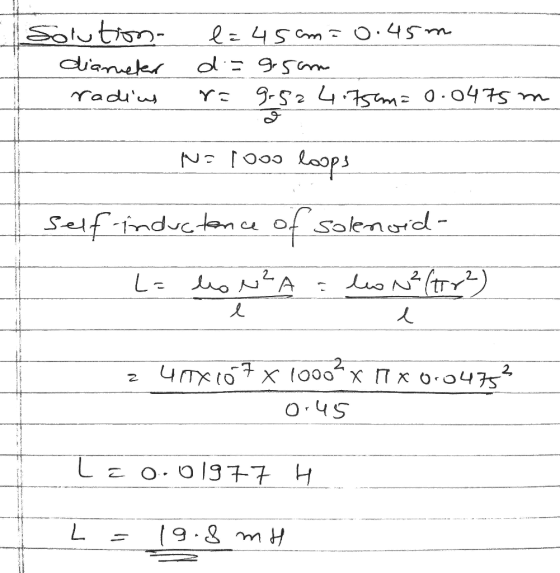

Answer #1

If you have any doubt please write in the comment box or else Please like thank you
