A pump with an efficiency of 62 percent raises the pressure of water from 10psig to...

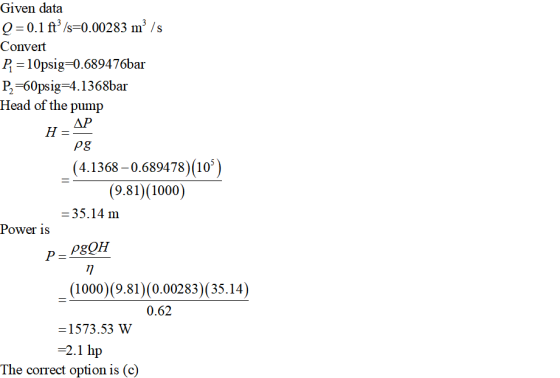

A pump with an efficiency of 62 percent raises the pressure of water from 10psig to 60psig. The volume flow rate of the water through the pump is 0.1ft'/s. What is the power input to the pump assuming no change in kinetic or potential energy?
a. 1.5 hp
b 3.2 hp
c. 2.1 hp
d. 4.3 hp
Homework Answers
Add Answer to:
A pump with an efficiency of 62 percent raises the pressure of
water from 10psig to...
A water pump delivers 6 hp of shaft power when operating. The pressure differential between the...
A water pump delivers 6 hp of shaft power when operating. The pressure differential between the outlet and the inlet of the pump is measured to be 1.2 psi when the flow rate is 10 ft3/s, and the velocity changes to 5 ft/s from 2 ft/s as the water passes through the pump. Determine the mechanical efficiency of this pump assuming the water density to be 62.4 lbm/ft3 (written in decimal form with 3 significant figures).
A pump is used to circulate hot water in a home heating system. Water enters the...
A pump is used to circulate hot water in a home heating system.
Water enters the well-insulated pump operating at steady state at a
rate of 0.42 gal/min. The inlet pressure and temperature are 14.7
lbf/in2, and 180F,
respectively; at the exit the pressure is 60 lbf/in2.
The pump requires 1/35 hp of power input. Water can be modeled as
an incompressible substance with constant density of 60.58
lb/ft3 and constant specific heat of 1 Btu/lb
R.
Neglecting kinetic and...
A pump is used to circulate hot water in a home heating system. Water enters the...
A pump is used to circulate hot water in a home heating system. Water enters the well-insulated pump operating at steady state at a rate of 0.42 gal/min. The inlet pressure and temperature are 14.7 lbf/in.2, and 180°F, respectively; at the exit the pressure is 90 lbf/in.2 The pump requires 1/15 hp of power input. Water can be modeled as an incompressible substance with constant density of 60.58 lb/ft3 and constant specific heat of 1 Btu/lb · °R. Neglecting kinetic...
Question text A water pump delivers 6 hp of shaft power when operating. The pressure differential...
Question text A water pump delivers 6 hp of shaft power when operating. The pressure differential between the outlet and the inlet of the pump is measured to be 1.2 psi when the flow rate is 10 ft3/s, and the velocity changes to 5 ft/s from 2 ft/s as the water passes through the pump. Determine the mechanical efficiency of this pump assuming the water density to be 62.4 lbm/ft3 (written in decimal form with 3 significant figures).
Problem 4.049 A pump is used to circulate hot water in a home heating system. Water...
Problem 4.049 A pump is used to circulate hot water in a home heating system. Water enters the well-insulated pump operating at steady state at a rate of 0.42 gal/min. The inlet pressure and temperature are 14.7 lbf/in., and 180°F, respectively; at the exit the pressure is 90 lbf/in. The pump requires 1/35 hp of power input. Water can be modeled as an incompressible substance with constant density of 60.58 lb/ft and constant specific heat of 1 Btu/lb OR Neglecting...
A 4-kW pump operating at steady state draws in liquid water at 100 kPa, 15?C with...
A 4-kW pump operating at steady state draws in liquid water at 100 kPa, 15?C with a mass flow rate of 4.5 kg/s and delivers water at 1 MPa pressure. Ignore the kinetic and potential energy changes from inlet to exit. Determine (a) the isentropic efficiency of the pump and (b) whether the power input rating is adequate
A water pump delivers 6 hp of shaft power when operating. The pressure differential between the...
A water pump delivers 6 hp of shaft power when operating. The pressure differential between the outlet and the inlet of the pump is measured to be 1.2 psi when the flow rate is 15 ft3/s, and the velocity doubles from 3 ft/s as the water passes through the pump. Determine the mechanical efficiency of this Dumn
A farmer is to pump water at 70'F from a river to a water storage tank nearby using a 125-ft-long...
A farmer is to pump water at 70'F from a river to a water storage tank nearby using a 125-ft-long, 5-in-diameter plastic pipe with three flanged 90 smooth bends. The water velocity near the river surface is 6 ft/s, and the pipe inlet is placed in the river normal to the flow direction of water to take advantage of the dynamic pressure. The elevation difference between the river and the free surface of the tank is 12 ft. For a...
Liquid water at 120 kPa enters a 7 kW pump where its pressure is raised to...
Liquid water at 120 kPa enters a 7 kW pump where its pressure is raised to 4.7 MPa. If the elevation difference between the exit and the inlet levels is 10 m, determine the highest mass flow rate of liquid water this pump can handle. Neglect the kinetic energy change of water, and take the specific volume of water to be 0.001 m3/kg The highest mass flow rate of liquid water is kg/s
The ECCS pump in a reactor draws water from the suppression pool, at atmospheric pressure and...
The ECCS pump in a reactor draws water from the suppression pool, at atmospheric pressure and pumps water through the low-pressure injection system into the reactor pressure vessel 15 m above the suppression pool at a pressure of 4 MPa. The pipe is 8 inches in diameter. The entrance can be considered reentrant. The total length of stainless steel pipe is 45 m, and there are 6 elbows with r/D of 4. A check valve with a loss coefficient K...
A pump is used to circulate hot water in a home heating system.
Water enters the well-insulated pump operating at steady state at a
rate of 0.42 gal/min. The inlet pressure and temperature are 14.7
lbf/in2, and 180F,
respectively; at the exit the pressure is 60 lbf/in2.
The pump requires 1/35 hp of power input. Water can be modeled as
an incompressible substance with constant density of 60.58
lb/ft3 and constant specific heat of 1 Btu/lb
R.
Neglecting kinetic and...
Problem 4.049 A pump is used to circulate hot water in a home heating system. Water enters the well-insulated pump operating at steady state at a rate of 0.42 gal/min. The inlet pressure and temperature are 14.7 lbf/in., and 180°F, respectively; at the exit the pressure is 90 lbf/in. The pump requires 1/35 hp of power input. Water can be modeled as an incompressible substance with constant density of 60.58 lb/ft and constant specific heat of 1 Btu/lb OR Neglecting...
A water pump delivers 6 hp of shaft power when operating. The pressure differential between the outlet and the inlet of the pump is measured to be 1.2 psi when the flow rate is 15 ft3/s, and the velocity doubles from 3 ft/s as the water passes through the pump. Determine the mechanical efficiency of this Dumn
A farmer is to pump water at 70'F from a river to a water storage tank nearby using a 125-ft-long, 5-in-diameter plastic pipe with three flanged 90 smooth bends. The water velocity near the river surface is 6 ft/s, and the pipe inlet is placed in the river normal to the flow direction of water to take advantage of the dynamic pressure. The elevation difference between the river and the free surface of the tank is 12 ft. For a...
Liquid water at 120 kPa enters a 7 kW pump where its pressure is raised to 4.7 MPa. If the elevation difference between the exit and the inlet levels is 10 m, determine the highest mass flow rate of liquid water this pump can handle. Neglect the kinetic energy change of water, and take the specific volume of water to be 0.001 m3/kg The highest mass flow rate of liquid water is kg/s
