(a) At 20.0 ˚C the vapour pressures of pure chloroform (C) and carbon tetrachloride (CT) are...

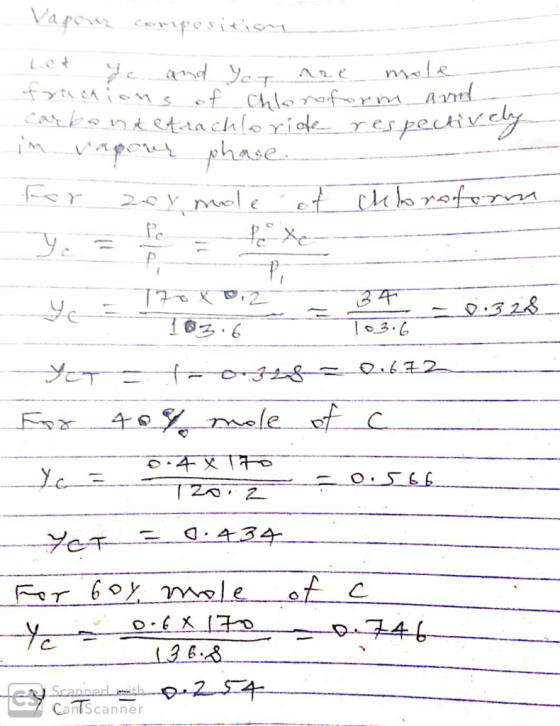

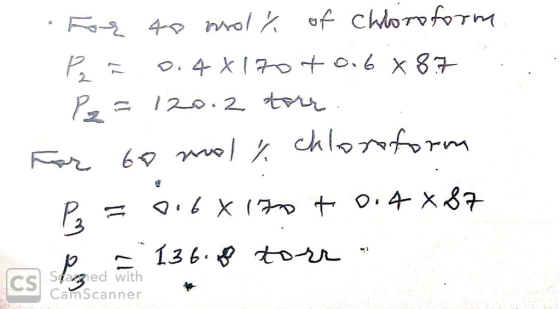

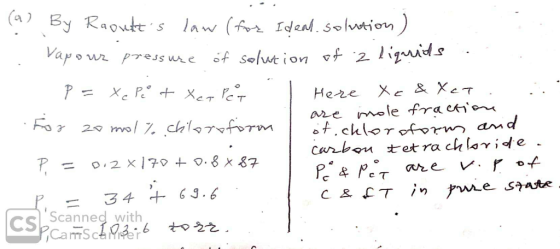

(a) At 20.0 ˚C the vapour pressures of pure chloroform (C) and carbon tetrachloride (CT) are 170 and 87 Torr, respectively, and their liquid mixtures can be assumed to behave ideally. Calculate the total pressure and the vapour composition of three liquid mixtures containing 20, 40 and 60 mol% chloroform.

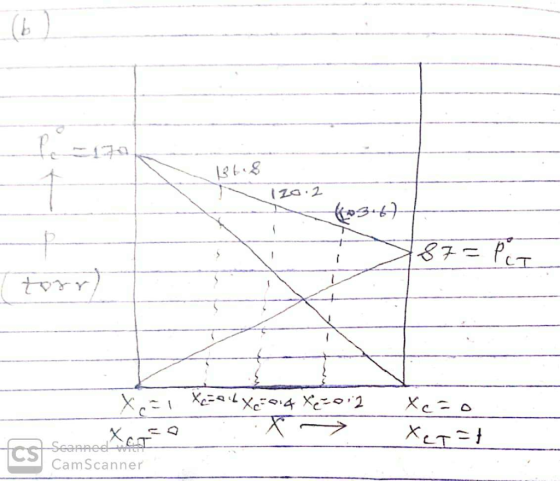

(b) Draw a reasonably accurate (i.e. to scale) P-X diagram for this mixture at 20 ˚C using the values from above.
Homework Answers
Add Answer to:
(a) At 20.0 ˚C the vapour pressures of pure chloroform (C) and
carbon tetrachloride (CT) are...
At 300 K the vapour pressure of a pure liquid A is 553 Torr, of pure...
At 300 K the vapour pressure of a pure liquid A is 553 Torr, of pure liquid B it is 380 Torr. A and B form ideal liquid mixtures. a) Calculate the vapour pressures of A and B and the total pressure above liquid mixtures which are 25, 50, and 75 mol% B. b) For a particular liquid mixture, the vapour composition is found to be 0.35 mol% A. Calculate the liquid composition in equilibrium with vapour of this composition....
At 300 K the vapour pressure of a pure liquid A is 553 Torr, of pure liquid B it is 380 Torr. A a...
At 300 K the vapour pressure of a pure liquid A is 553 Torr, of pure liquid B it is 380 Torr. A and B form ideal liquid mixtures. a) Calculate the vapour pressures of A and B and the total pressure above liquid mixtures which are 25, 50, and 75 mol% B. b) For a particular liquid mixture, the vapour composition is found to be 0.35 mol% A. Calculate the liquid composition in equilibrium with vapour of this composition....
The U.S. Food and Drug Administration lists dichloromethane (CH2Cl2) and carbon tetrachloride (CCl4) among the many...
The U.S. Food and Drug Administration lists dichloromethane (CH2Cl2) and carbon tetrachloride (CCl4) among the many cancer-causing chlorinated organic compounds. What are the partial pressures of these substances in the vapor above a mixture containing 1.80 mol of CH2Cl2 and 1.05 mol of CCl4 at 23.5°C? The vapor pressures of pure CH2Cl2 and CCl4 at 23.5°C are 352 torr and 118 torr, respectively. (Assume ideal behavior.)
1. Refer to the vapor-liquid composition curve for a benzene/toluene solution below. a) Are benze...
Need assistance with graph and pre-lab questjons
1. Refer to the vapor-liquid composition curve for a benzene/toluene solution below. a) Are benzene and toluene miscible or immiscible? b) What is the boiling point of a benzene-toluene mixture that is 20% benzene? c) What percent benzene is a benzene-toluene mixture that boils at 85°C? 110 100 95 0F-- 85 A" 80 75 0 10 20 30 40 50 60 7o 80 90 100 Molo porcont benzene 2. Refer to the Boiling...
Separating a Mixture, Recrystallization, pre-lab assignment could you also explain why you chose that substance for...
Separating a Mixture, Recrystallization, pre-lab
assignment
could you also explain why you chose that substance for the empty
spaces and question marks
EXPERIMENT 4 Pre-Lab Assignment Separating a Mixture, Recrystalliration Name Date 1. Complete the following flowchart which shows how to separate a mixture of sand, sodium chloride and acetanilide. Notice that after a separation process (a down arrow) the filtered solids are shown on the left and the filtrate (the liquid) is shown on the right. The terminal step...
Need assistance with graph and pre-lab questjons
1. Refer to the vapor-liquid composition curve for a benzene/toluene solution below. a) Are benzene and toluene miscible or immiscible? b) What is the boiling point of a benzene-toluene mixture that is 20% benzene? c) What percent benzene is a benzene-toluene mixture that boils at 85°C? 110 100 95 0F-- 85 A" 80 75 0 10 20 30 40 50 60 7o 80 90 100 Molo porcont benzene 2. Refer to the Boiling...
Separating a Mixture, Recrystallization, pre-lab
assignment
could you also explain why you chose that substance for the empty
spaces and question marks
EXPERIMENT 4 Pre-Lab Assignment Separating a Mixture, Recrystalliration Name Date 1. Complete the following flowchart which shows how to separate a mixture of sand, sodium chloride and acetanilide. Notice that after a separation process (a down arrow) the filtered solids are shown on the left and the filtrate (the liquid) is shown on the right. The terminal step...
