Sketch the asymptotes of the Bode plot magnitude and phase for each of the following open-loop transfer functions. After completing the hand sketches. verify your result using Matlab. Turn in your hand sketches and the Matlab results on the same scales.

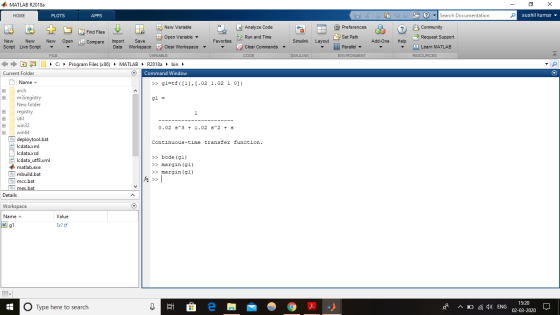

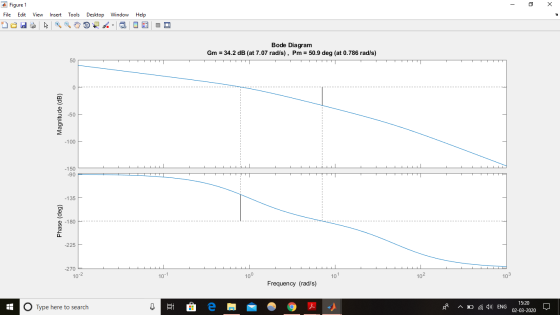

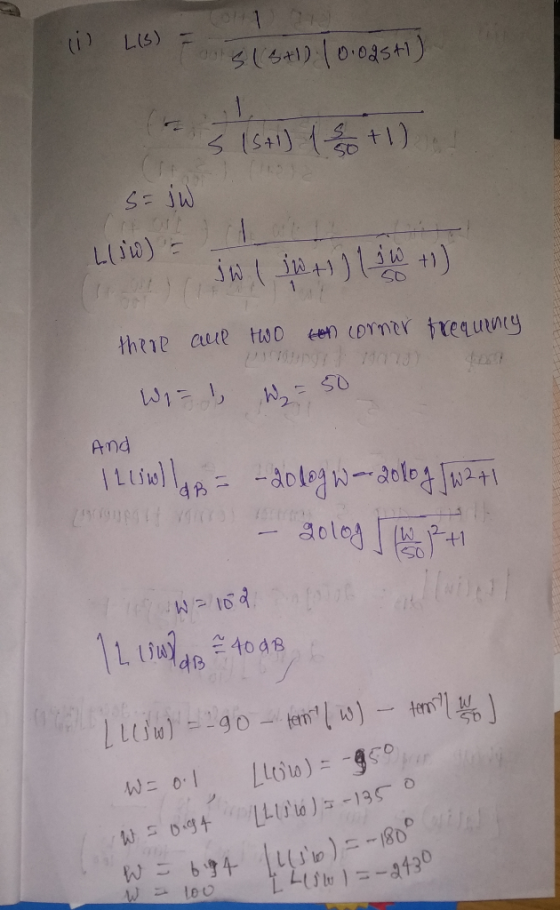

1- L(s)= 1/ s(s+1)(0.02s+1)

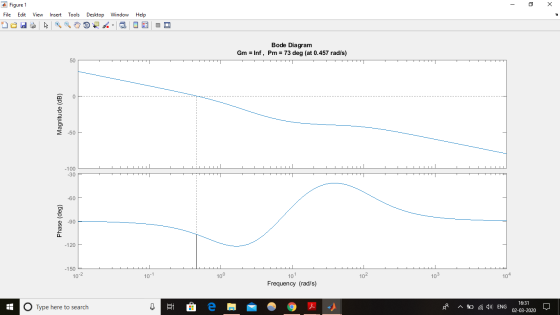

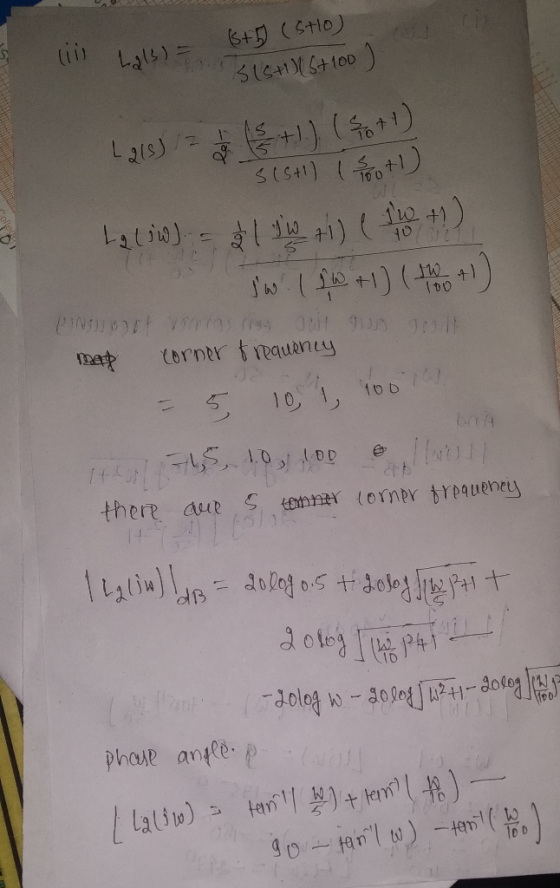

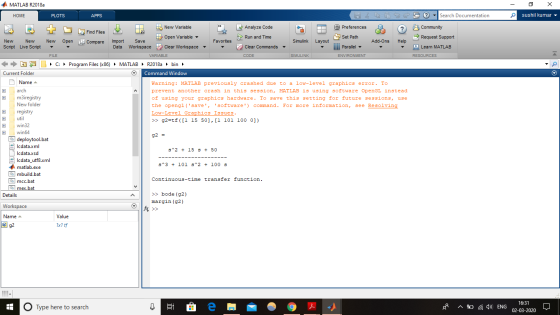

2- L(s)= (s+5)(s+10)/ s(s+1)(s+100)
