Design an op amp circuit that provides the following output: ?out = ? 1+ ? 2−...

Question

Question

Design an op amp circuit that provides the following output: ?out = ? 1+ ? 2− 20? 3

engineering Electrical-Engineering

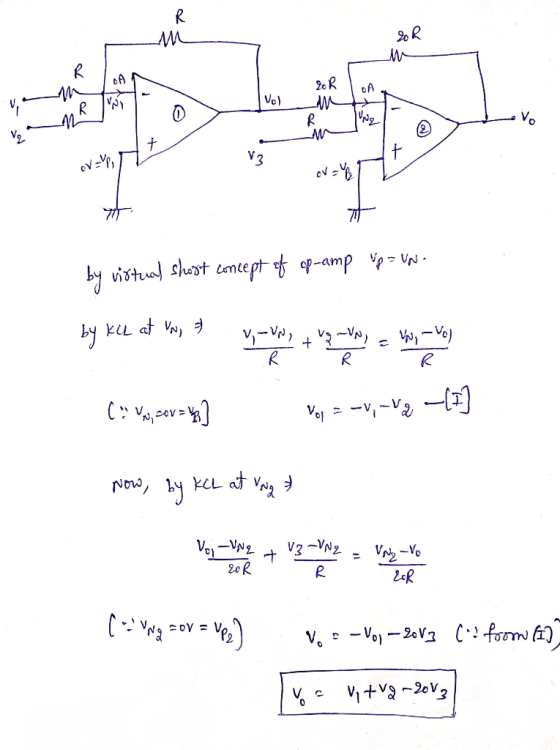

Answer 1

Answer #1

Answer 2
