A large water tank sits on the ground. It is filled to a depth of 10m....

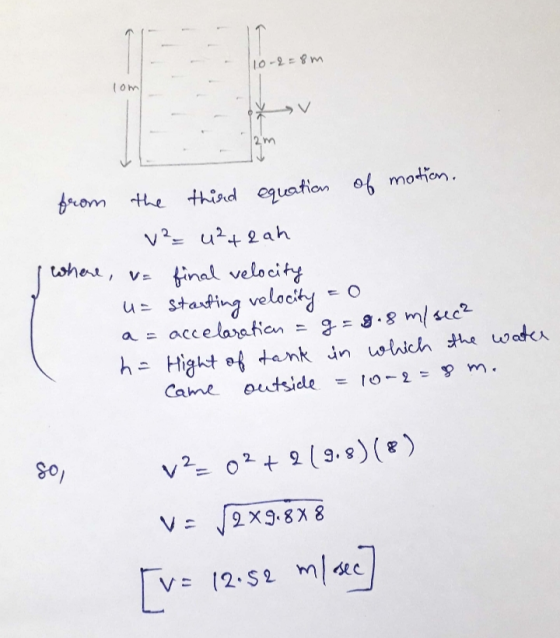

A large water tank sits on the ground. It is filled to a depth of 10m. If a small valve is opened a stream of water will shoot out horizontally at a distance of 2m above the ground. How fast is the water in this stream moving just before it reaches the ground? (HW 10-16)
Homework Answers
Add Answer to:
A large water tank sits on the ground. It is filled to a depth
of 10m....
A water tank is filled to a depth of 10m, and the bottom of the tank...
A water tank is filled to a depth of 10m, and the bottom of the tank is 20m above ground. A water-filled hose that is 2.0cm in diameter extends from the bottom of the tank to ground, but no water is flowing in this hose. The water pressure at ground level in the hose is closest to which of the following values? The density of water is 1000kg/m^3 For best answer/full points you must provide detailed, legible solution, that defines...
A large water tank is 3.10 m high and filled to the brim, the top of...
A large water tank is 3.10 m high and filled to the brim, the top of the tank open to the air. A small pipe with a faucet is attached to the side of the tank, 0.560 m above the ground. If the valve is opened, at what speed (in m/s) will water come out of the pipe?
A large water tank is 2.95 m high and filled to the brim, the top of...
A large water tank is 2.95 m high and filled to the brim, the top of the tank open to the air. A small pipe with a faucet is attached to the side of the tank, 0.740 m above the ground. If the valve is opened, at what speed (in m/s) will water come out of the pipe? m/s
53. A large tank is filled with water to a depth of 15 m. A spout...
53. A large tank is filled with water to a depth of 15 m. A spout located 10.0 m above the bottom of the tank is then opened as shown in the drawing. With what speed will water emerge from the spout? please show work.
A pressurized water tank contains water with a mass density of 62.1 lbm/ft3. The water depth...
A pressurized water tank contains water with a mass density of 62.1 lbm/ft3. The water depth is 10 feet (above ground level) and the tank is pressurized to 28 psia. The tank outlet at ground level is a 4 inch diameter pipe with a closed valve. Atmospheric pressure is at 14.5 psia. If the valve on the 4 inch pipe is opened all the way what will be the initial water flow rate out of the pipe in ft3/s?
There is a large tank, with the (1) open to atmosphere, that is filled with water...
There is a large tank, with the (1) open to atmosphere, that is filled with water to a height of h, from the center of the the outlet pipe (2). The valve on the outlet pipe is opened, allowing the water to flow out. Assume (2) is exposed to atmospheric pressure. Using the Bernoulli equation, derive the Toricelli equation, i.e. the expression for the outlet velocity as a function of height. Water = 0
A tank is filled with water to a height H, 22 m. A hole is punched...
A tank is filled with water to a height H, 22 m. A hole is punched in one of the walls at a depth h, 7.04 m, below the water surface (see the figure). What is the distance x from the base of the tank to the point at which the resulting stream strikes the floor? Could a hole be punched at another depth to produce a second stream that would have the same range? If so, at what depth?...
14. A jet of water squirts out horizontally from a hole near the bottom of the very large tank in the figure. If the height, h, of the water level in the tank is 0.3 m, find the angle that the s...
14. A jet of water squirts out horizontally from a hole near the bottom of the very large tank in the figure. If the height, h, of the water level in the tank is 0.3 m, find the angle that the stream makes with the vertical as it strikes the ground. (The horizontal distance frorm the bottom of the cylindrical stand to the splash point is unknown.)
14. A jet of water squirts out horizontally from a hole near the...
A jet of water squirts out horizontally from a hole near the bottom of the tank...
A jet of water squirts out horizontally from a hole near the bottom
of the tank shown in the figure. If the hole has a diameter of 4.00
mm, what is the height h of the water level in the
tank?
A tank of water sits upright on a surface that is elevated above
the ground. The height of the elevated surface above the ground is
labeled 1.00 m. The height of the water from the bottom of the tank...
A tank of water sits at the edge of a table of height 1.5 m. The...
A tank of water sits at the edge of a table of height 1.5 m. The water level 40 cm in the tank. The tank springs a very small leak at its base and water sprays out horizontally. At what distance from the edge of the table does the water hit the floor ? (Assume the tank is open to the air at the top.) Answer is 1.55m Would like to see all work, thanks!
There is a large tank, with the (1) open to atmosphere, that is filled with water to a height of h, from the center of the the outlet pipe (2). The valve on the outlet pipe is opened, allowing the water to flow out. Assume (2) is exposed to atmospheric pressure. Using the Bernoulli equation, derive the Toricelli equation, i.e. the expression for the outlet velocity as a function of height. Water = 0
14. A jet of water squirts out horizontally from a hole near the bottom of the very large tank in the figure. If the height, h, of the water level in the tank is 0.3 m, find the angle that the stream makes with the vertical as it strikes the ground. (The horizontal distance frorm the bottom of the cylindrical stand to the splash point is unknown.)
14. A jet of water squirts out horizontally from a hole near the...
A jet of water squirts out horizontally from a hole near the bottom
of the tank shown in the figure. If the hole has a diameter of 4.00
mm, what is the height h of the water level in the
tank?
A tank of water sits upright on a surface that is elevated above
the ground. The height of the elevated surface above the ground is
labeled 1.00 m. The height of the water from the bottom of the tank...
