Implement a circuit that determines the number of 0s in a 12 bit unsigned number. The...

Question

Question

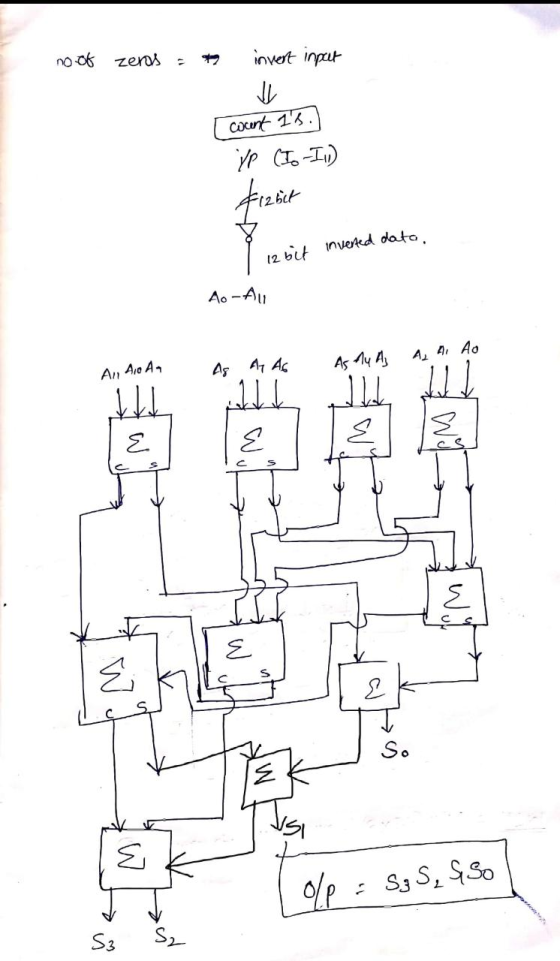

Implement a circuit that determines the number of 0s in a 12 bit unsigned number.

The circuit should have a single 4-bit output pin and the input is a 12-bit input pin.

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

It should have no inputs and four input wires consolidated by a splitter into one 4-bit...

It should have no inputs and four input wires consolidated by a splitter into one 4-bit output pin. The outputs should be thought of as four digits of a binary number. Your circuit should initially output the number 0 (four 0s in a row). Your circuit should cycle through the first six nonnegative multiples of three (0, 3, 6, ... 12, 15, 0, 3, ...). Each clock cycle, your circuit should output the next number in this sequence. part 2...
Use Proteus to design a circuit for unsigned integers, which can implement the 4 bit binary...

Use Proteus to design a circuit for unsigned integers, which can implement the 4 bit binary combinational multiplier.
Design a combinational circuit that adds 1 to 3-bit unsigned binary number and produces an unsigned...

Design a combinational circuit that adds 1 to 3-bit unsigned binary number and produces an unsigned binary result. Do the following: (1) determine the number of inputs/outputs, (2) write the truth table, (3) simplify the output functions by using maps and (4) draw the logic diagram by using AND OR and NOT gates. Show the truth table, the map, and the logic diagram. Do NOT use adders.

The circuit below takes as input a four bit unsigned binary number A A2 A Ao and generates a single output F. Design th...

The circuit below takes as input a four bit unsigned binary number A A2 A Ao and generates a single output F. Design the circuit where F will only be true if the decimal value of the input mod 3 is equal to 1 (F is true if the input mod 3- 1; F will be false otherwise). To implement F, you may use only the 8 x 1 multiplexor given below. You may not use any additional gates (such...
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit...

In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit data inputs (A and B), a control line (add /sub), a 4-bit sum output (S), a carry-out bit (Cout), and an overflow flag. You need two VHDL files (fulladd.vhd) and (hybrid.vhd) to implement the design. VHDL code, fulladd.vhd, will implement a single-bit full adder. The VHDL file, hybrid.vhd, will create four instances of the single-bit full adder. Four XOR gates will be needed to...
Draw the circuit for a combinational logic circuit that, given an 8-bit unsigned binary number N = N7N6N5N4N3N2N1N0, the...

Draw the circuit for a combinational logic circuit that, given an 8-bit unsigned binary number N = N7N6N5N4N3N2N1N0, the output for F is the signed 1's complement representation of N.

part1 It should have no inputs and four input wires consolidated by a splitter into one...

part1 It should have no inputs and four input wires consolidated by a splitter into one 4-bit output pin. The outputs should be thought of as four digits of a binary number. Your circuit should initially output the number 0 (four 0s in a row). Your circuit should cycle through the first six nonnegative multiples of three (0, 3, 6, ... 12, 15, 0, 3, ...). Each clock cycle, your circuit should output the next number in this sequence. part...
Design a combinational circuit that accepts a 2-bit number and generates a 4-bit binary number output...

Design a combinational circuit that accepts a 2-bit number and generates a 4-bit binary number output equal to the square of the input number. Use Decoder and any other external gates as necessary to implement your design. Draw the logic diagram and clearly label all input and output lines.
Design a combinational circuit which compares two 4-bit unsigned numbers A and B. The circuit should...

Design a combinational circuit which compares two 4-bit unsigned numbers A and B. The circuit should have one output X such that X = 1 whenever A>B and X = 0 whenever A?B. You may use any MSI modules as well as any other gates.

Problem 3 [10 points a) (5 points) Construct a circuit that takes as input a 3-bit number X-XXXo ...

part c Problem 3 [10 points a) (5 points) Construct a circuit that takes as input a 3-bit number X-XXXo and increments it by one. L.e. if the input is 101 the output should be 110. Use only half adders. b) Construct a circuit that takes as input a 3-bit number X-XXxo and decrements it by one 1. (5 points) Show the truth table of the circuit. Then use a decoder and additional gates to implement it. So Ys Y2...
