A signal coming into the oscilloscope is a sine wave. Amplitude = 2 V, DC Offset...

A signal coming into the oscilloscope is a sine wave. Amplitude = 2 V, DC Offset = -1 V, Frequency = 10 Hz. Sketch the oscilloscope display. Select appropriate horizontal and vertical scales and note on the sketch. Label axes appropriately and indicate the 0V level on the sketch.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

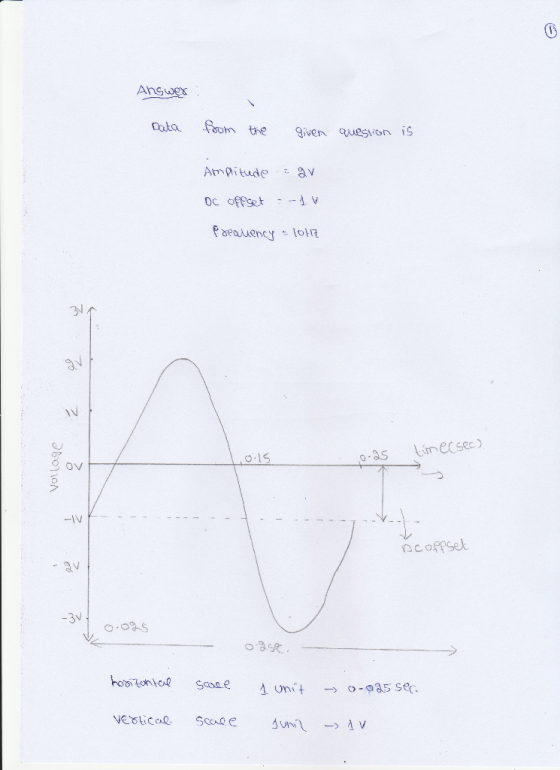

Answer #1

0 0
