A single circular loop of wire with radius R carries a large current I, which constrains...

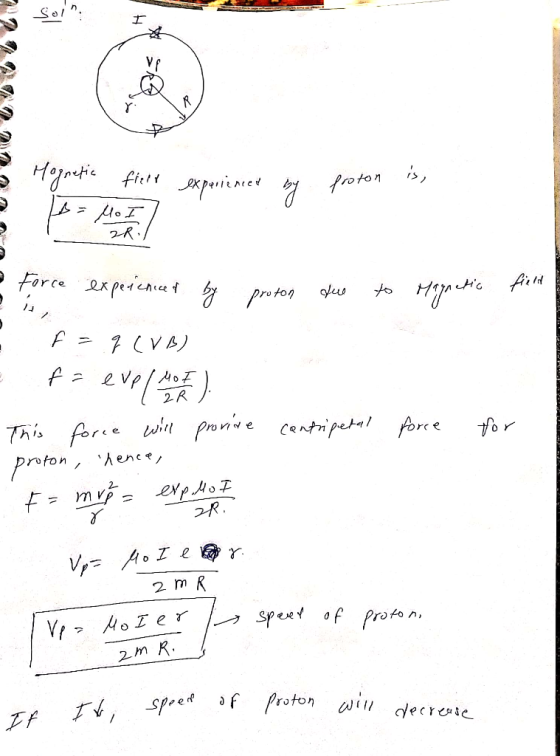

A single circular loop of wire with radius R carries a large current I, which constrains a proton of mass m and charge e to travel in a small circle of radius r at constant speed around the center of the loop, in the plane of the loop. The orbit radius r is much smaller than the loop radius R. What is the speed fo the proton in terms of the known quantities I, R, r, m, and e (and what approximations, if any, must be made)? If the current was to decrease slowly, would the proton speed up or slow down?
Homework Answers
