A 30 hp 460V 3-phase motor requires 35 amps at full load. The power factor is...

Question

Question

A 30 hp 460V 3-phase motor requires 35 amps at full load. The power factor is 0.86 Determine the efficiency of the motor.

engineering Electrical-Engineering

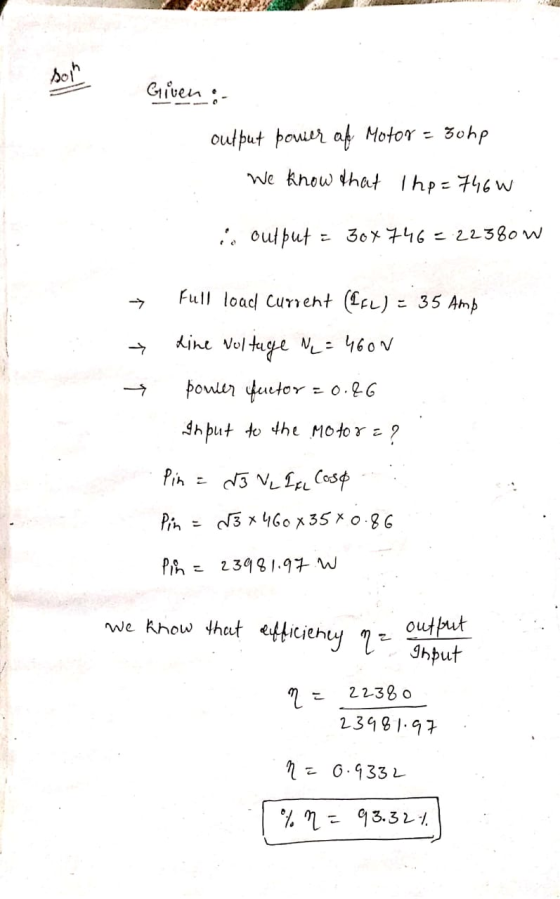

Answer 1

Answer #1

Answer 2
