Four 4.0 x10-5 C charges are arranged in a square with sides of 25 cm. If...

Four 4.0 x10-5 C charges are arranged in a square with sides of 25 cm. If three of the charges are positive and the other negative, what is the voltage at the center of the square (assuming V=0 at an infinite distance from the charges)? How much energy must be input (or released) to bring a negative 2.0 x10-6C charge from a far distance to the center of the square?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

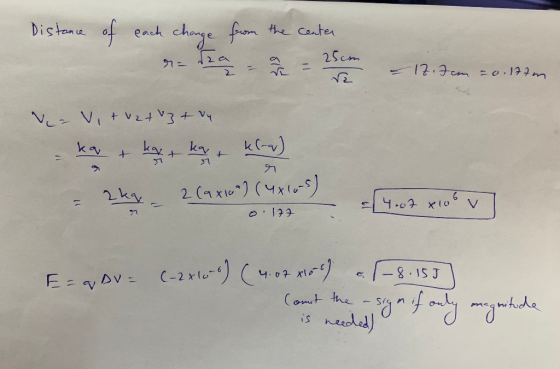

Answer #1

0 0
Add a comment
