11. An electric heater carries a current of 20 A when operating at a voltage drop...

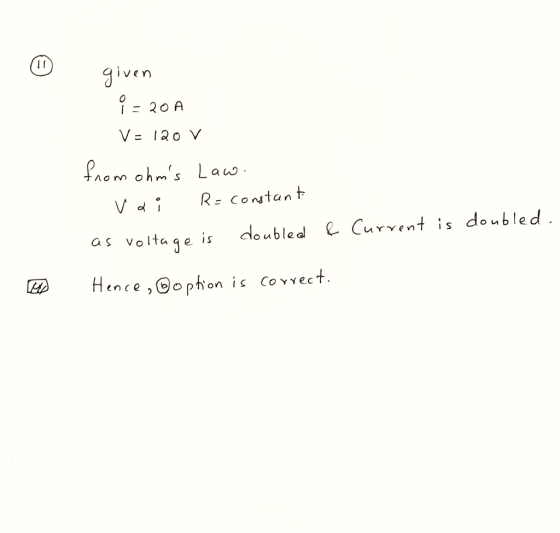

11. An electric heater carries a current of 20 A when operating
at a voltage drop of 120 V. According to Ohm’s
law, if I double the voltage drop across the heater, what happens
to the current passing through it?
a. Nothing, as the current passing through an electrical component
is independent of the voltage drop.
b. It doubles in value to 40 A
c. It halves in value to 10 A
d. It rises by a factor of 4 to 80 A
e. It drops by a factor of 4 to 5 A
Homework Answers
