A 10,000 uF capacitor is excited by a voltage source of 20 Cos (2,000t + 30o)....

A 10,000 uF capacitor is excited by a voltage source of 20 Cos (2,000t + 30o).
Express the value of impedance ZC of the capacitor in polar (exponential) form.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

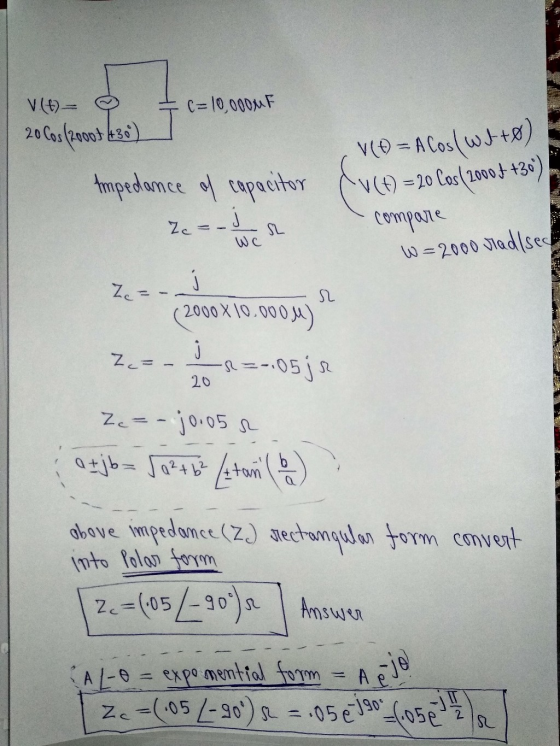

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 10,000 uF capacitor is excited by a voltage source of 20 Cos (2,000t + 30o)....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 10,000 uF capacitor is excited by a voltage source of 20 Cos (2,000t + 30o)....

    A 10,000 uF capacitor is excited by a voltage source of 20 Cos (2,000t + 30o). Express the value of impedance ZC of the capacitor in POLAR (exponential) form. Formula ____     Magnitude ____     Phase Sign: Positive/Negative ____     Phase Magnitude ____

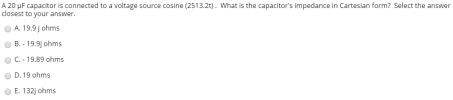

  • A 20 uF capacitor is connected to a voltage source cosine (2513.2t). What is the capacitor's...
