There is a parallel plate capacitor with a separation of 0.020 m and an area of...
There is a parallel plate capacitor with a separation of 0.020 m and an area of 0.40 m^2. The charge magnitude is 3.6x10^-6 C.
What is the electric field?
What would the electric potential difference (Va-Vb) be between the (point a) negative plate and a point halfway between (point b)?
If an electron is moved between points a and b how much does the electron's potential energy change? Also how much work is done?

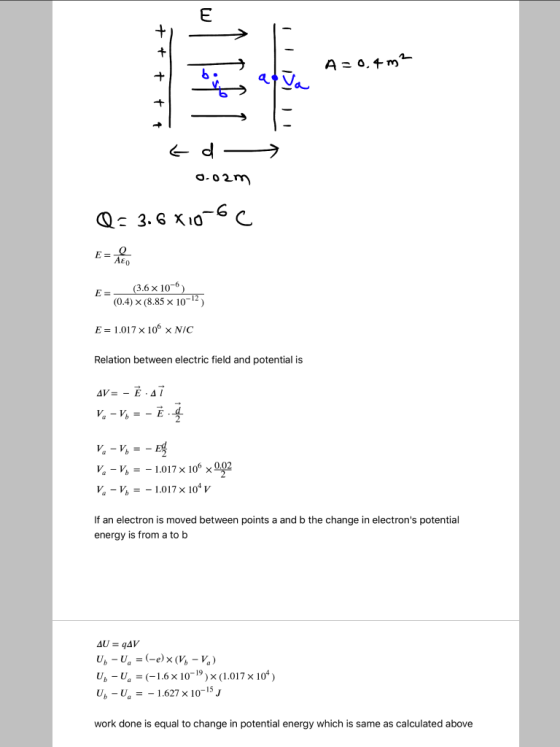

Homework Answers
