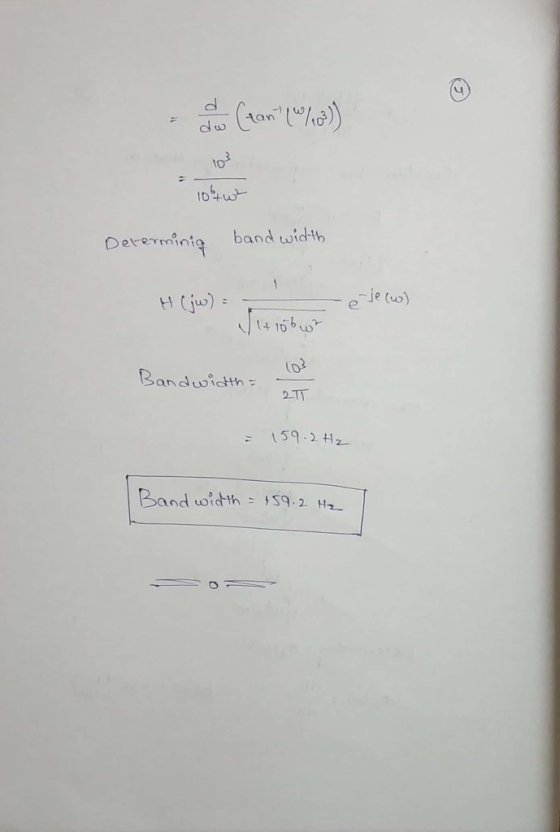

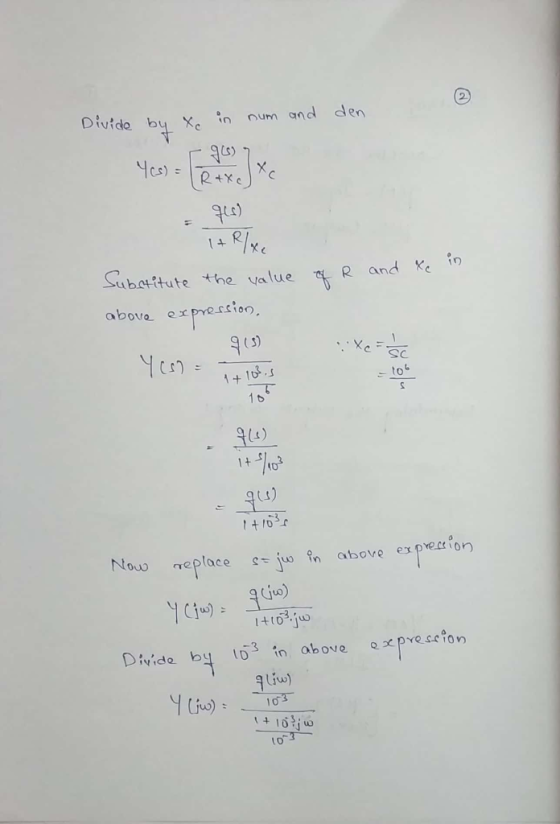

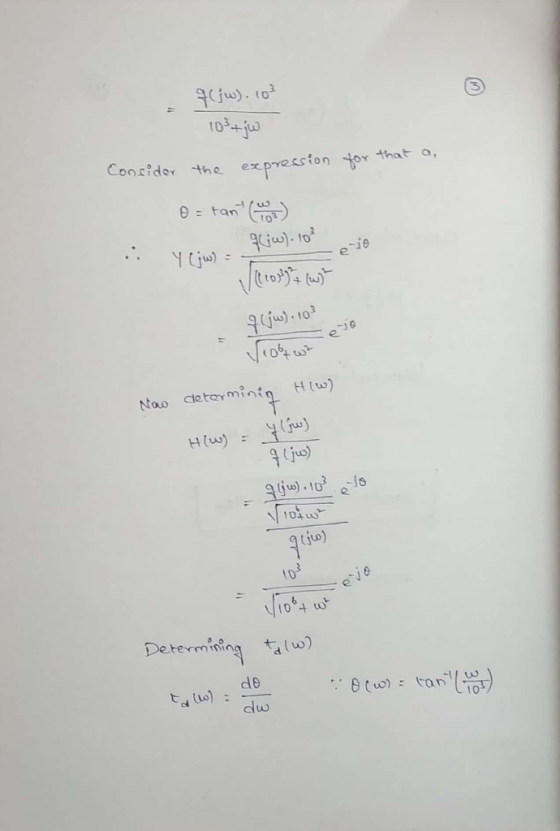

If g(t) and y(t) are the input and the output, respectively, of a simple RC low-pass filter (Fig....
there is no img...
Que 3 A bandpass signal g(t) of bandwidth B Hz centered at f 104 Hz is passed through the RC filter in Example 3.16 (Fig. 3.26a) with RC = 10-3. If over the passband, the variation of less than 2% in amplitude response and less than 1 % in time delay is considered to be distortionless transmission, determine what is the maximum allowable value of bandwidth B in order for g(t) to be transmitted through this...
1) Design a low-pass RC device with the following specifications: a) Input x(t) and output y(t) b) Bandwidth which is defined as the range of frequencies (from 0 Hz to ??, the − 3dB point ) allowed to pass through without significant attenuation = 100Hz c) Static gain = 14dB d) The system has −20 dB/decade rolloff at high frequencies (thus first-order LP filter) Assume that you have one and only one resistor value available to you, and that resistance is...
Consider the low pass filter RC circuit where Ri+ E E(t) The rise time t, is defined as the time required for a unit step response to go from 10% to 90% of its final value. Show that 0.35 3dB where f3dB-the 3dB bandwidth (in Hz) of the filter 2TTRC
3.112. Design a simple low-pass RC filter to remove 90% of the amplitude of 60 Hz noise from a DC signal. A 0.1 microfarad capacitor is to be used.
The following periodic signal is input to an ideal low pass filter of bandwidth 25 KHz. 1. x(t) 2 a) Determine the average power of the signal x(t). b) If T 0.1 ms, give the output of the filter as a function of time, y(t) e) Determine the average power of the signal y(t) d) Determine the bandwidth of the signal y(), considered as a baseband signal. e) Now assume that the signal x() (with T-0.1 ms) is instead input...
For the low-pass filter circuit shown in Fig 2 200mH 3k Ω out in Fig 2 (i) (ii) (iii) Write an expression for the transfer function of the circuit State the value of the dc gain of the filter circuit in dB Calculate the cutoff frequency of the filter b. Sketch the frequency response of the voltage gain and phase shift for the filter shown in Fig 2. Show all the values and required information in both graphs Magnitude Frequency...
Practice Problems- Basic circuits- (MENG3531) 1. For a low-pass filter with R=1k and C=0.01uF, find time constant (t), rise time (tr), corner frequency (@c) and bandwidth. Sketch time and frequency response curves for the RC circuit and show the calculated parameters. 2. If the Ris changed to 10 k and C is reduced to 0.005 uF, find the corresponding values of time constant (T), rise time (tr), corner frequency (oc). Sketch time and frequency response curves for the RC circuit...
Please answer questions step by step solution in
details with clear handwriting, please.
2 Using the time shifting properties, prove the following: g(t) sin - wo) - G(w+w.)] Ig(t +T) - g(1 - 1)]=G(w)sin Tw Using the letter result, find the Fourier transform of the following signal: 2 3 3 4 Determine the maximum bandwidth of signal that can be transmitted through low pass RC filter as shown in figure where R=1000, and C= 109, If over this bandwidth, the...
1- The signal x(t) is applied to a low pass filter with cutoff frequency equal to 1; write a MATLAB code to find and plot X(f), H(f) and the output of the filter Y(f), where x(t) is given below: x(t) -0.5 0.5 2- Apply the signal x(t) in the previous example to a HPF, BPF and BSF and draw the output signal Y(f). 3- Find and Plot the transfer function of BSF.
10. An input signal x(t) is processed by a filter with an amplitude | H(f) | and phase θ(f) response given below H(f) 90 70 50 30 10 10 θ(f) 25 -50 70 05 35 -3-252 -15105 0 05 115 2 25 3 35 -35-3-25-2-15-1-05 0 0.5 15 2 25 35 frequency (kHz) frequency (kHz) a) For x,(t)-2cos(22500t) find output signal ya(t) b) For x,(t) 4cos(27750t) find output signal yb(t) c) For x,(t)=2cos(2π500t) +4cos(2π750t) find output signal ye(t) d) For...
