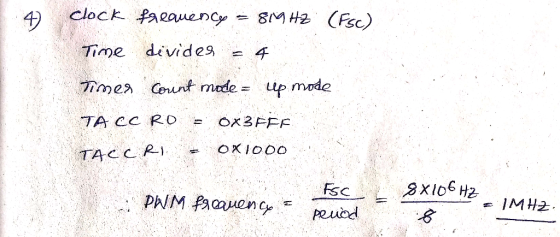

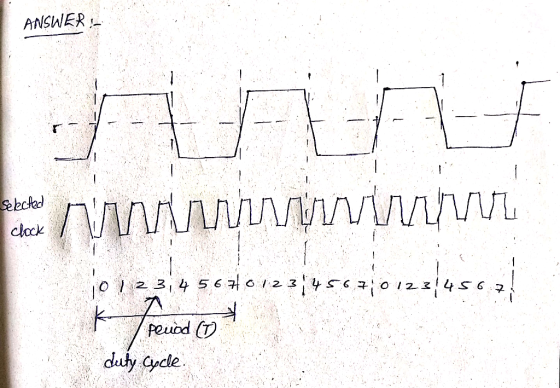

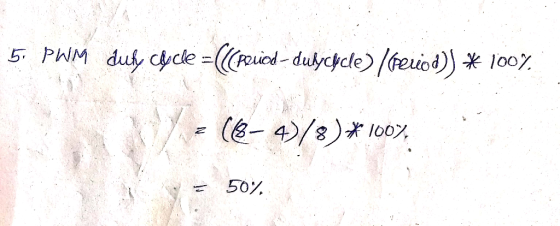

4) Assuming that the PWM function is setup properly, what is the PWM frequency using the followin...
Does the Set-Up lines 54-58 require an interrupt service
routine?
No
What is the duty cycle after initialization?
100% duty cycle
What type of waveform does OUTMOD_7 produce?
Reset/set waveform
Which mode is used with the counter?
Count up
Which clock signal is used with the counter?
CCR0, CCR
Which Timer is used in lines 54-58?
TA0X
I tried my best to answer them but tbh i could use the help to
understand even if they are right.
INO NTERRUFT...
Write an AVR assembly code that generates a periodic square wave with 4 kHz frequency with 50% duty cycle on the OC0 pin using the Timer/Counter0 CTC mode. Assume a system clock frequency of 16 MHz. Use the follow skeleton code: ; AVR Assembly code - CTC mode with 4 kHz and 50% duty cycle .INCLUDE "m128def.inc" .DEF mpr = R16 ; General purpose register .ORG $0000 ; Reset and Power On interrupt RJMP INITIALIZE ; Jump to initialization .ORG...
Clock Divider
can i get some simple explanation ( what I'm suppose to
understand from this)
my lecturer explains it but I honestly don't understand what
statements he's trying to make
my understanding :
there's a frequency input of 512 Mhz, since we know 8 bit
counter can count up to 256, it will do it once before it rolls
overload (???)
can someone please clarify and point out the important facts
that i should be undertanding
please and...
Clock Divider
can i get some simple explanation ( what I'm suppose to
understand from this)
my lecturer explains it but I honestly don't understand what
statements he's trying to make
my understanding :
there's a frequency input of 512 Mhz, since we know 8 bit
counter can count up to 256, it will do it once before it rolls
overload (???)
can someone please clarify and point out the important facts
that i should be undertanding
please and...
A)What is the maximum delay that can generated by an 8 bit Timer with a prescale divider value of 0 and a system clock frequency of 16 MHz? B) In the HCS12, port T is a bidirectional port. Write a short segment of code (C and Assembly) that illustrates how to initialize port T so that bits 7-4 may be used as outputs and bits 3-0 may be used as inputs: C)If you are using an output compare with interrupts...
Using the template provided in the lab details section, formulate a
program for the Arduino to generate a PWM signal duty cycles
between 0% and 100% at intervals of 10% where a button will
increment the PWM signal. Remember the RC is 10 milliseconds.
Provide a copy of the final code and explain how it works.
Arduino PWM Example int Pin = 9; void setup() { pinMode (Pin, OUTPUT); } void loop() { analogWrite (Pin, 127); // Generate 50% duty...
What is the frequeney o f2)? What is the duty cycle of the wav delay of 10 ns, what is the waveform on Q2. in terms of the clock frequency (e. f the waveform on Q27 If cach gate has a propagation e maximun delay to a valid count, and at what count Freure 26 27. Use the circuit of Figure 27 to answer these questions. asynchronous? Should CTEN be HI or LO so that the counter is operational? What...
For the 555 timer (square wave generator) shown in figure 6, assuming the values Vec . 5 v, C-0.1 μF, C'-0.01 μF, Ra 4.7 ko, Rb-10 ΚΩ, answer the following a8). a. Plot the output waveform at pin3 b. Find the frequency of the output signal c. Plot the waveform at pin6 d. Find the duty Cycle. 8 4 Figure 6 Page 5
For the 555 timer (square wave generator) shown in figure 6, assuming the values Vec . 5...
Problem 31: (34 points) 1. (10 points) A pulse width modulated (PWM) signal fPwM(t) in Figure 2. The symbol D represents a duty cycle, a number between zero and one. Determine the compact trigonometric Fourier series coefficients (Co C,11 %) of the signal f(t). 2. (10 points) One use of PWM is to generate variable DC voltages. While the PWM signal is not DC, you should be able to see from your results in part 1 that it hss a...
Question 3 For the FM trannsmitter using PLL shown, what is the sensitivity of the block labeled "varactor" in kHz/V? fc = 5 MHz 0 - 20kHz 50 MHz 8 = *? kHz Antenna FM AMP Audio In IkHz Varactor +2 Phase Detector amp VCO ANN Frequency divider ??? 2 V Frequency divider A
