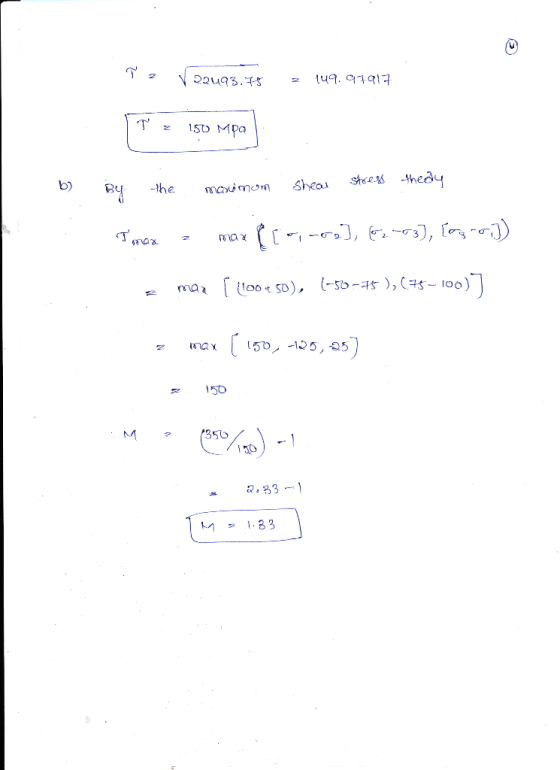

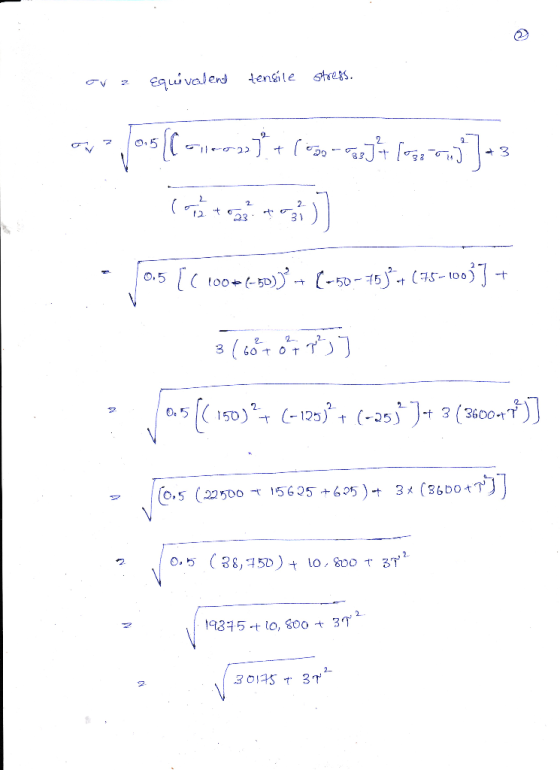

energy theory of failure. b. For the value of τ found in part (a), what is the margin of safety according to the maximum shear stress theory of failure?
Homework Answers
Add Answer to:

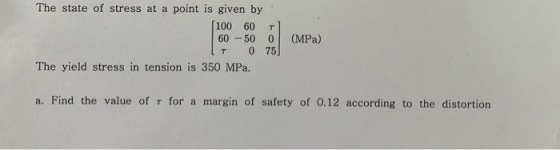

The state of stress at a point is given by [100 60 T 60 -50 0 (MPa) T 0 75 The yield stress in te...
"For thestatic plane-stress state: x = 20 MPa,y = 100 MPa,xy = 20 MPa clockwise, assuming...
"For thestatic plane-stress state: x = 20 MPa,y = 100 MPa,xy = 20 MPa clockwise, assuming the yield stress of the material is 190 MPa,a. Draw the 3D Mohr’s circles to determine the maximum shear stress, and use the maximum shear stress criterion to determine the safety factor n. b. Use the Distortion Energy criterion to determine the safety factor n. "
A) A ductile hot-rolled steel bar has yield strength in tension and compression of 400 MPa...
A) A ductile hot-rolled steel bar has yield strength in tension and compression of 400 MPa Define Maximum shear stress, and Maximum normal stress for the following stress distribution: ?,-200 Mpa and ?,-200 Mpa, and Txysl 00 Mpa (All the other stresses are set to zero). safety factor using distortion energy theory, Maximum Normal stress theory, and maximum shear stress theory B) For the above material and stress distribution, what is the
Draw the not-yielding envelope of MSS and DE theory, and then show all the load lines....
Draw the not-yielding envelope of MSS and DE theory, and then
show all the load lines. Please show the yield strength data in
your graph along with other data. You need to use free-hand-sketch
to draw the DE based envelope.
A ductile hot-rolled steel bar has a minimum yield strength in tension and compression of 350 MPa Using the distortion-energy and maximum-shear-stress theories determine the factors of safety for the following plane stress states (a) 100 MPa, a, = 100...
Chapter 15, Reserve Problem 150 The stresses on the surface of a hard bronze component are...
Chapter 15, Reserve Problem 150 The stresses on the surface of a hard bronze component are shown. The yield strength of the bronze is Oy = 314 MPa. Assume Sy = 135 MPa and Sxy = 159 MPa. (a) What is the factor of safety predicted by the maximum-shear-stress theory of failure for the stress state shown? According to this theory, does the component fail? (b) What is the value of the Mises equivalent stress for the given state of...
A spherical shell 2.5 m diameter and 4 mm thick, is subjected to an internal pressure...
A spherical shell 2.5 m diameter and 4 mm thick, is subjected to an internal pressure 'p'. Suggest the maximum value of the internal pressure, if the failure of the shell is to be prevented according to the following theories of elastic failure: (a) Maximum shear stress theory (b) Maximum distortion energy theory The yield point of the material of the shell in simple tension is 280 MPa and the Poisson’s ratio is 0.3. Assume the factor of safety to...
please solve soon A machine element is loaded such that stress at a point are o1...
please solve soon
A machine element is loaded such that stress at a point are o1 20 kpsi , 02 = 0, and ga = -15 kpsi. The material has minimum yield strength in tension and compression of 60 kpsi. Determine the factor of safety using, a. Distortion-energy theory of failure- analytical approach b.Distortion-energy theory of failure- graphical approach 2 18* 12*
A machine element is loaded such that stress at a point are o1 20 kpsi , 02 =...
Determine the required diameter of a steel transmission shaft 10 m in length and of yield...
Determine the required diameter of a steel transmission shaft 10 m in length and of yield strength 350 MPa in order to resist a torque of up to 500 N-m. The shaft is supported by frictionless bearings at its ends. Design the shaft with a factor of safety of 1.5 according to (a) the maximum shear stress theory and (b) the maximum distortion energy theory
Problem 1 A thin-walled pressure vessel of mean radius R 100 mm and thickness t (R) is subjected to cyclic internal pressure p in the range -3 MPa p7 MPa. Using Soderberg's relation with maxim...
Problem 1 A thin-walled pressure vessel of mean radius R 100 mm and thickness t (R) is subjected to cyclic internal pressure p in the range -3 MPa p7 MPa. Using Soderberg's relation with maximum distortional strain energy theory, and safety factor of 2.6 determine the number of cycles to failure ift-5 mm Assume ơy(yield stress)-350 MPa, NY (Number of cycles to yield)-10, ơ (endurance stress)-290 MPa, Ne (number ofcycles associated with endurance stress)-10
Problem 1 A thin-walled pressure vessel...
PROBLEM 7.82 - 100 MPa Solve Prob. 7.81, using the maximum-shearing-stress criterion. PROBLEM 7.81 The state...
PROBLEM 7.82 - 100 MPa Solve Prob. 7.81, using the maximum-shearing-stress criterion. PROBLEM 7.81 The state of plane stress shown occurs in a machine component made of a steel with oy = 325 MPa. Using the maximum-distortion-energy criterion, determine whether yield will occur when (a) o = 200 MPa, (b) o = 240 MPa, (C) 00 = 280 MPa. If yield does not occur, determine the corresponding factor of safety.
Stress Analysis 3. A 20-mm diameter rod made ofa ductile material with a yield strength of...
Stress Analysis
3. A 20-mm diameter rod made ofa ductile material with a yield strength of 350 MPa is subjected to torque of 100 N.m and a bending moment of 150 N.m. An axial force is then gradually applied. Determine the value of force when the rod begins to yield. Solve the problem two ways using the (a) Tresca theory (Maximum shearing stress theory) and (b) von Mises theory (Maximum distortion energy theory) [12+12 points
3. A 20-mm diameter rod...
A) A ductile hot-rolled steel bar has yield strength in tension and compression of 400 MPa Define Maximum shear stress, and Maximum normal stress for the following stress distribution: ?,-200 Mpa and ?,-200 Mpa, and Txysl 00 Mpa (All the other stresses are set to zero). safety factor using distortion energy theory, Maximum Normal stress theory, and maximum shear stress theory B) For the above material and stress distribution, what is the
Draw the not-yielding envelope of MSS and DE theory, and then
show all the load lines. Please show the yield strength data in
your graph along with other data. You need to use free-hand-sketch
to draw the DE based envelope.
A ductile hot-rolled steel bar has a minimum yield strength in tension and compression of 350 MPa Using the distortion-energy and maximum-shear-stress theories determine the factors of safety for the following plane stress states (a) 100 MPa, a, = 100...
Chapter 15, Reserve Problem 150 The stresses on the surface of a hard bronze component are shown. The yield strength of the bronze is Oy = 314 MPa. Assume Sy = 135 MPa and Sxy = 159 MPa. (a) What is the factor of safety predicted by the maximum-shear-stress theory of failure for the stress state shown? According to this theory, does the component fail? (b) What is the value of the Mises equivalent stress for the given state of...
please solve soon
A machine element is loaded such that stress at a point are o1 20 kpsi , 02 = 0, and ga = -15 kpsi. The material has minimum yield strength in tension and compression of 60 kpsi. Determine the factor of safety using, a. Distortion-energy theory of failure- analytical approach b.Distortion-energy theory of failure- graphical approach 2 18* 12*
A machine element is loaded such that stress at a point are o1 20 kpsi , 02 =...
Determine the required diameter of a steel transmission shaft 10 m in length and of yield strength 350 MPa in order to resist a torque of up to 500 N-m. The shaft is supported by frictionless bearings at its ends. Design the shaft with a factor of safety of 1.5 according to (a) the maximum shear stress theory and (b) the maximum distortion energy theory
Problem 1 A thin-walled pressure vessel of mean radius R 100 mm and thickness t (R) is subjected to cyclic internal pressure p in the range -3 MPa p7 MPa. Using Soderberg's relation with maximum distortional strain energy theory, and safety factor of 2.6 determine the number of cycles to failure ift-5 mm Assume ơy(yield stress)-350 MPa, NY (Number of cycles to yield)-10, ơ (endurance stress)-290 MPa, Ne (number ofcycles associated with endurance stress)-10
Problem 1 A thin-walled pressure vessel...
PROBLEM 7.82 - 100 MPa Solve Prob. 7.81, using the maximum-shearing-stress criterion. PROBLEM 7.81 The state of plane stress shown occurs in a machine component made of a steel with oy = 325 MPa. Using the maximum-distortion-energy criterion, determine whether yield will occur when (a) o = 200 MPa, (b) o = 240 MPa, (C) 00 = 280 MPa. If yield does not occur, determine the corresponding factor of safety.
Stress Analysis
3. A 20-mm diameter rod made ofa ductile material with a yield strength of 350 MPa is subjected to torque of 100 N.m and a bending moment of 150 N.m. An axial force is then gradually applied. Determine the value of force when the rod begins to yield. Solve the problem two ways using the (a) Tresca theory (Maximum shearing stress theory) and (b) von Mises theory (Maximum distortion energy theory) [12+12 points
3. A 20-mm diameter rod...
