A spherical shell 2.5 m diameter and 4 mm thick, is subjected to an internal pressure...
Homework Answers

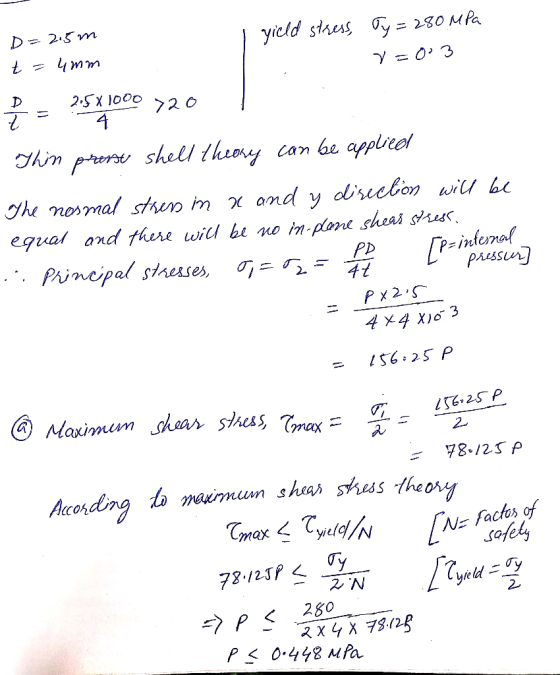

Maximum pressure for maximum
shear stress theory = 0.448 MPa

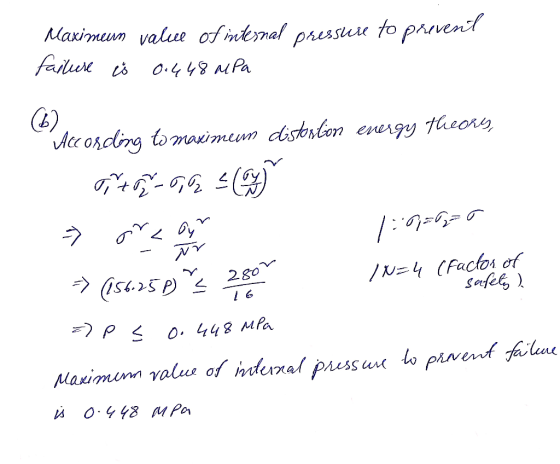

Maximum pressure gor distortion energy theory= 0.448 MPa
Add Answer to:
A spherical shell 2.5 m diameter and 4 mm thick, is subjected
to an internal pressure...
