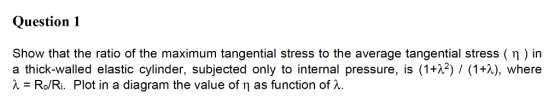

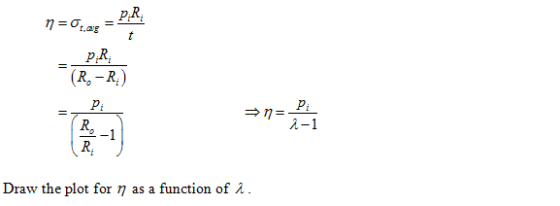

Question 1 Show that the ratio of the maximum tangential stress to the average tangential stress ( η ) in a thick-walled elastic cylinder, subjected only to internal pressure, is (1+22) / (1+), where...
Problem 1: (a)A thick-walled cylinder, made from a homogeneous and isotropic elastic material, has an inner...
Problem 1: (a)A thick-walled cylinder, made from a homogeneous and isotropic elastic material, has an inner radius a and outer radius b. The cylinder is subjected to an internal pressure pi, and is under plane stress conditions. In this case the displacement field is of interest is given by and the stress field of interest is given by C2 C2 where, with (E and v) denoting the Young's modulus and the Poisson's Ratio. EA EB Show that b2 b2 (b/a)2-1)...
A thick-walled steel cylinder with internal diameter = 16 mm and external diameter = 24 mm is sub...
A thick-walled steel cylinder with internal diameter = 16 mm and
external diameter = 24 mm is subjected to a gradually increasing
internal pressure P.
I. Using accurate formulation, determine the value
of P and sketch the distribution of radial, tangential and maximum
shear stresses when:
a. The material of the cylinder first commences to
yield.
b. Yielding progressed to mid-depth of the cylinder
wall (at D= 20 mm ).
c. The material of the cylinder suffers complete
collapse (fully...
A spherical shell 2.5 m diameter and 4 mm thick, is subjected to an internal pressure...
A spherical shell 2.5 m diameter and 4 mm thick, is subjected to an internal pressure 'p'. Suggest the maximum value of the internal pressure, if the failure of the shell is to be prevented according to the following theories of elastic failure: (a) Maximum shear stress theory (b) Maximum distortion energy theory The yield point of the material of the shell in simple tension is 280 MPa and the Poisson’s ratio is 0.3. Assume the factor of safety to...
MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yie...
MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yield stress of 240 MPa. +F 200 mm Fig. Q5 (a) If a tensile axial force of 1MN is applied to the end plate, show that the maximum internal pressure that can be applied before the cylinder yields according to the Tresca criterion is 16.2...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
Consider the pneumatic cylinder as shown in Figure 1 which is an illustration from the Starcyl...
Consider the pneumatic cylinder as shown in Figure 1 which is an illustration from the Starcyl space-saver range, as can be found in their Star2.pdf catalogue, www.starcyl.com. Some pneumatic cylinders can have a push/pull rod (item I in Figure 1) protruding from either head (item A in Figure 1), but this cylinder clearly has only one, making it a “single rod end” type of cylinder. This cylinder is however “double acting”, which means it can be pressurised on either side...
Please answer all the blanks (volume if H2 and everything in analysis). TIA! Data 5 1...
Please answer all the blanks (volume if H2 and
everything in analysis). TIA!
Data 5 1 oong 0.00 10.5ml 2 o.olag 0.00 11.0 Trial 3 o.org 0.00 12.00 o Daag o.albg 0.00 10.0 ml 11.5ml Mass of Mg (g) Initial volume of Syringe (mL) Final volume of Syringe (mL) Volume of H (mL) Barometric pressure (torr) Ambient temperature (°C) Vapor pressure of H2O (torr) 779.314har 23. Oi 21.0 forr TA.314tar 23.0c 179.3 14ton 23.0¢ 779.314 ton 23.0c 779.31472 23.0c 21.0...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
Problem 1: (a)A thick-walled cylinder, made from a homogeneous and isotropic elastic material, has an inner radius a and outer radius b. The cylinder is subjected to an internal pressure pi, and is under plane stress conditions. In this case the displacement field is of interest is given by and the stress field of interest is given by C2 C2 where, with (E and v) denoting the Young's modulus and the Poisson's Ratio. EA EB Show that b2 b2 (b/a)2-1)...
A thick-walled steel cylinder with internal diameter = 16 mm and
external diameter = 24 mm is subjected to a gradually increasing
internal pressure P.
I. Using accurate formulation, determine the value
of P and sketch the distribution of radial, tangential and maximum
shear stresses when:
a. The material of the cylinder first commences to
yield.
b. Yielding progressed to mid-depth of the cylinder
wall (at D= 20 mm ).
c. The material of the cylinder suffers complete
collapse (fully...
MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yield stress of 240 MPa. +F 200 mm Fig. Q5 (a) If a tensile axial force of 1MN is applied to the end plate, show that the maximum internal pressure that can be applied before the cylinder yields according to the Tresca criterion is 16.2...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
Please answer all the blanks (volume if H2 and
everything in analysis). TIA!
Data 5 1 oong 0.00 10.5ml 2 o.olag 0.00 11.0 Trial 3 o.org 0.00 12.00 o Daag o.albg 0.00 10.0 ml 11.5ml Mass of Mg (g) Initial volume of Syringe (mL) Final volume of Syringe (mL) Volume of H (mL) Barometric pressure (torr) Ambient temperature (°C) Vapor pressure of H2O (torr) 779.314har 23. Oi 21.0 forr TA.314tar 23.0c 179.3 14ton 23.0¢ 779.314 ton 23.0c 779.31472 23.0c 21.0...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
