with steps please!!! Question3 Design a thick-walled metallic cylinder of a 200 mm internal diameter for an internal...
Question 3 Design a thick-walled metallic cylinder of a 200 mm internal diameter for an internal...

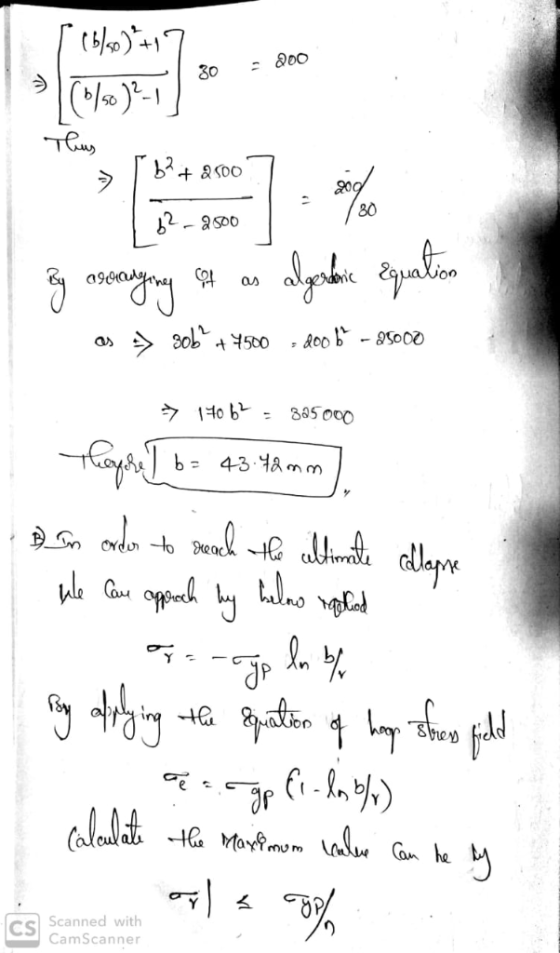

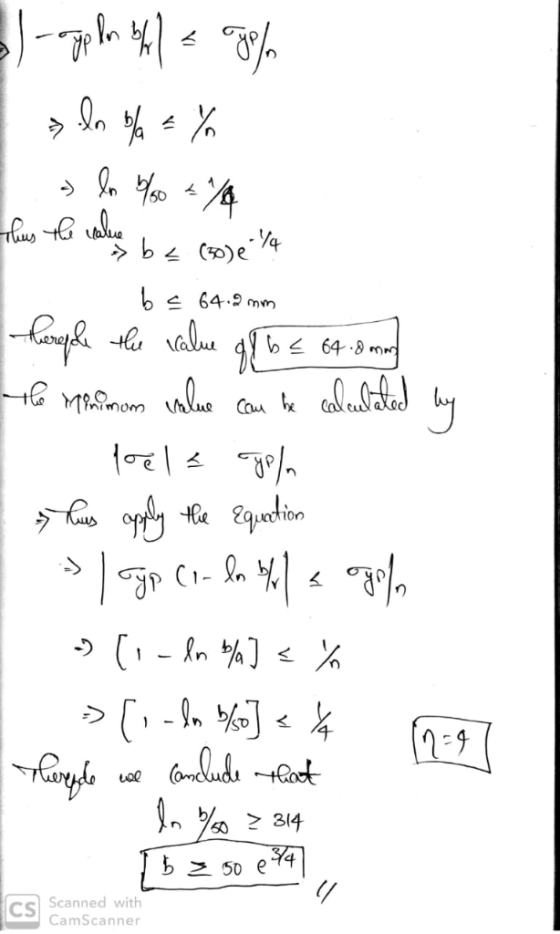

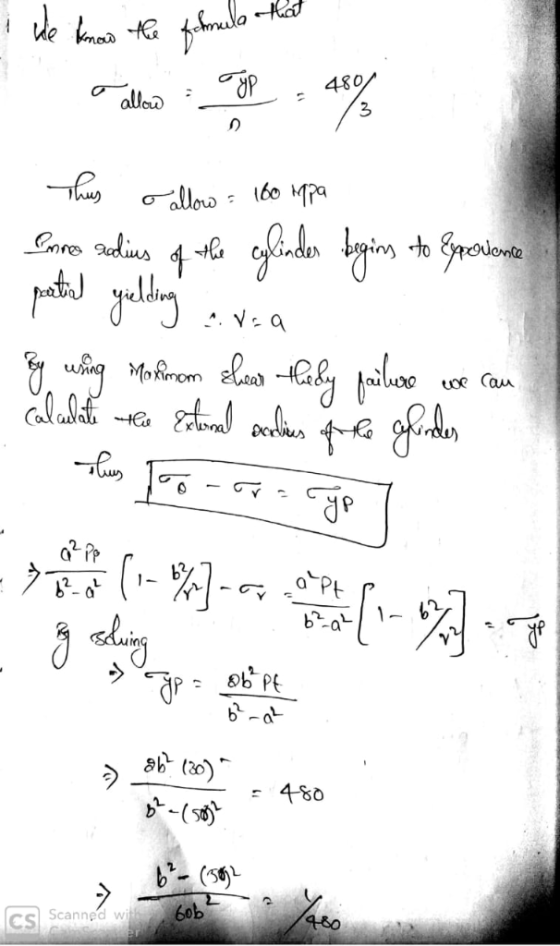

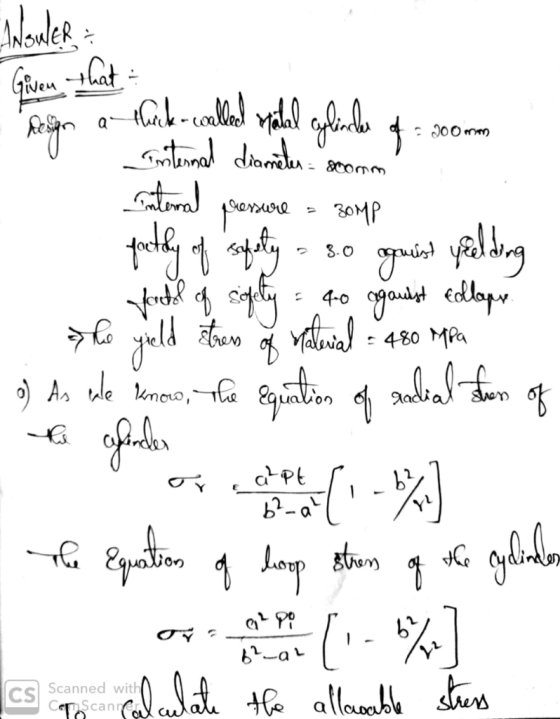

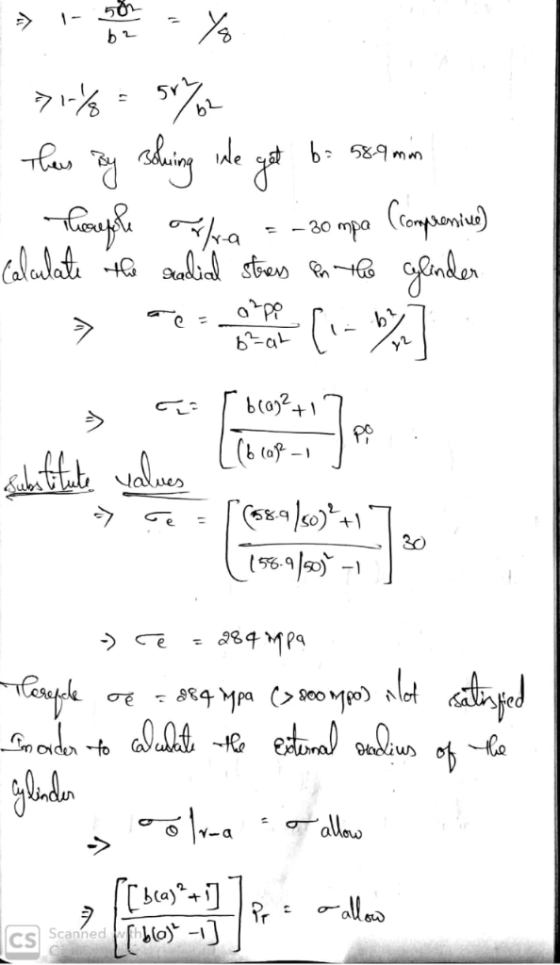

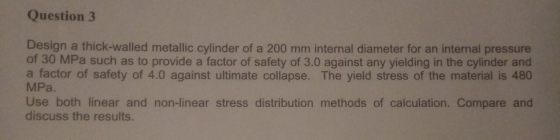

Question 3 Design a thick-walled metallic cylinder of a 200 mm internal diameter for an internal pressure of 30 MPa such as to provide a factor of safety of 3.0 against any yielding in the cylinder and a factor of safety of 4.0 against ultimate collapse. The yield stress of the material is 480 MPa Use both linear and non-linear stress distribution methods of calculation. Compare and discuss the results.
