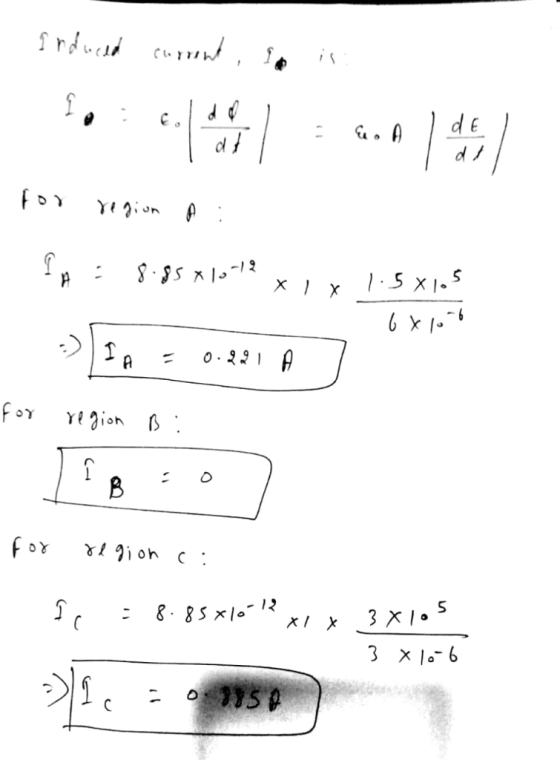

In the figure, a uniform electric fieldE→collapses. The vertical axis scale is set by Es = 1.5 × 105 N/C,and the horizontal axis scale is set by ts = 3.0 μs. Calculate the magnitude of the displacement current through a 1.0 m2 area perpendicular to the field during each of the time intervals a, b, and c shown on the graph. (Ignore the behavior at the ends of the intervals.)
Homework Answers
Add Answer to:
In the figure, a uniform electric fieldE→collapses. The vertical axis scale is set by Es = 1.5 × ...
