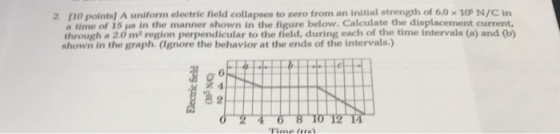

2. 110 points) A uniform electric field collapses to zero from an initial strength of 6.0...
A uniform electric field collapses to zero from an initial strength of 0.6 MV/m in a...
A
uniform electric field collapses to zero from an initial strength
of 0.6 MV/m in a time 15 µs in the manner shown in Figure. 3. What
is the displacement current in Amperes through a 2.9 m2 region
perpendicular to the field during the time interval (a)?
0.6 (a) 04 (NV/m) 0.2 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 (8) Figwe 3 14 - A uniform electric field collapses to zero...
In the figure, a uniform electric fieldE→collapses. The vertical axis scale is set by Es = 1.5 × ...
In the figure, a uniform electric fieldE→collapses. The vertical
axis scale is set by Es = 1.5 ×
105 N/C,and the horizontal axis scale is set by
ts = 3.0 μs. Calculate the magnitude
of the displacement current through a 1.0 m2 area
perpendicular to the field during each of the time intervals
a, b, and c shown on the graph. (Ignore
the behavior at the ends of the intervals.)
0 Time (us)
0 Time (us)
Loop in B A magnetic field is uniform in strength and points into the page. The...
Loop in B A magnetic field is uniform in strength and points into the page. The field is confined to a limited region. A rectangular loop is puilled through the field at a constant speed such that it is perpendicular to the field.What is the direction of the current induced in the loop as it enters the field? going from B-0 to not 0) ??: in A. There is no current Counter clockwise C. Clockwise Loop in B VX xxx...
A graph of the x component of the electric field as a function of x in...
A graph of the x component of the electric field as a function of x in a region of space is shown in the figure. The scale of the vertical axis is set by E_xs = 20.0 N/C. The y and z components of the electric field are zero in this region. If the electric potential at the origin is 13 V, (a) what is the electric potential at x = 2.0 m, (b) what is the greatest positive value...
A 6.0 μC charge enters a region of uniform electric field (25 N/C to the north)...
A 6.0 μC charge enters a region of uniform electric field (25 N/C to the north) with a velocity of 10.0 m/s to the east. Find the magnitude AND direction (north, east, south, west, up, or down) of the magnetic FIELD needed to make the net force on this particle equal to zero. Ignore gravity.
The circular region with radius R = 7.65 cm shown in the figure has an electric field directed upwards perpendicular to the region.
The circular region with radius R = 7.65 cm shown in the figure has an electric field directed upwards perpendicular to the region. The amount of electric flux through a circle of radius r around the center of the region is given by the following expression: What is the magnitude of the displacement current at a = 0.315 s through the circular area with a radius r= 5.55 cm from the center of the circular region? What is the magnitude of the...
9) A non-uniform electric field is directed along the x-axis at all points in space. This...
9) A non-uniform electric field is directed along the x-axis at all points in space. This magnitude of the field varies with x, but not with respect to y or z. The axis of a cylindrical surface, 0.80 m long and 0.26 m in diameter, is aligned parallel to the x-axis, as shown in the figure. The electric fields E1 and E2, at the ends of the cylindrical surface, have magnitudes of 6930 N/C and 710 N/C respectively, and are...
A region of space has a non-uniform electric field that points in the +x-direction and has...
A region of space has a non-uniform electric field that points in the +x-direction and has magnitude as shown in the figure (Figure 1) As a reference point, take the potential at the origin to be -100 V. Calculate the electric potential at x = 3.0 m. Express your answer to two significant figures and include the appropriate units.
Two 1.8-g spheres are suspended by 21.0-cm-long light strings (see the figure). A uniform electric field...
Two 1.8-g spheres are suspended by 21.0-cm-long light strings (see the figure). A uniform electric field is applied in the x-direction. If the spheres have charges of −6.0 ✕ 10−8 C and +6.0 ✕ 10−8 C, determine the electric field intensity that enables the spheres to be in equilibrium at θ = 20°. Charged spheres hang from the ends of each of two strings of identical length. The tops of each string are connected to a single attachment point on...
A
uniform electric field collapses to zero from an initial strength
of 0.6 MV/m in a time 15 µs in the manner shown in Figure. 3. What
is the displacement current in Amperes through a 2.9 m2 region
perpendicular to the field during the time interval (a)?
0.6 (a) 04 (NV/m) 0.2 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 (8) Figwe 3 14 - A uniform electric field collapses to zero...
In the figure, a uniform electric fieldE→collapses. The vertical
axis scale is set by Es = 1.5 ×
105 N/C,and the horizontal axis scale is set by
ts = 3.0 μs. Calculate the magnitude
of the displacement current through a 1.0 m2 area
perpendicular to the field during each of the time intervals
a, b, and c shown on the graph. (Ignore
the behavior at the ends of the intervals.)
0 Time (us)
0 Time (us)
Loop in B A magnetic field is uniform in strength and points into the page. The field is confined to a limited region. A rectangular loop is puilled through the field at a constant speed such that it is perpendicular to the field.What is the direction of the current induced in the loop as it enters the field? going from B-0 to not 0) ??: in A. There is no current Counter clockwise C. Clockwise Loop in B VX xxx...
A graph of the x component of the electric field as a function of x in a region of space is shown in the figure. The scale of the vertical axis is set by E_xs = 20.0 N/C. The y and z components of the electric field are zero in this region. If the electric potential at the origin is 13 V, (a) what is the electric potential at x = 2.0 m, (b) what is the greatest positive value...
9) A non-uniform electric field is directed along the x-axis at all points in space. This magnitude of the field varies with x, but not with respect to y or z. The axis of a cylindrical surface, 0.80 m long and 0.26 m in diameter, is aligned parallel to the x-axis, as shown in the figure. The electric fields E1 and E2, at the ends of the cylindrical surface, have magnitudes of 6930 N/C and 710 N/C respectively, and are...
A region of space has a non-uniform electric field that points in the +x-direction and has magnitude as shown in the figure (Figure 1) As a reference point, take the potential at the origin to be -100 V. Calculate the electric potential at x = 3.0 m. Express your answer to two significant figures and include the appropriate units.
