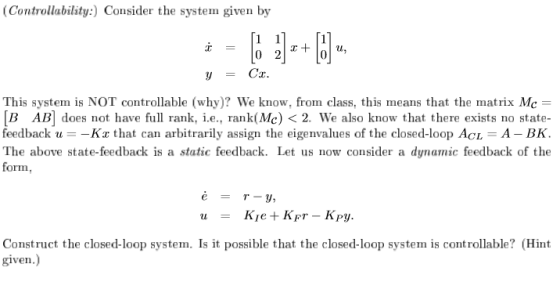

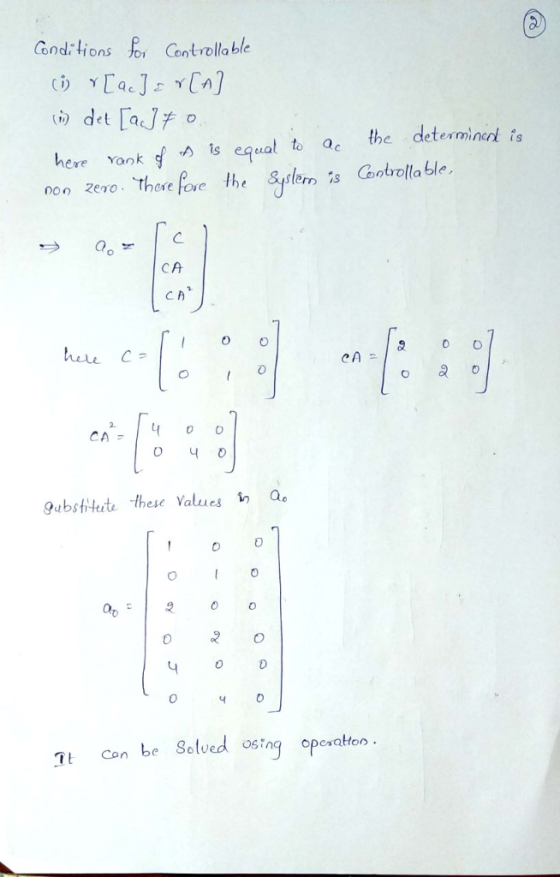

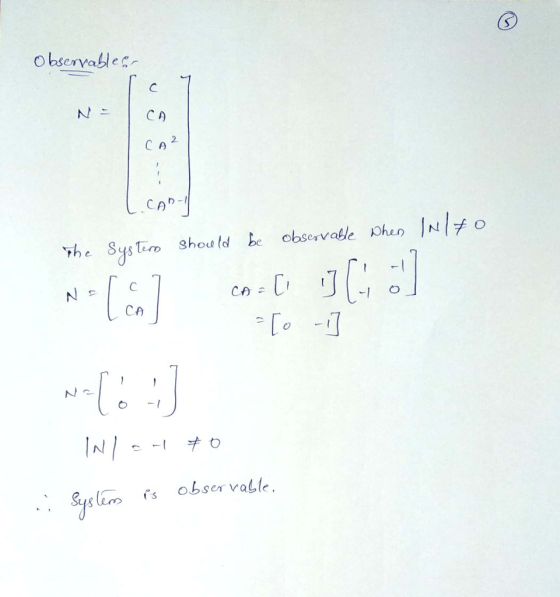

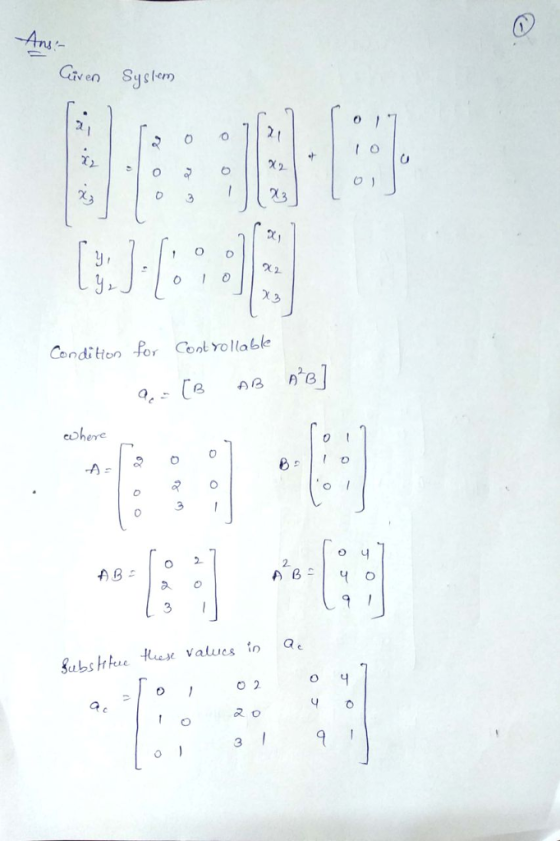

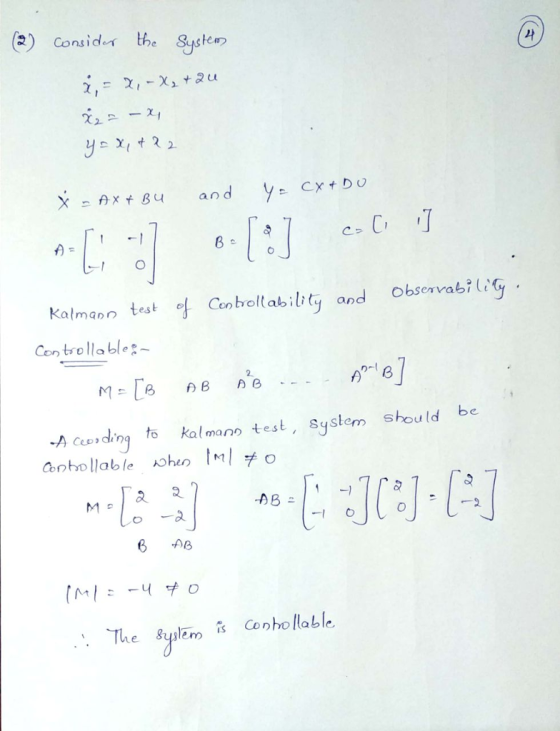

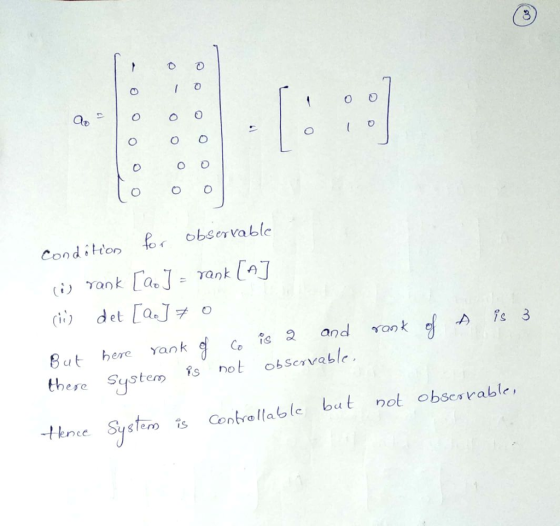

Controllability:) Consider the system given by 0 This system is NOT controllable (why)? We know, ...
Please only solve part C Assume the following state space representation of a discrete-time servomotor system. (As a review for the Final Exam, you might check this state space representation with th...
Please only solve part C
Assume the following state space representation of a discrete-time servomotor system. (As a review for the Final Exam, you might check this state space representation with the difference equation in Problem 1 on Homework 2. This parenthetical comment is not a required part for Homework 8.) 2. 0.048371 u(n) 1.9048x(n) lo.04679 [1,0]x(n) y(n) Compute the open-loop eigenvalues of the system. That is, find the eigenvalues of Ф. Check controllability of the system. Or, answer the...
The state variable model of the two tanks process is given by the equations r1 10 01 r1o 2 0-1 lu Tank 1 Tank 2 Explain the differential equations for the tanks Draw the block diagram for the system...
The state variable model of the two tanks process is given by the equations r1 10 01 r1o 2 0-1 lu Tank 1 Tank 2 Explain the differential equations for the tanks Draw the block diagram for the system model * .Modify the block diagram to realize the system model by first order transfer functions: 1+Ts Determine the controllability and observability of the system model Design a full-state feedback with the eigen values λ-λ2--2 of the closed loop system Design...
1 1 -2 Given the LTI system -Ax Bu where A3 3 2and B0 a) Check the controllability using i) the c...
1 1 -2 Given the LTI system -Ax Bu where A3 3 2and B0 a) Check the controllability using i) the controllability matrix, and ii) the Hautus-Rosenbrock test. b) Identify the controllable and uncontrollable subspaces, and convert the system to a Kalman con- 0 trollable canonical form c) Suppose that we start from the initial state z(0) (1,1, 1)T. Is there a control u(t) that drives the state to (1(3,-1,1)7 at some time t? Is there a control u(t) that...
using the technique pictured, find the controllable canonical form of In this section we shall first...
using the technique pictured, find the controllable
canonical form of
In this section we shall first review technlqes into canonical forms. Then we shall review the invariance property of the Consider conditions for the controllability matrix and observability matrix orming State-Space Equations Into Canonical forms. crete-time state equation and output equation x(k +1) Gx(k) + Hu(k) y(k) Cx(k) + Du(k) We shall review techniques for transforming the state-s (6-30) (6-31) pace equations defined by Equations (6-30) and (6-31) into the...
Consider the following transfer function of a linear control system Determine the state feedba...
Consider the following transfer function of a linear control
system
Determine the state feedback gain matrix that places the closed
system at s=-32, -3.234 ± j3.3.
Design a full order observer which produces a set of desired
closed loop poles at s=-16, -16.15±j16.5
Assume X1 is measurable, design a reduced order observer with
desired closed loop poles at -16.15±j16.5
We were unable to transcribe this image1 Y(s) U(s) (s+1)(s2+0.7s+2) Consider the following transfer function of a linear control system (a)...
Consider the following transfer function of a linear control system 1- Determine the state feedb...
Consider the following transfer function of a linear control
system
1- Determine the state feedback gain matrix that places the
closed system at s=-32, -3.234 ± j3.3.
2- Design a full order observer which produces a set of desired
closed loop poles at s=-16, -16.15±j16.5
3-Assume X1 is measurable, design a reduced order observer with
desired closed loop poles at -16.15±j16.5
We were unable to transcribe this image1 Y(s) U(s) (s+1)(s2+0.7s+2) Consider the following transfer function of a linear control...
3. Consider a system with the following state equation h(t)] [0 0 21 [X1(t) [x1(t) y(t)...
3. Consider a system with the following state equation h(t)] [0 0 21 [X1(t) [x1(t) y(t) [0.1 0 0.1x2(t) X3(t) The unit step response is required to have a settling time of less than 2 seconds and a percent overshoot of less than 5%. In addition a zero steady-state error is needed. The goal is to design the state feedback control law in the form of u(t) Kx(t) + Gr(t) (a) Find the desired regon of the S-plane for two...
Question 7. (15 marks] Consider the discrete time system given by the state equation 07 x4...
Question 7. (15 marks] Consider the discrete time system given by the state equation 07 x4 + 11-18 8/11 - 10/n VIK) = 10 11 **) 1. [3 marks) Determine if the system is (a) Lyapunov state, syptereally ) Bounded input Bounded Output (BIBO) stable. Provide brief explanations 2. (8 marks) Design a discrete-time state feedback control law of the form - Kxkl by finding the gain K to place the closed-loop eigenvalues at 0.5 3. [4 marks) Suppose the...
Consider a (continuous-time) linear system x=Ax + Bu. We introduce a time discretization tk-kAT, ...
Consider a (continuous-time) linear system x=Ax + Bu. We introduce a time discretization tk-kAT, where ΔT = assume that the input u(t) is piecewise constant on the equidistant intervals tk, tk+1), , and N > 0, and N 1 a(t) = uk for t E [tk, tk+1). (a) Verify that the specific choice of input signals leads to a discretization of the continuous-time system x = Ax + Bu in terms of a discrete-time system with states x,-2(tr) and inputs...
Consider the following system: -1-2-21 гг 1 0 1 L Where u is the system input and y is the measur...
control system with observer
Consider the following system: -1-2-21 гг 1 0 1 L Where u is the system input and y is the measured output. 1. Find the transfer function of the system. 2. Design a state feedback controller with a full-state observer such that the step response of the closed loop system is second order dominant with an overshoot Mp settling time ts s 5 sec. Represent the observer-based control system in a compact state space form. 10%...
Please only solve part C
Assume the following state space representation of a discrete-time servomotor system. (As a review for the Final Exam, you might check this state space representation with the difference equation in Problem 1 on Homework 2. This parenthetical comment is not a required part for Homework 8.) 2. 0.048371 u(n) 1.9048x(n) lo.04679 [1,0]x(n) y(n) Compute the open-loop eigenvalues of the system. That is, find the eigenvalues of Ф. Check controllability of the system. Or, answer the...
The state variable model of the two tanks process is given by the equations r1 10 01 r1o 2 0-1 lu Tank 1 Tank 2 Explain the differential equations for the tanks Draw the block diagram for the system model * .Modify the block diagram to realize the system model by first order transfer functions: 1+Ts Determine the controllability and observability of the system model Design a full-state feedback with the eigen values λ-λ2--2 of the closed loop system Design...
1 1 -2 Given the LTI system -Ax Bu where A3 3 2and B0 a) Check the controllability using i) the controllability matrix, and ii) the Hautus-Rosenbrock test. b) Identify the controllable and uncontrollable subspaces, and convert the system to a Kalman con- 0 trollable canonical form c) Suppose that we start from the initial state z(0) (1,1, 1)T. Is there a control u(t) that drives the state to (1(3,-1,1)7 at some time t? Is there a control u(t) that...
using the technique pictured, find the controllable
canonical form of
In this section we shall first review technlqes into canonical forms. Then we shall review the invariance property of the Consider conditions for the controllability matrix and observability matrix orming State-Space Equations Into Canonical forms. crete-time state equation and output equation x(k +1) Gx(k) + Hu(k) y(k) Cx(k) + Du(k) We shall review techniques for transforming the state-s (6-30) (6-31) pace equations defined by Equations (6-30) and (6-31) into the...
Consider the following transfer function of a linear control
system
Determine the state feedback gain matrix that places the closed
system at s=-32, -3.234 ± j3.3.
Design a full order observer which produces a set of desired
closed loop poles at s=-16, -16.15±j16.5
Assume X1 is measurable, design a reduced order observer with
desired closed loop poles at -16.15±j16.5
We were unable to transcribe this image1 Y(s) U(s) (s+1)(s2+0.7s+2) Consider the following transfer function of a linear control system (a)...
Consider the following transfer function of a linear control
system
1- Determine the state feedback gain matrix that places the
closed system at s=-32, -3.234 ± j3.3.
2- Design a full order observer which produces a set of desired
closed loop poles at s=-16, -16.15±j16.5
3-Assume X1 is measurable, design a reduced order observer with
desired closed loop poles at -16.15±j16.5
We were unable to transcribe this image1 Y(s) U(s) (s+1)(s2+0.7s+2) Consider the following transfer function of a linear control...
3. Consider a system with the following state equation h(t)] [0 0 21 [X1(t) [x1(t) y(t) [0.1 0 0.1x2(t) X3(t) The unit step response is required to have a settling time of less than 2 seconds and a percent overshoot of less than 5%. In addition a zero steady-state error is needed. The goal is to design the state feedback control law in the form of u(t) Kx(t) + Gr(t) (a) Find the desired regon of the S-plane for two...
Question 7. (15 marks] Consider the discrete time system given by the state equation 07 x4 + 11-18 8/11 - 10/n VIK) = 10 11 **) 1. [3 marks) Determine if the system is (a) Lyapunov state, syptereally ) Bounded input Bounded Output (BIBO) stable. Provide brief explanations 2. (8 marks) Design a discrete-time state feedback control law of the form - Kxkl by finding the gain K to place the closed-loop eigenvalues at 0.5 3. [4 marks) Suppose the...
Consider a (continuous-time) linear system x=Ax + Bu. We introduce a time discretization tk-kAT, where ΔT = assume that the input u(t) is piecewise constant on the equidistant intervals tk, tk+1), , and N > 0, and N 1 a(t) = uk for t E [tk, tk+1). (a) Verify that the specific choice of input signals leads to a discretization of the continuous-time system x = Ax + Bu in terms of a discrete-time system with states x,-2(tr) and inputs...
control system with observer
Consider the following system: -1-2-21 гг 1 0 1 L Where u is the system input and y is the measured output. 1. Find the transfer function of the system. 2. Design a state feedback controller with a full-state observer such that the step response of the closed loop system is second order dominant with an overshoot Mp settling time ts s 5 sec. Represent the observer-based control system in a compact state space form. 10%...
