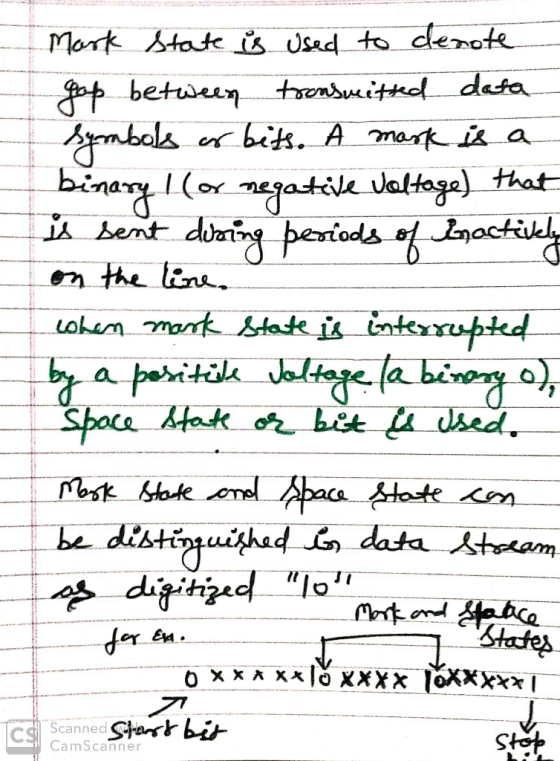

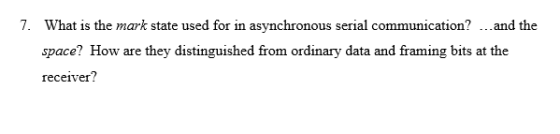

7. What is the mark state used for in asynchronous serial communication? ...and the space? How ar...
Assume that an asynchronous serial communication protocol is configured to utilize 15-bit data, odd parity, one...
Assume that an asynchronous serial communication protocol is configured to utilize 15-bit data, odd parity, one start bit, one and a half stop bits, and a baud rate of 100kHz. If you were to send 200,000 data frames using the aforementioned protocol, precisely how long should this take, assuming any extraneous communication overhead is negligible?
4. If an asynchronous frame is used to send ASCII characters in the form of bytes (8 bits), what is the shortest time it could take to send 1000 characters if each bit in a frame is 1 msec long?...
4. If an asynchronous frame is used to send ASCII characters in the form of bytes (8 bits), what is the shortest time it could take to send 1000 characters if each bit in a frame is 1 msec long? 5. Suppose an asynchronous frame holds 8 bits of data, a parity bit, and two stop bits (it could happen). Calculate the efficiency of the communication system. Suppose a synchronous frame has 16 bits of non-data in the front and...
1. How many different characters could be encoded using a six-bit code? 2. What is the numerical difference between ASCI a and ASClI 'AN if you treaj them as hexadecimal (hex) numbers? 3. The...
1. How many different characters could be encoded using a six-bit code? 2. What is the numerical difference between ASCI a and ASClI 'AN if you treaj them as hexadecimal (hex) numbers? 3. The ASCII codes for the characters 'O' through '9' are what hex numbers? If an asynchronous frame is used to send ASCII characters in the form of bytes (8 bits), what is the shortest time it could take to send 1000 characters if each bit in a...
1. (ch.7) A PCM/TDM system multiplexes 24 voice band channels. Each sample is encoded into 7...
1. (ch.7) A PCM/TDM system multiplexes 24 voice band channels. Each sample is encoded into 7 bits and a frame consists of one sample from each channel. A framing bit is added to each frame. The sampling rate is 9000 samples/sec. What is the line speed in bits per second? 2. (ch.9) An asynchronous protocol uses 1 start bit, 7 data bits, 2 stop bits and 1 even parity bit for each character. a. How many bits are in a...
how to slove 4-25,26,27 ?? and please 2way slove state assignment gray code and counting Order or tIne Circuit....
how to slove 4-25,26,27 ?? and please 2way slove state
assignment gray code and counting Order
or tIne Circuit. snTor the (b) Find the state table for the circuit and make a state assignment (c) Find an implementation of the circuit using D flip-flops and logic gates 4-23. In many communication and networking systems, the signal transmitted on the communication line uses a non-return-to-zero (NRZ) format. USB uses a specific version referred to as non-return-to-zero inverted (NRZI). A circuit that...
Nyquist pulses are often used in communication systems as a solution to intersymbol interference i. Sketch...
Nyquist pulses are often used in communication systems as a
solution to intersymbol interference
i. Sketch a Nyquist pulse making clear its important features.
The figure below shows a signal formed of a sequence of Nyquist
pulses transmitted at the rate of one pulse every millisecond.
i. How many bits per symbol (pulse) were transmitted?
ii. What binary data was transmitted in the first three
milliseconds? State the assumptions you have made and explain
clearly how you calculated your answer....
Problem #2: (40 points) Consider the following communication link. Both the transmitter and receivers are properly...
Problem #2: (40 points) Consider the following communication link. Both the transmitter and receivers are properly matched to their respective antennas. Assume that the system nominal temperature is 290 K. A detailed block diagram of the receiver is shown in the figure Determine 1. The effective isotropic radiated power in dBm. 2. The space loss in dB 3. The communication link total losses in dB 4. What would be the received power at the receiver input in dBm? 5. What's...
How many bits are shifted out if the value in USICNT is 7 (SPI communication,USI in...
How many bits are shifted out if the value in USICNT is 7 (SPI communication,USI in MSP43012013)? 7. [10] Ans: 8. Following code section is used whenever we want to send something out of UART. Ca you please write in a sentence the significance of while loop [10] while(!(IFG2 & UCAOTXIFG)): Ans: 9. Suppose you have a character array ch as follows: char chi]- "I am a good person"; Write a section of a code (perhaps a loop) so that...
When referring to organizational communication, what is the grapevine? How is used (helpful, not helpful)?
When referring to organizational communication, what is the grapevine? How is used (helpful, not helpful)?
In the last module you learned a formula for calculating bit rate, R = b/t, that...
In the last module you learned a formula for calculating bit rate, R = b/t, that is the number of bits divided by the time. This formula expresses the number of bits that are transmitted over a circuit in a given period of time. In practice, however, we are not only concerned with the number bits transmitted, but also with the number of data bits transmitted over a circuit. The data bits are those that the sender decides to send...
4. If an asynchronous frame is used to send ASCII characters in the form of bytes (8 bits), what is the shortest time it could take to send 1000 characters if each bit in a frame is 1 msec long? 5. Suppose an asynchronous frame holds 8 bits of data, a parity bit, and two stop bits (it could happen). Calculate the efficiency of the communication system. Suppose a synchronous frame has 16 bits of non-data in the front and...
1. How many different characters could be encoded using a six-bit code? 2. What is the numerical difference between ASCI a and ASClI 'AN if you treaj them as hexadecimal (hex) numbers? 3. The ASCII codes for the characters 'O' through '9' are what hex numbers? If an asynchronous frame is used to send ASCII characters in the form of bytes (8 bits), what is the shortest time it could take to send 1000 characters if each bit in a...
1. (ch.7) A PCM/TDM system multiplexes 24 voice band channels. Each sample is encoded into 7 bits and a frame consists of one sample from each channel. A framing bit is added to each frame. The sampling rate is 9000 samples/sec. What is the line speed in bits per second? 2. (ch.9) An asynchronous protocol uses 1 start bit, 7 data bits, 2 stop bits and 1 even parity bit for each character. a. How many bits are in a...
how to slove 4-25,26,27 ?? and please 2way slove state
assignment gray code and counting Order
or tIne Circuit. snTor the (b) Find the state table for the circuit and make a state assignment (c) Find an implementation of the circuit using D flip-flops and logic gates 4-23. In many communication and networking systems, the signal transmitted on the communication line uses a non-return-to-zero (NRZ) format. USB uses a specific version referred to as non-return-to-zero inverted (NRZI). A circuit that...
Nyquist pulses are often used in communication systems as a
solution to intersymbol interference
i. Sketch a Nyquist pulse making clear its important features.
The figure below shows a signal formed of a sequence of Nyquist
pulses transmitted at the rate of one pulse every millisecond.
i. How many bits per symbol (pulse) were transmitted?
ii. What binary data was transmitted in the first three
milliseconds? State the assumptions you have made and explain
clearly how you calculated your answer....
Problem #2: (40 points) Consider the following communication link. Both the transmitter and receivers are properly matched to their respective antennas. Assume that the system nominal temperature is 290 K. A detailed block diagram of the receiver is shown in the figure Determine 1. The effective isotropic radiated power in dBm. 2. The space loss in dB 3. The communication link total losses in dB 4. What would be the received power at the receiver input in dBm? 5. What's...
How many bits are shifted out if the value in USICNT is 7 (SPI communication,USI in MSP43012013)? 7. [10] Ans: 8. Following code section is used whenever we want to send something out of UART. Ca you please write in a sentence the significance of while loop [10] while(!(IFG2 & UCAOTXIFG)): Ans: 9. Suppose you have a character array ch as follows: char chi]- "I am a good person"; Write a section of a code (perhaps a loop) so that...
In the last module you learned a formula for calculating bit rate, R = b/t, that is the number of bits divided by the time. This formula expresses the number of bits that are transmitted over a circuit in a given period of time. In practice, however, we are not only concerned with the number bits transmitted, but also with the number of data bits transmitted over a circuit. The data bits are those that the sender decides to send...
