Question

If someone could please help me with running this exercise with a physical breadboard circuit, it would help me greatly. I unfortunately do not have the right equipment to perform practical measurements right now.

Thank you all

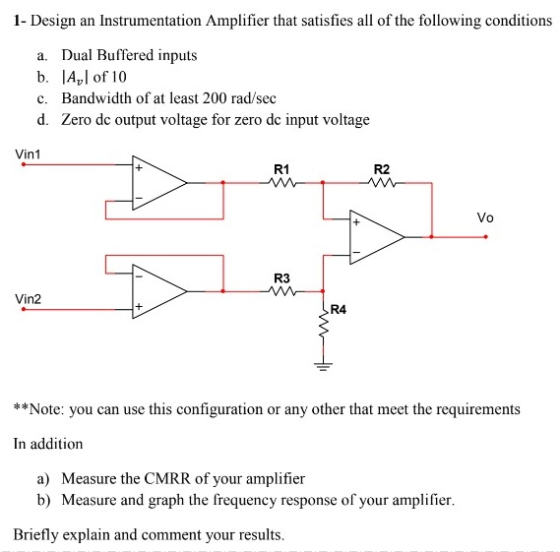

1- Design an Instrumentation Amplifier that satisfies all of the following conditions a. Dual Buffered inputs b. A,| of 10 c.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

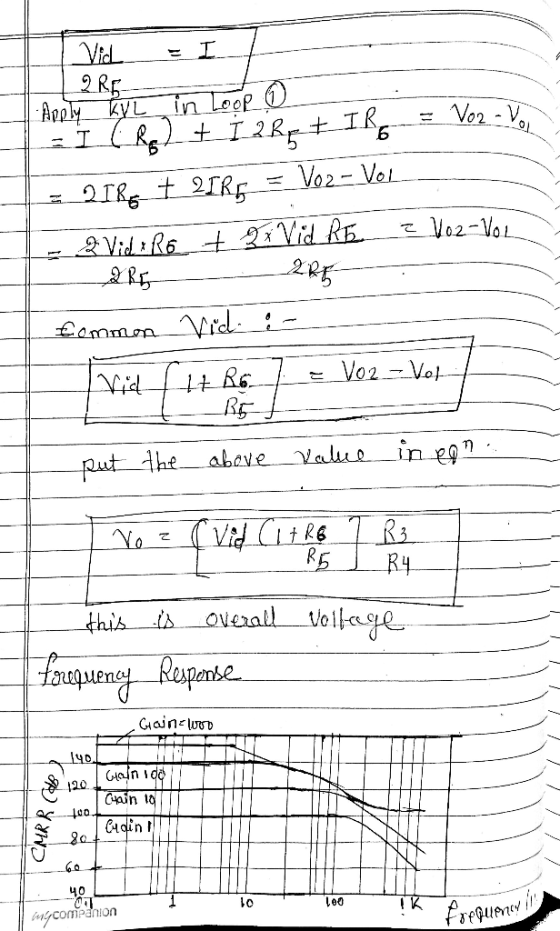

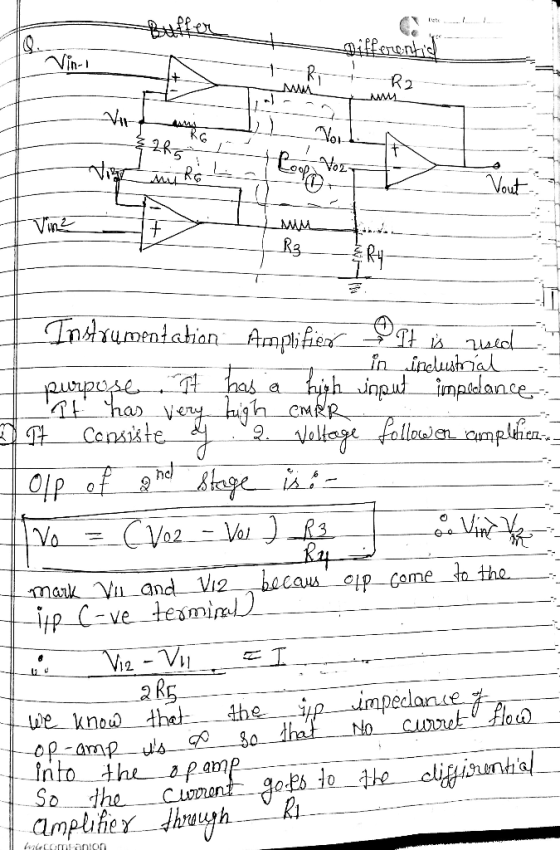

R2 R G 01-_ 2R Nodt Trdyu men lahan-Amplifier.-9TL.uudーー as a rM hd 12 - Vij cdlanxe Into Ahe iPampAp 02. Vo in eg 26 an 120 10 companionplease thumsup
