A) Show that the chemical potential in an intrinsic semiconductor lies in the middle of the gap a...

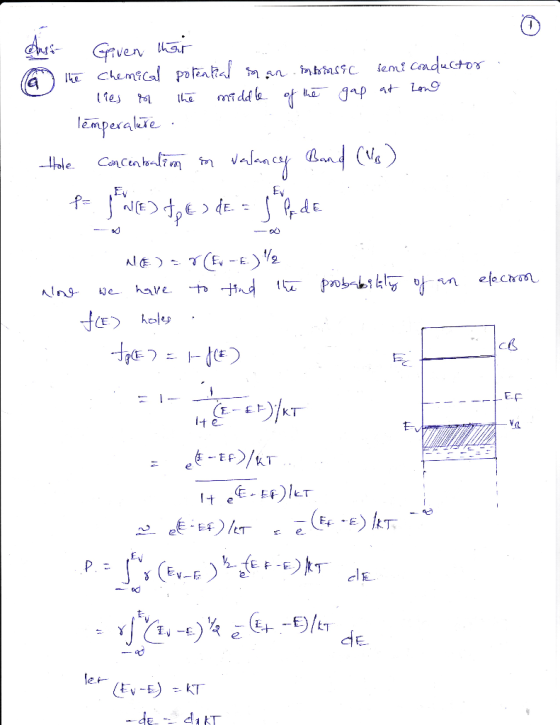

a) Show that the chemical potential in an intrinsic semiconductor lies in the middle of the gap at low temperature.

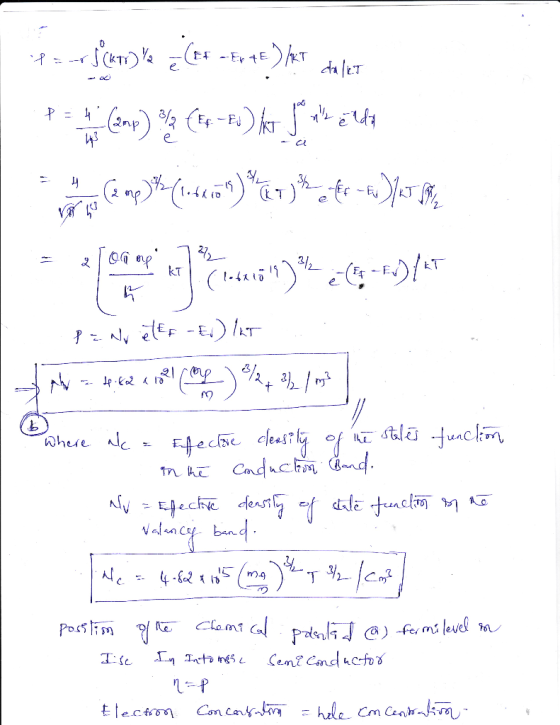

(b) Explain how the chemical potential varies with temperature if the semiconductor is doped with (i) donors (ii) acceptors.
(c) A direct-gap semiconductor is doped to produce a density of 1023electrons/m3.

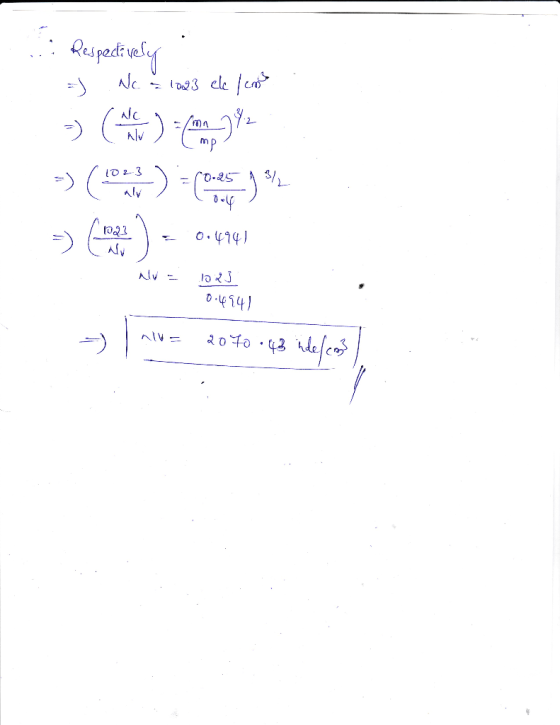

Calculate the hole density at room temperature given that the gap is 1.0 eV, and the effective mass of carriers in the conduction and valence band are 0.25 and 0.4 electron masses respectively.
Homework Answers
Add Answer to:
A) Show that the chemical potential in an intrinsic semiconductor lies in the middle of the gap a...
(2) In a semiconductor with an energy gap Eg between the valence and the conduction bands we can take Ef (the Fermi ene...
(2) In a semiconductor with an energy gap Eg between the valence and the conduction bands we can take Ef (the Fermi energy) to be halfway between the bands (see figure below): Conduction band Energy gap Eg Valence band Semiconductor a. Show that for a typical semiconductor or insulator at room temperature the Fermi- Dirac factor is approximately equal to exp(-E 2kBT). (Typical Eg for semi-conductors ranges from about 0.5eV to 6eV at T-293K.) b. In heavily doped n-type silicon,...
A wire is made of an intrinsic semiconductor whose bandgap is 1.0eV. The wire is 0.05microns...
A wire is made of an intrinsic semiconductor whose bandgap is 1.0eV. The wire is 0.05microns in diameter and 1 micron long. Electrons have a mobility of 1000/cm V-sec and holes have a mobility of 200/cm V-sec. The effective mass of an electron in the conduction band is 1.2 and that of a hole in the valence band is 0.6. The semiconductor operates at room temperature. a. What is the probability of finding an electron at an energy 0.5eV above...
On increasing the temperature, the increase in conductivity of intrinsic semiconductor is due to (A) Decrease...
On increasing the temperature, the increase in conductivity of intrinsic semiconductor is due to (A) Decrease in band gap between valence band and conduction band (B) Increase in electrons in conduction band (C) Increase in negative charged electrons than positive holes in valence band (D) Increase in electrons in valence band
Consider a semiconductor material X, with the following parameters at a room temperature of 300K: Energy...
Consider a semiconductor material X, with the following parameters at a room temperature of 300K: Energy bandgap of Eg = 1.15 ev, density of states at the Conduction band edge of Nc = 4.8e+23, effective density of states at the Valance band edge of Nv = 1e+25, drift mobilities of the electrons and holes, ue and uh, such that ue =0.4 and uh = 0.02. (1) What is the intrinsic concentration and conductivity of 'material x' at room temperature 300K?...
The energy gap between the valence band and the conduction band in the widely-usd semiconductor gallium...
The energy gap between the valence band and the conduction band in the widely-usd semiconductor gallium arsenide (GaAs) is A- 1.424 ev. (k 8.617x105 eV/K) At T 0 K the valence band has all the electrons. At T 0 K (shown), electrons are thermally excited across the gap into the conduction band, leaving an equal number of holes behind. Conduction band Energy gap, A Valence band 1) The density of free electrons (ne number per volumer) in a pure crystal...
Consider the semiconductor CuInSe2. Its bandgap is 1.0 eV, and the effective masses of electrons and...
Consider the semiconductor CuInSe2. Its bandgap is 1.0 eV, and the effective masses of electrons and holes are .09 me and .72 me, respectively. If the material is doped such that the Fermi energy is .1 eV above the valence band edge, determine: (a) the number of electrons in the conduction band per cubic centimeter and (b) the number of holes in the valence band per cubic centimeter.
helpp Problem 5b. - 10 Points total A semiconductor material has an energy gap of 0.75...
helpp
Problem 5b. - 10 Points total A semiconductor material has an energy gap of 0.75 eV, effective masses mn= 0.04 mo and mp= 0.22 mo, where mo is the free electron mass = 9.11 x 103 [kg]. Assume complete ionization. a) Let the temperature be T = 350 °K. The material is un-doped. Find the intrinsic Fermi level EFi and carrier concentration ni- pi (4 points) b) Let the temperature be T = 350 K. The material is doped...
(a) Assuming that the Fermi level is at the midgap in the intrinsic silicon, calculate the...
(a) Assuming that the Fermi level is at the midgap in the intrinsic silicon, calculate the probability of finding an electron at the bottom of the conduction band (E=Ec) for three different temperatures: 0K, 20C, 100C? (b) How are these probabilities related to the probabilities of finding a hole at E=Ev, which is the top of the valence band? (c) A sample of silicon is doped with 1016 cm-3 of arsenic and 3x1016 cm-3 of boron. Calculate n, p, and...
Consider a GaAs semiconductor at room temperature (T = 300 K). The bandgap energy is Eg...
Consider a GaAs semiconductor at room temperature (T = 300 K). The bandgap energy is Eg = 1.42 eV. The electron-to-hole effective mass ratio is me*/mh*=0.134. It is given that the separation between the Fermi level (located in the bandgap) and the top of the valence band is 4 times the separation between the bottom of the conduction band and the Fermi level. Find the ratio of the electron concentration in the conduction band to the hole concentration in the...
Please explain part b in details thx! Question 2 At 300 K, the bandgap of GaP is 2.26 eV and the effective density of states at the conduction and valence band edge are 1.8 x 1019 cm23 and 1.9 x 1019...
Please explain part b in details thx!
Question 2 At 300 K, the bandgap of GaP is 2.26 eV and the effective density of states at the conduction and valence band edge are 1.8 x 1019 cm23 and 1.9 x 1019 cm3, respectively. (a) Calculate the intrinsic concentration of GaP at 300K (7 marks) Calculate the GaP effective mass of holes at 300K. (b) (8 marks) (c The GaP sample is now doped with donor concentration of 1021 cm3 with...
(2) In a semiconductor with an energy gap Eg between the valence and the conduction bands we can take Ef (the Fermi energy) to be halfway between the bands (see figure below): Conduction band Energy gap Eg Valence band Semiconductor a. Show that for a typical semiconductor or insulator at room temperature the Fermi- Dirac factor is approximately equal to exp(-E 2kBT). (Typical Eg for semi-conductors ranges from about 0.5eV to 6eV at T-293K.) b. In heavily doped n-type silicon,...
A wire is made of an intrinsic semiconductor whose bandgap is 1.0eV. The wire is 0.05microns in diameter and 1 micron long. Electrons have a mobility of 1000/cm V-sec and holes have a mobility of 200/cm V-sec. The effective mass of an electron in the conduction band is 1.2 and that of a hole in the valence band is 0.6. The semiconductor operates at room temperature. a. What is the probability of finding an electron at an energy 0.5eV above...
On increasing the temperature, the increase in conductivity of intrinsic semiconductor is due to (A) Decrease in band gap between valence band and conduction band (B) Increase in electrons in conduction band (C) Increase in negative charged electrons than positive holes in valence band (D) Increase in electrons in valence band
The energy gap between the valence band and the conduction band in the widely-usd semiconductor gallium arsenide (GaAs) is A- 1.424 ev. (k 8.617x105 eV/K) At T 0 K the valence band has all the electrons. At T 0 K (shown), electrons are thermally excited across the gap into the conduction band, leaving an equal number of holes behind. Conduction band Energy gap, A Valence band 1) The density of free electrons (ne number per volumer) in a pure crystal...
helpp
Problem 5b. - 10 Points total A semiconductor material has an energy gap of 0.75 eV, effective masses mn= 0.04 mo and mp= 0.22 mo, where mo is the free electron mass = 9.11 x 103 [kg]. Assume complete ionization. a) Let the temperature be T = 350 °K. The material is un-doped. Find the intrinsic Fermi level EFi and carrier concentration ni- pi (4 points) b) Let the temperature be T = 350 K. The material is doped...
Please explain part b in details thx!
Question 2 At 300 K, the bandgap of GaP is 2.26 eV and the effective density of states at the conduction and valence band edge are 1.8 x 1019 cm23 and 1.9 x 1019 cm3, respectively. (a) Calculate the intrinsic concentration of GaP at 300K (7 marks) Calculate the GaP effective mass of holes at 300K. (b) (8 marks) (c The GaP sample is now doped with donor concentration of 1021 cm3 with...
