Question

Please help me this problem. Provide the design and codes with pictures also separate answer

Random Number File Reader This exercise assumes you have completed Programming Problem 13, Randorm Number File Writer. Create another application that uses an OpenFileDialog con- trol to let the user select the file that was created by the application that you wrote for Problem 13. This application should read the numbers from the file, display the numbers in a ListBox control, and then display the following data: . The total of the numbers . The number of random numbers read from the file 14.

Thank you

Answer 1

Dear Student ,

As per the requirement submitted above , kindly find the below solution.

Here a new Windows Forms Application in C# is created using Visual Studio 2017 with name "Demo_RandomNumberFileReader".This application contains a form with name "Form1.cs".Below are the files associated with form1.

1.Form1.cs[Design]

一口 Random Number File Reader × Click to Read File Exit

2.Form1.Designer.cs

namespace Demo_RandomNumberFileReader
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;

/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}

#region Windows Form Designer generated code

/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.lstRandomNumbers = new System.Windows.Forms.ListBox();
this.lblNumbers = new System.Windows.Forms.Label();
this.btnReadFile = new System.Windows.Forms.Button();
this.btnExit = new System.Windows.Forms.Button();
this.SuspendLayout();
//
// lstRandomNumbers
//
this.lstRandomNumbers.FormattingEnabled = true;
this.lstRandomNumbers.Location = new System.Drawing.Point(12, 26);
this.lstRandomNumbers.Name = "lstRandomNumbers";
this.lstRandomNumbers.Size = new System.Drawing.Size(116, 186);
this.lstRandomNumbers.TabIndex = 0;
//
// lblNumbers
//
this.lblNumbers.AutoSize = true;
this.lblNumbers.Location = new System.Drawing.Point(159, 39);
this.lblNumbers.Name = "lblNumbers";
this.lblNumbers.Size = new System.Drawing.Size(0, 13);
this.lblNumbers.TabIndex = 1;
//
// btnReadFile
//
this.btnReadFile.Font = new System.Drawing.Font("Microsoft Sans Serif", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(0)));
this.btnReadFile.Location = new System.Drawing.Point(162, 150);
this.btnReadFile.Name = "btnReadFile";
this.btnReadFile.Size = new System.Drawing.Size(152, 36);
this.btnReadFile.TabIndex = 2;
this.btnReadFile.Text = "&Click to Read File";
this.btnReadFile.UseVisualStyleBackColor = true;
this.btnReadFile.Click += new System.EventHandler(this.btnReadFile_Click);
//
// btnExit
//
this.btnExit.Font = new System.Drawing.Font("Microsoft Sans Serif", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(0)));
this.btnExit.Location = new System.Drawing.Point(162, 192);
this.btnExit.Name = "btnExit";
this.btnExit.Size = new System.Drawing.Size(152, 26);
this.btnExit.TabIndex = 3;
this.btnExit.Text = "E&xit\r\n";
this.btnExit.UseVisualStyleBackColor = true;
this.btnExit.Click += new System.EventHandler(this.btnExit_Click);
//
// Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(336, 230);
this.Controls.Add(this.btnExit);
this.Controls.Add(this.btnReadFile);
this.Controls.Add(this.lstRandomNumbers);
this.Controls.Add(this.lblNumbers);
this.Name = "Form1";
this.Text = "Random Number File Reader";
this.ResumeLayout(false);
this.PerformLayout();

}

#endregion

private System.Windows.Forms.ListBox lstRandomNumbers;
private System.Windows.Forms.Label lblNumbers;
private System.Windows.Forms.Button btnReadFile;
private System.Windows.Forms.Button btnExit;
}
}

3.Form1.cs

//namespace
using System;
using System.Windows.Forms;
using System.IO;
//application namespace
namespace Demo_RandomNumberFileReader
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
//Read file button clcik
private void btnReadFile_Click(object sender, EventArgs e)
{
//creating object of open file dialog
OpenFileDialog fileDialog = new OpenFileDialog();
//display dialog
fileDialog.ShowDialog();
//selected file path
string Path = fileDialog.FileName;
//creating object of stream reader
StreamReader reader = new StreamReader(Path);
string lineFromFile = "";
//declaring variables
int sumofNumbers = 0;
int totalNumbers = 0;
while ((lineFromFile = reader.ReadLine()) != null)
{
//add number in the listbox
lstRandomNumbers.Items.Add(lineFromFile);
//calculate sum
sumofNumbers = sumofNumbers + int.Parse(lineFromFile);
//increment count
totalNumbers++;
}
//display sum and number count on the label
lblNumbers.Text = "Total Numbers are " + totalNumbers + Environment.NewLine + "Sum of Numbers are :" + sumofNumbers;
}
//Exit button click
private void btnExit_Click(object sender, EventArgs e)
{
Application.Exit();//close application
}
}
}
Screen for code :

Demo_RandomNumberFileReader Demo RandomNumberFileReader.Form1 btnReadFile Click(object sender, EventArs 1 reference private void btnReadFile Click (object sender, EventArgs e) 15 16 17 18 //creating object of open file dialog OpenFileDialog fileDialog- new OpenFileDialog); //display dialog fileDialog.ShowDialog); //selected file patih string Path-fileDialog.FileName //creating object of stream reader StreamReader reader new StreamReader(Path) string lineFromFile //declaring variables int sumofNumbers e; int totalNumbers e; while ((lineFromFile -reader.ReadLine()) null) 20 21 23 24 25 27 28 29 30 31 32 //add number in the listbox 1stRandomNumbers.Items.Add(lineFromFile); //calculate sum sumofNumbers sumofNumbers + int.Parse(11neFromFile); //increment count totalNumbers++; 35 36 37 38 //display sum and number count on the label lblNumbers . Text = "Total Numbers are " + totalNumbers + Environment.NewLine + "Sum of Numbers are :" + sumofNumbers; 40 41 //Exit button click 1 reference private void btnExit Click (object sender, EventArgs e) 42 43 Application.Exit);//close application 45 100 % Error List Data Tools Operations Output

======================================================

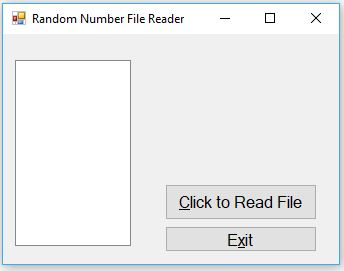

Output : Run application using F5 and will get the screen as shown below

Screen 1 :

一口 Random Number File Reader × Click to Read File Exit

Screen 2 :Screen showing open file dialog

Open This PC Desktop vSearch Desktop Organize▼ New folder pnpiviyaamin pvtnoniviain pytnoniviaini Quick access Desktopメ Downloads 囹Documents pythonMain2 pythonMain3 randomNumbers Pictures Morning Mantra Old Songs Sairat Video SQL Server Mana twoDsum USerlnfo sample OneDrive This PC File name: sample Open Cancel

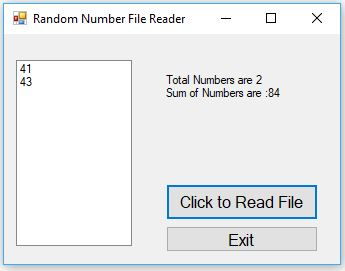

Screen 3:Screen showing total numbers and sum of numbers

Random Number File Reader 41 43 Total Numbers are 2 Sum of Numbers are:84 Click to Read File Exit

Screen 4 :Sample.txt

sample-Notepad File Edit Format View Help 41 43

NOTE : PLEASE FEEL FREE TO PROVIDE FEEDBACK ABOUT THE SOLUTION.
