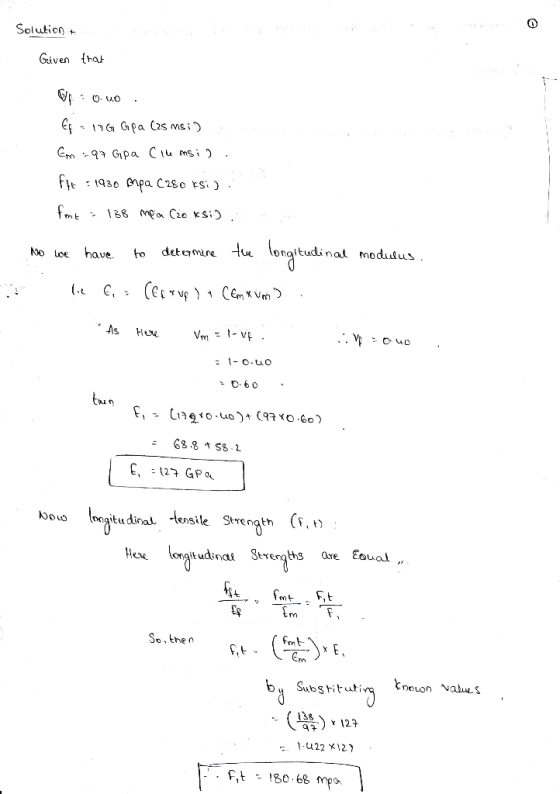

Determine the longitudinal modulus E1 and longitudinal tensile strength F1t of a unidirectional s...
Determine the longitudinal modulus E1 and longitudinal tensile strength F1t of a unidirectional silicon carbide/ceramic composite with properties Vf =0.40 Ef = 172 GPa (25 Msi) Em=97 GPa (14 Msi) Fft = 1930 MPa (280 ksi) Fmt = 138 MPa (20 ksi) Assume linear elastic behavior for both fiber and matrix. Everything else being equal, how does the strength F1t vary with fiber modulus E1f? (Note: Strength is defined here as the composite stress at failure initiation of one of the phrases.)
Homework Answers
Add Answer to:
Determine the longitudinal modulus E1 and longitudinal tensile strength F1t of a unidirectional s...
Subject: Composite Materials Determine the longitudinal modulus E1 and longitudinal tensile strength F1t of a unidirectional...
Subject: Composite Materials
Determine the longitudinal modulus E1 and
longitudinal tensile strength F1t of a unidirectional
carbon/glass composite with the properties:
Vf = 0.45 , E1f = 235 GPa , Em
= 70 Gpa , Fft = 3500 MPa , Fmt = 140 MPa
(*Note: Strength is defined as the composite stress at failure
initiation in one of the phases.)
Determine the longitudinal modulus Ej and longi- tudinal tensile strength F, of a unidirectional carbon/ 5.3 glass composite with the...
A unidirectional glass fiber-epoxy matrix composite containing 65 vol% fiber, calculate the modulus of elasticity in...
A unidirectional glass fiber-epoxy matrix composite containing 65 vol% fiber, calculate the modulus of elasticity in the longitudinal direction and the transverse direction. Epoxy has a density of 1.54 g/cm3, modulus of elasticity of 3.5 GPa, yield strength of 60 MPa, tensile strength of 95 MPa, and Poisson’s ratio of 0.33. Glass fiber has a Poisson’s ratio of 0.22.
(b) For a unidirectional composite lamina with a 60% fibre volume fraction, the fibres are circular...
(b) For a unidirectional composite lamina with a 60% fibre volume fraction, the fibres are circular and are packed in a square array. Assume there is no void. The Young's modulus of the fibre is 180 GPa, the shear modulus of the fibre is 20 GPa. The Young's modulus of the matrix is 30 GPa, the shear modulus of the matrix is 4 GPa. The tensile strengths of fibre and matrix are 2000 MPa and 100 MPa separately. (1) Find...
2. For a graphite/epoxy unidirectional lamina (un-oriented lamina), find the following: ,--3 MPa 1) Compliance matrix...
2. For a graphite/epoxy unidirectional lamina (un-oriented lamina), find the following: ,--3 MPa 1) Compliance matrix 2) Stiffness matrix 3) Resultant strain under the applied stresses 12-4 MP 2 MPa τ12 Typical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphitel epoxy epoxy Property Symbol Units epoxy Fiber volume fraction Longitudinal elastic modulus E Transverse elastic modulus E, Major Poisson's ratio Shear modulus Ultimate longitudinal tensile (σ1he 0.45 0.70 10.30 7.17 GPa GPa 38.6 8.27 18.50...
3. A [0/90]s graphite/epoxy laminate is subjected to a tensile normal load of 1N/m in the x- dire...
3. A [0/90]s graphite/epoxy laminate is subjected to a tensile normal load of 1N/m in the x- direction (the direction parallel to the fibers in the 0° ply). Assume the thickness of each ply is 5 mm and use properties of unidirectional graphite/epoxy lamina from the table. a) Calculate the resultant strains of the laminate b) Calculate the global stresses in the laminate c) Calculate the principal stresses (stresses in material directions) of the top layer. Typical Mechanical Properties of...
Find the longitudinal tensile strength of resulting composite. Given: Ti-aluminum metal matrix composite- Fiber volume f...
Find the longitudinal tensile strength of resulting
composite.
Given: Ti-aluminum metal matrix composite- Fiber volume
fraction: 27%,Ti matrix: at 427°C, Em = 87.5 GPa, νm = 0.3. Alumina
fibers: at 427°C, Ef = 379 GPa, νf = 0.27
Ti-aluminum metal matrix composite Fiber volume fraction: 27% Ti matrix: at 427°C, Em 87.5 GPa, v 0.3 . Alumina fibers: at 427"C, E,-379 GPa, v,-0.27 o Find the longiiudinal tnsile sirengih of resuling cormpositc
Ti-aluminum metal matrix composite Fiber volume fraction: 27%...
please solve 2 and 3 1- The reduced stiffness matrix [Q] is given for a unidirectional...
please solve 2 and 3
1- The reduced stiffness matrix [Q] is given for a unidirectional lamina as follows: 5.681 0.3164 0 ] [Q]=0.3164 1.217 0 Msi I 0 0 0.6006 Calculate the four engineering constants E1, E2, V12, G12 of the lamina. 2- Calculate the transformed reduced stiffness [Q] for the above problem for 0 = 30°. Glass 3- A glass/epoxy lamina consists of 70% fiber volume fraction. Use properties of glass and epoxy from the tables below to...
Chapter 16, Problem 16.17 Compute the longitudinal tensile strength of an aligned glass fiber-epoxy matrix composite...
Chapter 16, Problem 16.17 Compute the longitudinal tensile strength of an aligned glass fiber-epoxy matrix composite in which the average fiber diameter and length are 0.0135 mm (0.53 x 10-4 in.) and 1.58 mm (0.062 in.), respectively, and the volume fraction of fibers is 0.33. Assume that (1) the fiber-matrix bond strength is 100 MPa (14,500 psi), (2) the fracture strength of the fibers is 3500 MPa (5 x 105 psi), and (3) the matrix stress at composite failure is...
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and ep...
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and epoxy from Table 3.1 and Table 3.2. Assume the fibers have circular cross-section and are in a square array packing. 1-52.0-$01674870 225 47 Find 208 Mechanics of Composite Materials, Second Edi Convert PO or Excel Orl Select PDF I TABLE 3.1 Typical Properties of Fibers (SI System of Units) Units Graphite Glass...
235 Find the off-axis shear strength and mode of failure of a 60 boron/ epoxy lamina. Use the pro...
235 Find the off-axis shear strength and mode of failure of a 60 boron/ epoxy lamina. Use the properties of a unidirectional boron/epoxy lamina from Table 2.1. Apply the maximum stress failure, maximum strain, Tsai-Hill, and Tsai-Wu failure theories. TABLE 2.1 Tvpical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphite/ Property SymbolUnits epoxy epoxy epoxy Fiber volume fraction Longitudinal elastic modulus Transverse elastic modulus Major Poisson's ratio Shear modulus Ultimate longitudinal tensile strength Ultimate longitudinal...
Subject: Composite Materials
Determine the longitudinal modulus E1 and
longitudinal tensile strength F1t of a unidirectional
carbon/glass composite with the properties:
Vf = 0.45 , E1f = 235 GPa , Em
= 70 Gpa , Fft = 3500 MPa , Fmt = 140 MPa
(*Note: Strength is defined as the composite stress at failure
initiation in one of the phases.)
Determine the longitudinal modulus Ej and longi- tudinal tensile strength F, of a unidirectional carbon/ 5.3 glass composite with the...
(b) For a unidirectional composite lamina with a 60% fibre volume fraction, the fibres are circular and are packed in a square array. Assume there is no void. The Young's modulus of the fibre is 180 GPa, the shear modulus of the fibre is 20 GPa. The Young's modulus of the matrix is 30 GPa, the shear modulus of the matrix is 4 GPa. The tensile strengths of fibre and matrix are 2000 MPa and 100 MPa separately. (1) Find...
2. For a graphite/epoxy unidirectional lamina (un-oriented lamina), find the following: ,--3 MPa 1) Compliance matrix 2) Stiffness matrix 3) Resultant strain under the applied stresses 12-4 MP 2 MPa τ12 Typical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphitel epoxy epoxy Property Symbol Units epoxy Fiber volume fraction Longitudinal elastic modulus E Transverse elastic modulus E, Major Poisson's ratio Shear modulus Ultimate longitudinal tensile (σ1he 0.45 0.70 10.30 7.17 GPa GPa 38.6 8.27 18.50...
3. A [0/90]s graphite/epoxy laminate is subjected to a tensile normal load of 1N/m in the x- direction (the direction parallel to the fibers in the 0° ply). Assume the thickness of each ply is 5 mm and use properties of unidirectional graphite/epoxy lamina from the table. a) Calculate the resultant strains of the laminate b) Calculate the global stresses in the laminate c) Calculate the principal stresses (stresses in material directions) of the top layer. Typical Mechanical Properties of...
Find the longitudinal tensile strength of resulting
composite.
Given: Ti-aluminum metal matrix composite- Fiber volume
fraction: 27%,Ti matrix: at 427°C, Em = 87.5 GPa, νm = 0.3. Alumina
fibers: at 427°C, Ef = 379 GPa, νf = 0.27
Ti-aluminum metal matrix composite Fiber volume fraction: 27% Ti matrix: at 427°C, Em 87.5 GPa, v 0.3 . Alumina fibers: at 427"C, E,-379 GPa, v,-0.27 o Find the longiiudinal tnsile sirengih of resuling cormpositc
Ti-aluminum metal matrix composite Fiber volume fraction: 27%...
please solve 2 and 3
1- The reduced stiffness matrix [Q] is given for a unidirectional lamina as follows: 5.681 0.3164 0 ] [Q]=0.3164 1.217 0 Msi I 0 0 0.6006 Calculate the four engineering constants E1, E2, V12, G12 of the lamina. 2- Calculate the transformed reduced stiffness [Q] for the above problem for 0 = 30°. Glass 3- A glass/epoxy lamina consists of 70% fiber volume fraction. Use properties of glass and epoxy from the tables below to...
Chapter 16, Problem 16.17 Compute the longitudinal tensile strength of an aligned glass fiber-epoxy matrix composite in which the average fiber diameter and length are 0.0135 mm (0.53 x 10-4 in.) and 1.58 mm (0.062 in.), respectively, and the volume fraction of fibers is 0.33. Assume that (1) the fiber-matrix bond strength is 100 MPa (14,500 psi), (2) the fracture strength of the fibers is 3500 MPa (5 x 105 psi), and (3) the matrix stress at composite failure is...
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and epoxy from Table 3.1 and Table 3.2. Assume the fibers have circular cross-section and are in a square array packing. 1-52.0-$01674870 225 47 Find 208 Mechanics of Composite Materials, Second Edi Convert PO or Excel Orl Select PDF I TABLE 3.1 Typical Properties of Fibers (SI System of Units) Units Graphite Glass...
235 Find the off-axis shear strength and mode of failure of a 60 boron/ epoxy lamina. Use the properties of a unidirectional boron/epoxy lamina from Table 2.1. Apply the maximum stress failure, maximum strain, Tsai-Hill, and Tsai-Wu failure theories. TABLE 2.1 Tvpical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphite/ Property SymbolUnits epoxy epoxy epoxy Fiber volume fraction Longitudinal elastic modulus Transverse elastic modulus Major Poisson's ratio Shear modulus Ultimate longitudinal tensile strength Ultimate longitudinal...
