Please use MATLAB to solve Make a 3-D mesh plot of the function z--cos (2R) in the domain -5sx<5 and -5sys5 , where R = 2 e02R ' Make a 3-D mesh plot of the function z--cos (2R) in the do...

Question

Question

Please use MATLAB to solve

Make a 3-D mesh plot of the function z--cos (2R) in the domain -5sx<5 and -5sys5 , where R = 2 e02R

engineering Electrical-Engineering

Answer 1

Answer #1

Hello,
Please find the answer attached as under. Please give a thumbs up rating if you find the answer useful! Have a rocking day ahead!

********* Matlab Code *********

[X,Y] = meshgrid(-5:.1:5);
R = sqrt(X.^2 + Y.^2);
Z = -cos(2*R)./exp(0.2*R);
mesh(X,Y,Z)
xlabel('X');
ylabel('Y');
zlabel('Z');

******** End of Code ********

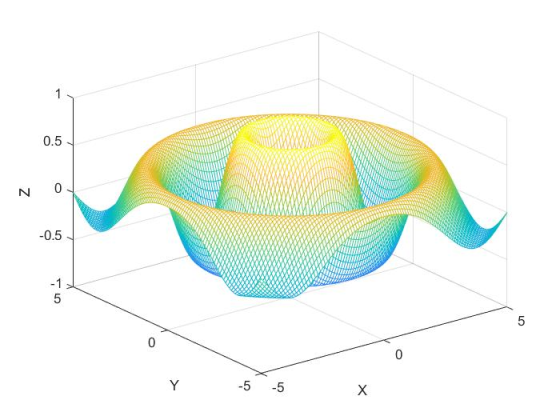

Output:

0.5 N 0 tv 0.5 -1 5 -5

*****************************************************************
PS: Please do not forget the thumbs up!
