Question

(8 points) A company has a network address of 178.145.20.64 with a subnet mask of 255.255.255.192. The company wants to break

5. a. Subnet Mask: b. Number of hosts per subnet: C. First Valid Host Address Last Valid Host Address Subnet Broadcast Addres

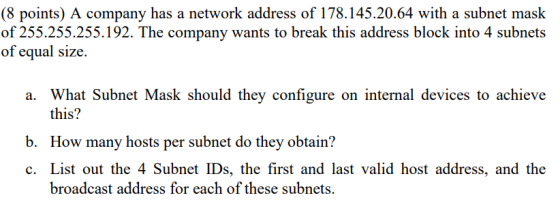

(8 points) A company has a network address of 178.145.20.64 with a subnet mask of 255.255.255.192. The company wants to break this address block into 4 subnets of equal size. a. What Subnet Mask should they configure on internal devices to achieve this? b. How many hosts per subnet do they obtain? c. List out the 4 Subnet IDs, the first and last valid host address, and the broadcast address for each of these subnets.

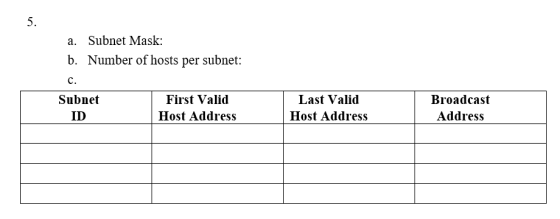

5. a. Subnet Mask: b. Number of hosts per subnet: C. First Valid Host Address Last Valid Host Address Subnet Broadcast Address ID
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

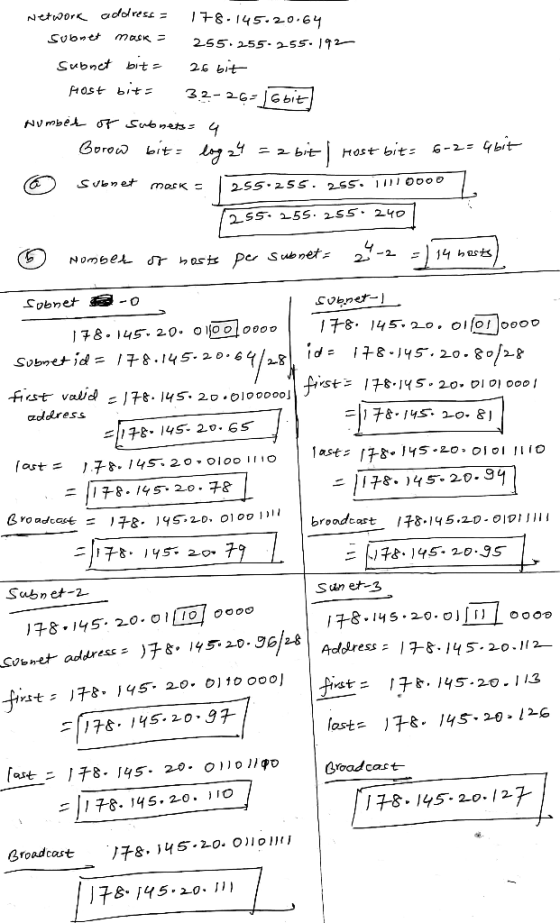

Subnet bit- 2 bit Sobnetid - I7g.iyS.2 0.6 ddress 二|148.145. 20 구& ニト)チと. ) 45-20 .35 Sun e3 178-145.20 o ooo0 Subn et-2 138:

0 0
Add a comment
