Homework Answers
Add Answer to:

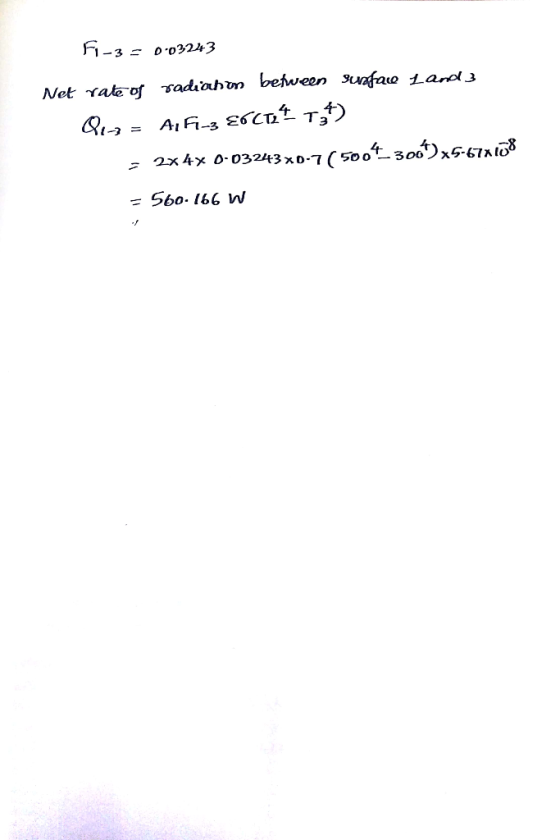

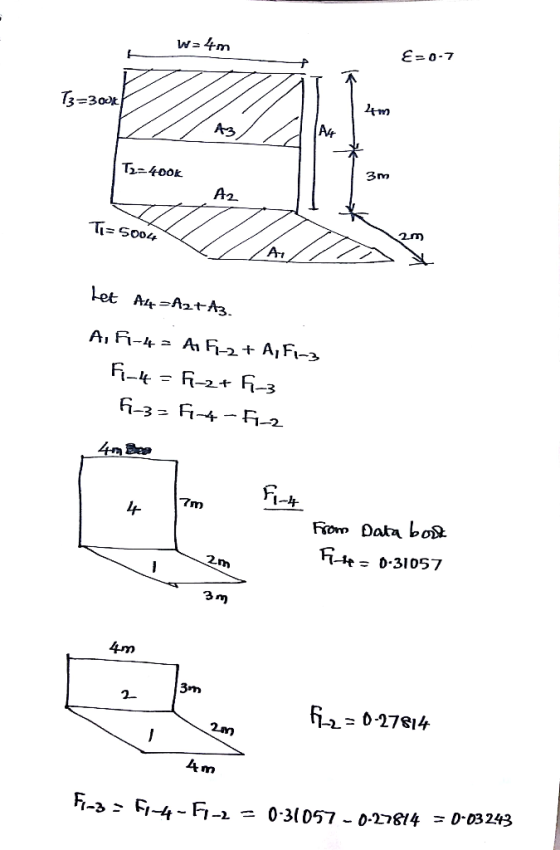

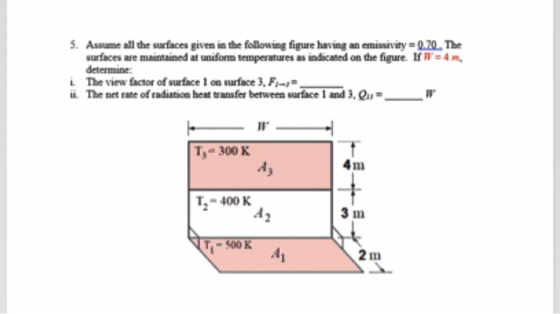

Assume all the surfaces given in the following figure having an emissivity- 0.20The surfaces are maintained at uniform temperatures as indicated on the figure. If IW-4M determine i The view facto...
