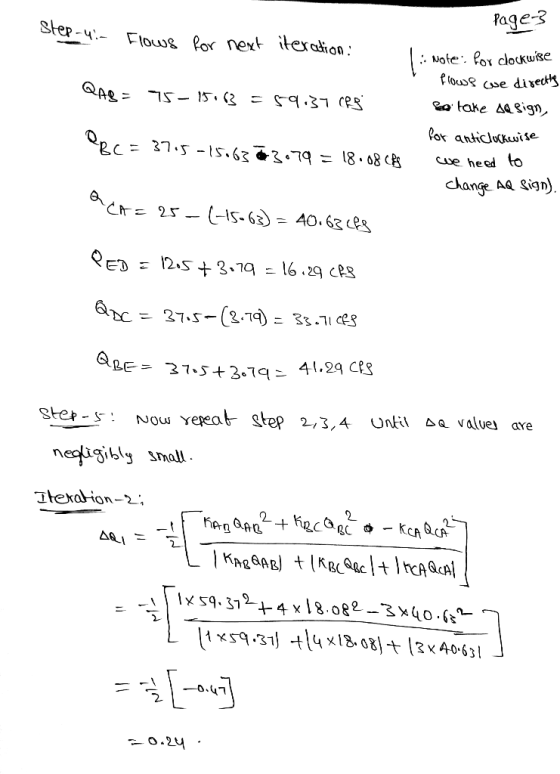

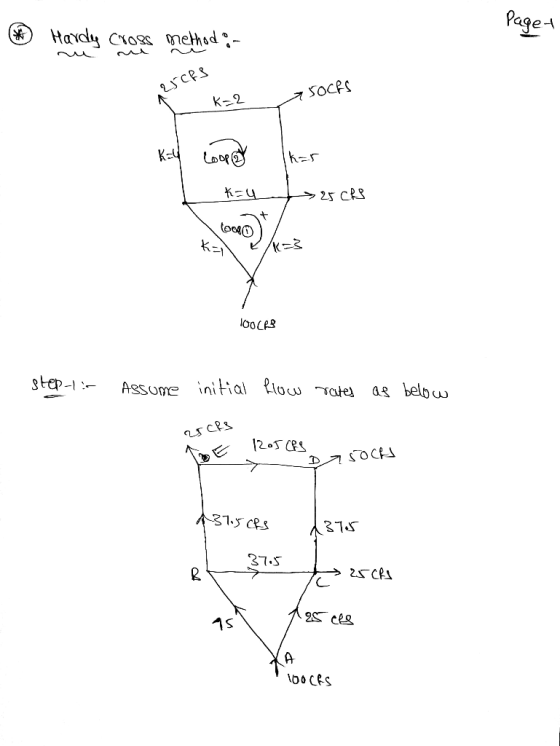

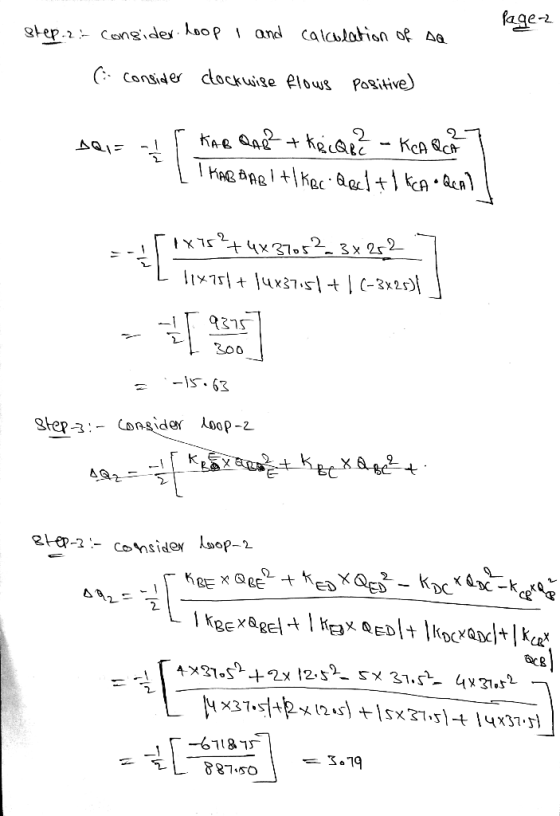

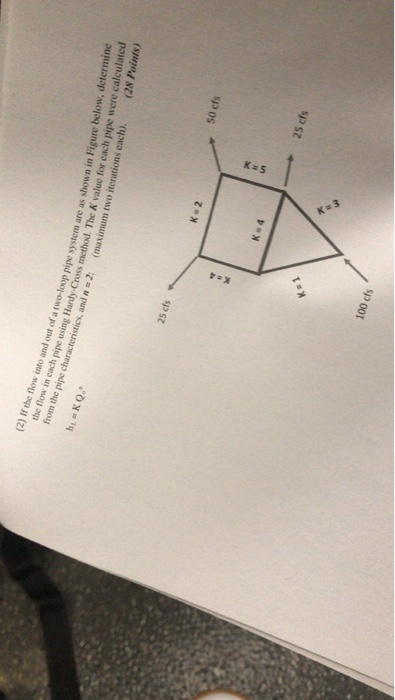

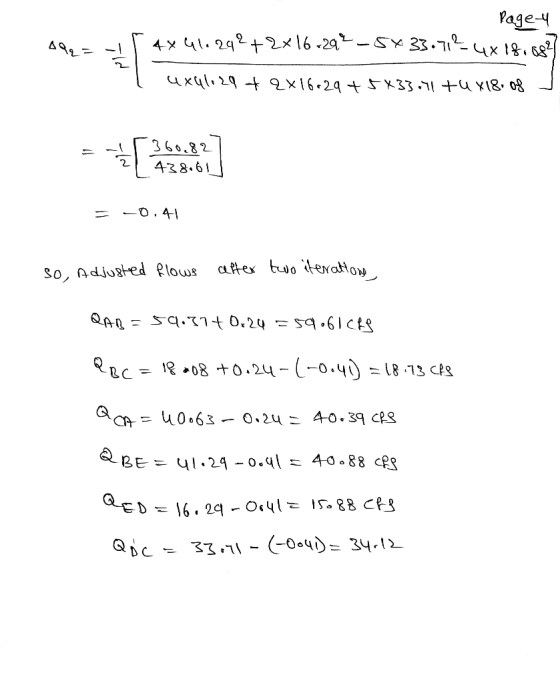

re belowcalculated (2) If the flow into and out of a two-loop pipe system are as shown in the flow in each pipe using Hardy Cross method. The K value for each pipe from the pipe characteristics,...
lculate the flow in each pipe using Hardy-Cross method. The diameter (inch) and length (feet) of...
lculate the flow in each pipe using Hardy-Cross method. The diameter (inch) and length (feet) of pipe is given as shown in figure. Use Hazen william equation and consider C 0.35 cfs 0.42 cfs 2300 ft 12 in. 3.26 cfs 2 1100 ft 12 in. E 2.0 cfs 0.49 cfs
Quick answer no explination needed 1-In the loop (Hardy Cross) method of pipe system analysis, which...
Quick answer no explination needed 1-In the loop (Hardy Cross) method of pipe system analysis, which equation is expressed in terms of flows in closed loops within the network? Hazen-Williams Darcy-Weisbach Energy Continuity 2-Modern computer software for analyzing pipe networks use different solution techniques from the Hardy Cross method, and therefore result in much more accurate results. True False 3-The procedure of analyzing a pipe network usually aims at finding the flow distribution in the network. True False
Please solve this question with the Hardy Cross Method? Determine the discharge in each pipe of...
Please solve this question with the Hardy Cross Method?
Determine the discharge in each pipe of the following network shown in figure using Hardy-Cross method and update the figure with a similar figure. The K values indicated in the figure below. K-41B Q = 0.015 m's K=30 Q=0.015 m's 0.03 m/s A K=20 Q = 0m's K=100 K=50 0.015 m's Q = 0.015 m's 0
III. Explicit the Hardy-Cross method to determine the flow rate in each pipe of the following...
III. Explicit the Hardy-Cross method to determine the flow rate in each pipe of the following hydraulic system: 02 2 (4) (1) (5) 303 4 (3) 01 (2) 1
Solve Problem 12.3, using the Cross technique. Problem 12.3 In the branched pipe system shown in...
Solve Problem 12.3, using the Cross technique. Problem 12.3 In the branched pipe system shown in Fig. 12.8, 850 /min of water at 10°C is flowing in a DN 100 Schedule 40 pipe at A. The flow splits into two DN 50 Schedule 40 pipes as shown and then rejoins at B. Calculate (a) the flow rate in each of the branches and (b) the pressure difference pA-pB. Include the effect of the minor losses in the lower branch of...
Using EPANET2.0 Software, determine the flow rate in each pipe for the simple network shown in...
Using EPANET2.0 Software, determine the flow rate in each pipe
for the simple network shown in the Figure. Assume the fully
turbulent flow exists for all pipes. The pipe lengths, diameters
and the Darcy-Weisbachand Hazen-William roughness factor f for each
pipe are given in the Table.
60U/s 40L/ Question-1 Using EPANET 2.0 Software, determine the flow rate in each pipe for the simple network shown in the Figure. Assume the fully turbulent flow exists for all pipes. The pipe lengths,...
Please do part 2 1. For the parallel pipe system shown, each pipe is cast iron,...
Please do part 2
1. For the parallel pipe system shown, each pipe is cast iron, and the pressure drop from point 1-to-2 is 15 lbf/in. Compute the total flow rate from 1 to 2 assuming minor losses are negligible. The fluid is water at 20°C. D = 4 in; L = 200 ft D = 3 in; L = 175 ft 2. If the two pipes in problem 1 are installed in series with the 4-in pipe upstream of...
Parallel system and determine the 0.05 m/s flow distribution for a 4 parallel pipe system when Qi...
example provided
parallel system and determine the 0.05 m/s flow distribution for a 4 parallel pipe system when Qin D, mm 50 75 100 125 L, m 50 100 150 200 Element 0.02 0.03 0.02 0.03 2.5 Assuming that 0 is known, the unknowns in the above equations are Q1, 02, and are solved simultaneously in the manner shown in the following example. and ΔΗ H,-H, EXAMPLE 10.4 Find the flow distribution and change in hydraulic grade line for the...
3. (20 pts) Chapter 8 Viscous Flow in Pipes A pipe system carries water from a...
3. (20 pts) Chapter 8 Viscous Flow in Pipes A pipe system carries water from a reservoir and discharges it as a free jet, as shown. The system consists of piping made from 200 mm diameter commercial steel pipe with two 90 deg elbows with K=0.4m and an inlet minor loss Ki-0.05 1) (4 pts) Assuming ideal fluid model within the reservoir, show that pressure at point A is V PA = Pamb + y(30 m) - P2 and draw...
L 2. Steady statemass balance: Water is flowing at steady state in a 0.1 meter-diameter pipe...
L 2. Steady statemass balance: Water is flowing at steady state in a 0.1 meter-diameter pipe with a maximum velocity (turbulent profile) of 0.3 meters/sec. The pipe then goes through an expansion, to where it is then flowing in a 0.5 meter-diameter pipe, and the flow regime has changed from turbulent to laminar. In the second section of pipe, calculate the velocity as (a) block flow profile (Vavg), and (b) maximum velocity in laminar flow profile? HINT: you will need...
lculate the flow in each pipe using Hardy-Cross method. The diameter (inch) and length (feet) of pipe is given as shown in figure. Use Hazen william equation and consider C 0.35 cfs 0.42 cfs 2300 ft 12 in. 3.26 cfs 2 1100 ft 12 in. E 2.0 cfs 0.49 cfs
Please solve this question with the Hardy Cross Method?
Determine the discharge in each pipe of the following network shown in figure using Hardy-Cross method and update the figure with a similar figure. The K values indicated in the figure below. K-41B Q = 0.015 m's K=30 Q=0.015 m's 0.03 m/s A K=20 Q = 0m's K=100 K=50 0.015 m's Q = 0.015 m's 0
III. Explicit the Hardy-Cross method to determine the flow rate in each pipe of the following hydraulic system: 02 2 (4) (1) (5) 303 4 (3) 01 (2) 1
Solve Problem 12.3, using the Cross technique. Problem 12.3 In the branched pipe system shown in Fig. 12.8, 850 /min of water at 10°C is flowing in a DN 100 Schedule 40 pipe at A. The flow splits into two DN 50 Schedule 40 pipes as shown and then rejoins at B. Calculate (a) the flow rate in each of the branches and (b) the pressure difference pA-pB. Include the effect of the minor losses in the lower branch of...
Using EPANET2.0 Software, determine the flow rate in each pipe
for the simple network shown in the Figure. Assume the fully
turbulent flow exists for all pipes. The pipe lengths, diameters
and the Darcy-Weisbachand Hazen-William roughness factor f for each
pipe are given in the Table.
60U/s 40L/ Question-1 Using EPANET 2.0 Software, determine the flow rate in each pipe for the simple network shown in the Figure. Assume the fully turbulent flow exists for all pipes. The pipe lengths,...
Please do part 2
1. For the parallel pipe system shown, each pipe is cast iron, and the pressure drop from point 1-to-2 is 15 lbf/in. Compute the total flow rate from 1 to 2 assuming minor losses are negligible. The fluid is water at 20°C. D = 4 in; L = 200 ft D = 3 in; L = 175 ft 2. If the two pipes in problem 1 are installed in series with the 4-in pipe upstream of...
example provided
parallel system and determine the 0.05 m/s flow distribution for a 4 parallel pipe system when Qin D, mm 50 75 100 125 L, m 50 100 150 200 Element 0.02 0.03 0.02 0.03 2.5 Assuming that 0 is known, the unknowns in the above equations are Q1, 02, and are solved simultaneously in the manner shown in the following example. and ΔΗ H,-H, EXAMPLE 10.4 Find the flow distribution and change in hydraulic grade line for the...
3. (20 pts) Chapter 8 Viscous Flow in Pipes A pipe system carries water from a reservoir and discharges it as a free jet, as shown. The system consists of piping made from 200 mm diameter commercial steel pipe with two 90 deg elbows with K=0.4m and an inlet minor loss Ki-0.05 1) (4 pts) Assuming ideal fluid model within the reservoir, show that pressure at point A is V PA = Pamb + y(30 m) - P2 and draw...
L 2. Steady statemass balance: Water is flowing at steady state in a 0.1 meter-diameter pipe with a maximum velocity (turbulent profile) of 0.3 meters/sec. The pipe then goes through an expansion, to where it is then flowing in a 0.5 meter-diameter pipe, and the flow regime has changed from turbulent to laminar. In the second section of pipe, calculate the velocity as (a) block flow profile (Vavg), and (b) maximum velocity in laminar flow profile? HINT: you will need...
