a) A natural gas fuel contains 80 v/o methane, 10 v/o ethane, and 10 v/o propane. Determine the heat released by combustion of 1m3 of the gas. Assume that products of combustion are CO2 and liquid H2O...

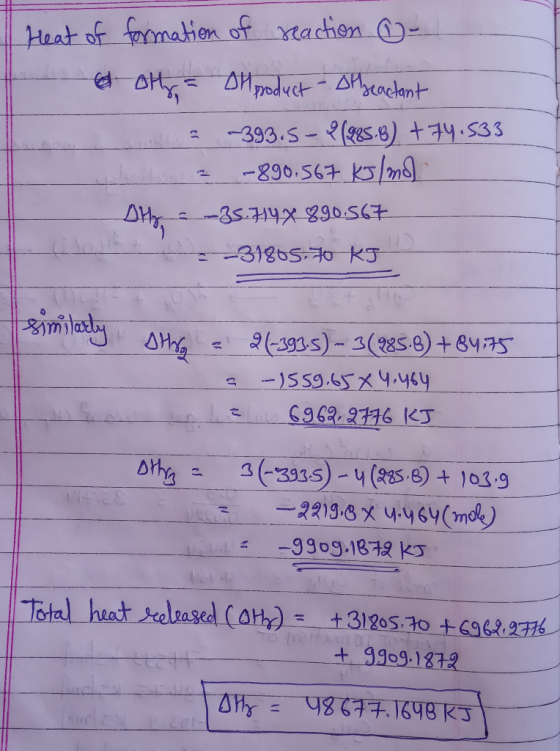

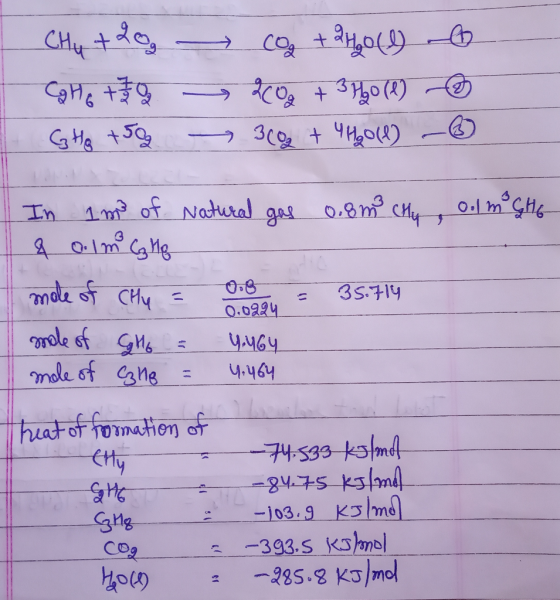

a) A natural gas fuel contains 80 v/o methane, 10 v/o ethane, and 10 v/o propane. Determine the heat released by combustion of 1m3 of the gas. Assume that products of combustion are CO2 and liquid H2O.

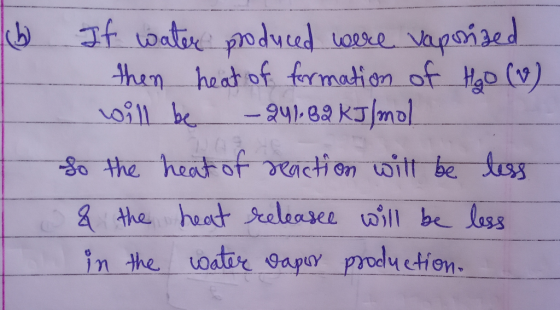

b) How would the answer to part (a) change if the water produced were vaporized?
Homework Answers
Add Answer to:
