Can you solve it. Thanks a laupess filer, with awtoff frequeney wc. The moximu gain of ondl the fitr gain at onqule...

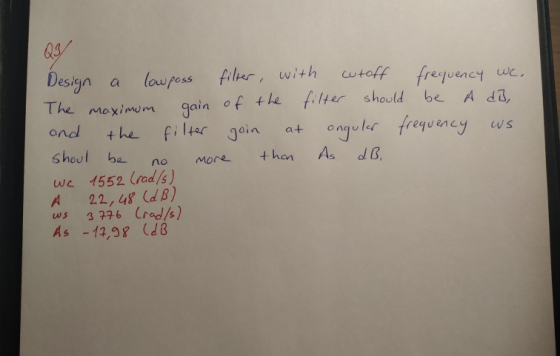

Question 1 Design a lowpass filter, with cutoff frequency wc. The maximum gain of the fitler should be A dB, and the filter gain at angular frequency ws should be no more than As dB. Use as few circui...

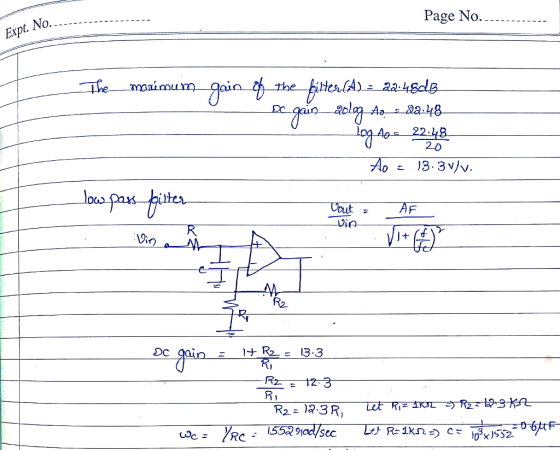

Question 1 Design a lowpass filter, with cutoff frequency wc. The maximum gain of the fitler should be A dB, and the filter gain at angular frequency ws should be no more than As dB. Use as few circuit elements as possible. wc 1552(rad/s) A 22,48 (dB) ws 3776 (rad/s) As -17,98 (dB)
