The potential of SCE electrode = 0.242 V
The potential of Ca ISE cell = 2.868 V - 0.02958 V * Log[Ca2+]
Now, Ecell = ESCE - ECa ISE
i.e. 0.2837 = 0.242 - {2.868 V - 0.02958 V * Log[Ca2+]}
i.e. 0.02958 V * Log[Ca2+] = 2.9097
i.e. Log[Ca2+] = 0.0102
i.e. [Ca2+] = 1.0237 M
A Ca ISE and a SCE were immersed in a standard containing 2.0x10" M Ca**. The cell potential was +0.2714 V. The two...

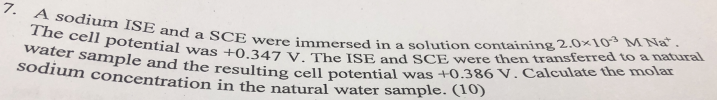

A sodium ISE and a SCE were immersed in a solution containing 2.0x103 M Na. The cell potential was +0.347 V. The ISE and SCE were then transferred to a natural water sample and the resulting cell potential was +0.386 V. Calculate the molar sodium concentration in the natural water sample. (10) 7.
A Mg* liquid membrane ISE and a Ag/AgCl reference electrode were mL of solution containing an unknown concentration of Mg2+. The cell voltage was +0.4960 V. Without removing the electrodes, 10.0 mL of 5.0x10-2 M Mg was the solution and mixed. The new cell voltage was +0.5025 V. Assuming that the Mg has an ideal slope of 0.02958 V; calculate the original Mg2+ concentration.
Potential (mV) [Br](M) 0.300 Calibration data for a bromide ion-selective electrode (ISE) was collected and recorded in the table. The potential of the ISE was measured against a saturated calomel electrode (SCE). All solutions were buffered at a pH of 7.56. A linear calibration curve can be constructed from this data as a plot of potential (in mV) vs. pBr. Determine the slope and y-intercept of such a plot of the calibration data given. -21.2 0.0300 36.2 95.7 0.00300 0.000300...
O. s 2. The tollowing cell is used to determine the concentration of So SCE SO (M, HgSO (saturated)Hg The potential measured in the cell is-0.537V (room temperature). Calculate concentration of SO potential E for HE is 0.244V, The standard Electrode potenial of SCE vs. S
O. s 2. The tollowing cell is used to determine the concentration of So SCE SO (M, HgSO (saturated)Hg The potential measured in the cell is-0.537V (room temperature). Calculate concentration of SO potential E...
In a cell constructed between a compartment containing a zinc electrode immersed in a 0.10 M ZnSO4(aq) solution and a compartment containing a copper electrode immersed in a 0.10 M CuSO4(aq) solution, a.) which electrode will be the anode? b.) what is the standard cell potential? c.) what is the theoretical cell potential with these concentrations? d.) write the line notation for this cell.
If a platinum indicator electrode is used to measure [Cu^22^++]
(standard reduction potential of Cu^22^++ is 0.337 V), and
[Cu^22^++] = 0.0053 M, what is the cell potential (V) if the
reference electrode is SCE and the measurement is taken at 298
K?
Indicator Electrode--Quantification (Homework) Homework Unanswered If a platinum indicator electrode is used to measure [Cu2+] (standard reduction potential of Cu +is 0.337 V), and [Cu2+ o.0053 M, what is the cell potential (V) if the reference electrode...
Question 4 of 4 > Potential (my -21.9 Calibration data for a bromide ion-selective electrode (ISE) was collected and recorded in the table. The potential of the ISE was measured against a saturated calomel electrode (SCE). All solutions were buffered at a pH of 7.56. A linear calibration curve can be constructed from this data as a plot of potential (in mV) vs. pBr. Determine the slope and y-intercept of such a plot of the calibration data given. [Br"](M) 0.300...
An electrochemical cell is constructed such that on one side a pure nickel electrode is in contact with a solution containing Ni2+ ions at a concentration of 5*10-3 M. The other cell half consists of a pure Fe electrode that is immersed in a solution of Fe2+ ions having a concentration of 0.3 M. At what temperature will the potential between the two electrodes be +0.140 V?
Calibration data for a bromide ion-selective electrode (ISE) was collected and recorded below. The potential of the ISE was measured against a saturated calomel electrode (SCE). All solutions were buffered at a pH of 7.56. A linear calibration curve can be constructed from this data as a plot of potential (in mV) vs. pBr. Determine the slope and y-intercept of such a plot of the calibration data given [Br] (M) Potential (mV) 0.300 0.0300 0.00300 96.4 0.000300 155.1 0.0000300 224.8...
A cell consisting of a saturated calomel electrode and a lead electrode developed a potential of -0.4706 V when immersed in 50.00 mL of a sample. A 5.00 mL addition of standard 0.02 M lead solution caused the potential to shift to -0.4490 V. Calculate the molar concentration of lead in the sample.
