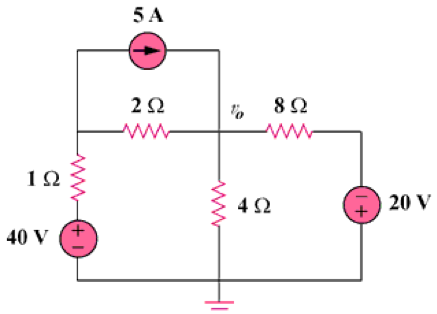

a) Use MultiSim to find Vo in the circuit below. Paste your Multisim circuit showing the value of Vo in the space below.

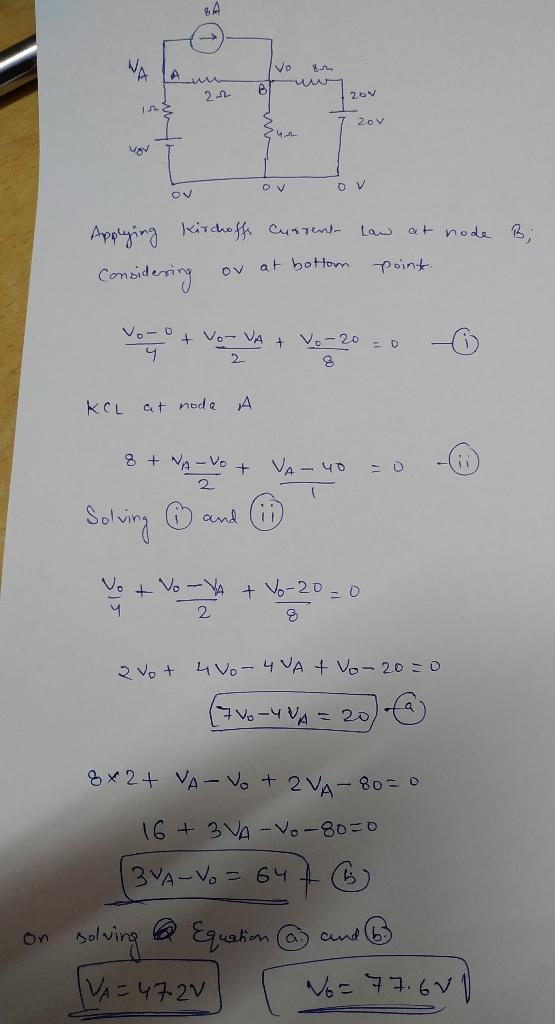

b) Use mesh analysis to solve the same problem by hand. Show your work in the space below. Compare the Multisim answer to that obtained by hand. Are they the same?

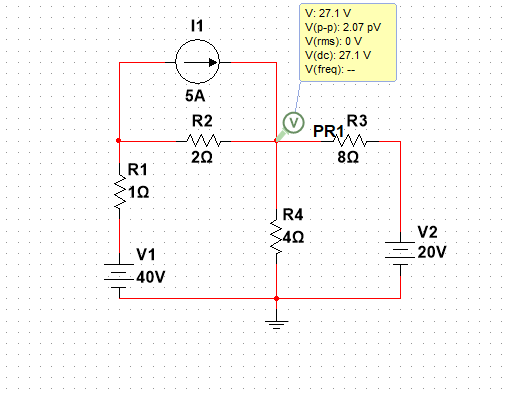

V: 27.1 V V(PP): 2.07 pv V(rms): 0Vv V(dc): 27.1V V(freq): 5A R2 R3 PR1 R1 2Ω 1Ω 8Ω l R4 V2 4Ω V1 20V -40V
Homework Answers
Add Answer to:
a) Use MultiSim to find Vo in the circuit below. Paste your Multisim circuit showing the value of Vo in the space below...
Design the circuit below using Multisim: Then adjust value of V1 and V2 from table below...
Design the circuit below using Multisim:
Then adjust value of V1 and V2 from table below to find Vo:
Please help me with this problem, thank you
R3 100K +15 R2 V2 100K 6 Vo R1 5O-15 Џ 100K V1 Vi (V) V2 (V) +2 +5 +6 +5 +8 +5 +3 -1V +8 -2
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=12.0 K2, R2=9.0 KQ,...
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=12.0 K2, R2=9.0 KQ, R3=1.0 K, R4=1.0 K2, R5=9.0 K and RL=16.8 K. R5 R1 + R4 Vo 14 V1 R2 RL + V2 no R3 Answer: OV Consider the same circuit as above, but with the following parameters: if Vo=40 V, V1=0.2 V, V2=0.5V, R1=7.3 K2, R2=11.9 K2, R3=1.0 K, R4=0.8 K2, R5=10 K2 and RL=17 K2. What is the magnitude of the current 14 through resistor...
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=9.1 K12, R2=9.0 KN,...
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=9.1 K12, R2=9.0 KN, R3=1.2 K12, R4=1.0 K12, R5=9.0 K12 and RL=16.1 K12. R5 R1 w w + R4 Vo 14 1 + v1 R2 RL + V2 win R3 Consider the same circuit as above, but with the following parameters: if Vo=40 V, V1=0.2 V, V2=0.5V, R1=8.3 KN, R2=9.8 K12, R3=1.0 KN, R4=1.1 K12, R5=10 KN and RL=21 KN. What is the magnitude of the current 14...
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=8.3 KO, R2=9.0 KA,...
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=8.3 KO, R2=9.0 KA, R3=0.7 KA, R4=1.0 KN, R5=9.0 KO and RL=16.2 KN. R5 R1 + R4 Vo 14 + + V1 R2 w RL V2 R3 Answer:
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=8.3 K12, R2=9.0 K2,...
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=8.3 K12, R2=9.0 K2, R3=0.7 KS2, R4=1.0 KN, R5=9.0 KN and RL=16.2 KA. R5 R1 w + R4 Vo 14 + V1 R2 RL V2 R3 We were unable to transcribe this image
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 KS,...
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 KS, R2=8 KN, R3=3.4 KA, R4=6 KN, R5=20 KN, R6=2.9 KN, RL=12.5 KN, V1=1V, 12=0.5 mA and V3=3.1 V. R6 R1 R5 VO + RL 12 R2 V1 R3 { R4 w V3 Answer: "V
How do I solve this ? 2. [15 points] For a circuit below, find Voltages and...
How do I solve this ?
2. [15 points] For a circuit below, find Voltages and Currents on R1, R2, R3, R4, R5 and R6. Use either Nodal or Mesh Analysis to solve the circuit. Why you choose Nodal or Mesh Analysis? Vi = 20V, V3 = 20V, R;= 1.0 k1, R= 1.2 k1, R;= 4.1 kN, R = 4.1 kN, R=4.2 kN, R=0.5 k12. R3 R1 R4 V1 V2 HE Hilt R2 R5 R6
For the circuit shown below: In terms of Vo, R1, R2, R3, R4, C1, t, and s what is the time domain...
For the circuit shown below: In terms of Vo, R1, R2, R3, R4, C1, t, and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, ,R3, R4, C1, t, and s what is the s-domain equation for voltage at node out? In terms of Vo, RI, R2, R3, R4, CI, t, and s what is the equation for τ? If the voltage V1 at time-0 is 1 V R1-1...
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K2,...
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K2, R2=8 K2, R3=5.1 K2, R4=6 KN, R5=14 KN, R6=4.2 KS, RL=10.3 KS, V1=1V, 12=0.5 mA and V3=3.2 V. R6 R1 R5 Vo w + * RL + 12 R2 V1 R3 R4 V3 Answer: OV Using the above circuit, but consider the following component values: R1= 2 K12 R2=8 K2, R3=2.9 K2, R4=6 KI2, R5=10.8 K92, R6=15 KO, RL=10 K2, V1=1V, 12=0.5mA and V3=2V....
Design the circuit below using Multisim:
Then adjust value of V1 and V2 from table below to find Vo:
Please help me with this problem, thank you
R3 100K +15 R2 V2 100K 6 Vo R1 5O-15 Џ 100K V1 Vi (V) V2 (V) +2 +5 +6 +5 +8 +5 +3 -1V +8 -2
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=12.0 K2, R2=9.0 KQ, R3=1.0 K, R4=1.0 K2, R5=9.0 K and RL=16.8 K. R5 R1 + R4 Vo 14 V1 R2 RL + V2 no R3 Answer: OV Consider the same circuit as above, but with the following parameters: if Vo=40 V, V1=0.2 V, V2=0.5V, R1=7.3 K2, R2=11.9 K2, R3=1.0 K, R4=0.8 K2, R5=10 K2 and RL=17 K2. What is the magnitude of the current 14 through resistor...
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=9.1 K12, R2=9.0 KN, R3=1.2 K12, R4=1.0 K12, R5=9.0 K12 and RL=16.1 K12. R5 R1 w w + R4 Vo 14 1 + v1 R2 RL + V2 win R3 Consider the same circuit as above, but with the following parameters: if Vo=40 V, V1=0.2 V, V2=0.5V, R1=8.3 KN, R2=9.8 K12, R3=1.0 KN, R4=1.1 K12, R5=10 KN and RL=21 KN. What is the magnitude of the current 14...
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=8.3 KO, R2=9.0 KA, R3=0.7 KA, R4=1.0 KN, R5=9.0 KO and RL=16.2 KN. R5 R1 + R4 Vo 14 + + V1 R2 w RL V2 R3 Answer:
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=8.3 K12, R2=9.0 K2, R3=0.7 KS2, R4=1.0 KN, R5=9.0 KN and RL=16.2 KA. R5 R1 w + R4 Vo 14 + V1 R2 RL V2 R3 We were unable to transcribe this image
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 KS, R2=8 KN, R3=3.4 KA, R4=6 KN, R5=20 KN, R6=2.9 KN, RL=12.5 KN, V1=1V, 12=0.5 mA and V3=3.1 V. R6 R1 R5 VO + RL 12 R2 V1 R3 { R4 w V3 Answer: "V
How do I solve this ?
2. [15 points] For a circuit below, find Voltages and Currents on R1, R2, R3, R4, R5 and R6. Use either Nodal or Mesh Analysis to solve the circuit. Why you choose Nodal or Mesh Analysis? Vi = 20V, V3 = 20V, R;= 1.0 k1, R= 1.2 k1, R;= 4.1 kN, R = 4.1 kN, R=4.2 kN, R=0.5 k12. R3 R1 R4 V1 V2 HE Hilt R2 R5 R6
For the circuit shown below: In terms of Vo, R1, R2, R3, R4, C1, t, and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, ,R3, R4, C1, t, and s what is the s-domain equation for voltage at node out? In terms of Vo, RI, R2, R3, R4, CI, t, and s what is the equation for τ? If the voltage V1 at time-0 is 1 V R1-1...
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K2, R2=8 K2, R3=5.1 K2, R4=6 KN, R5=14 KN, R6=4.2 KS, RL=10.3 KS, V1=1V, 12=0.5 mA and V3=3.2 V. R6 R1 R5 Vo w + * RL + 12 R2 V1 R3 R4 V3 Answer: OV Using the above circuit, but consider the following component values: R1= 2 K12 R2=8 K2, R3=2.9 K2, R4=6 KI2, R5=10.8 K92, R6=15 KO, RL=10 K2, V1=1V, 12=0.5mA and V3=2V....
