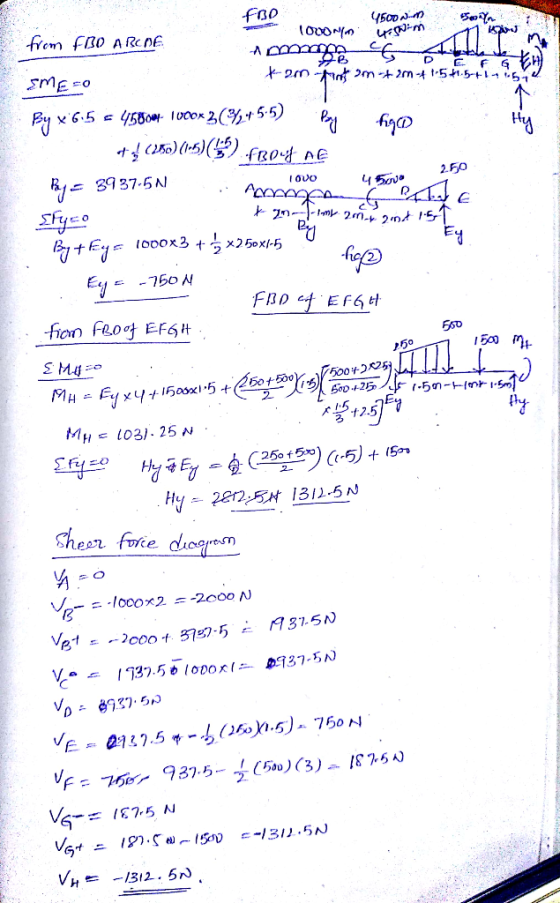

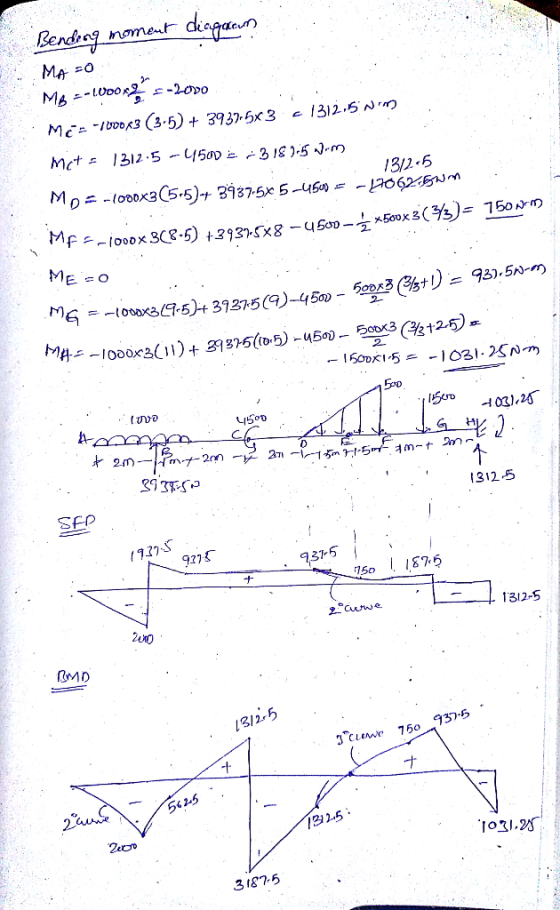

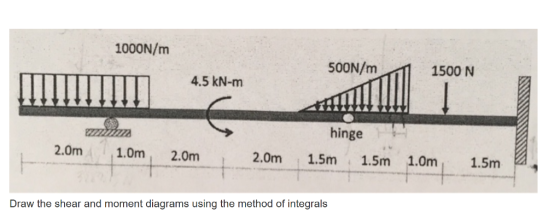

1000N/m 500N/m 1500 N 4.5 kN-m hinge 2.0m 1.5m 1.5m 1.0m1.5m 2.0m1.0m 2.0m Draw the shear and moment diagrams using the...
draw axial force, shear force and bending moment diagrams 2m 4'm 30 kN 2m 50 kN...
draw axial force, shear force and bending moment
diagrams
2m 4'm 30 kN 2m 50 kN 4m A 3 m 1m -3m 1.5m
Draw the shear and bending moment diagrams 10 kN 8 kN 15 kN m 3 m
Draw the shear and bending moment diagrams
10 kN 8 kN 15 kN m 3 m
4. Draw shear force & bending moment diagrams for the shown beams 30 kN 20 kN...
4. Draw shear force & bending moment diagrams for the shown beams 30 kN 20 kN IO kN m DY E 15 kN 1 kip/ft 27 kip.ft 4.5 ft
Draw the shear and moment diagrams. 6 kN 6 kN/m B -3 m -1.5 m 1.5...
Draw the shear and moment diagrams. 6 kN 6 kN/m B -3 m -1.5 m 1.5 m
Draw the shear and moment diagrams. 2.1 kN/m A C B - 5 m - 2...
Draw the shear and moment diagrams. 2.1 kN/m A C B - 5 m - 2 m
Draw the shear force and bending moment diagrams for the beams shown 5 kN 3 kN/m...
Draw the shear force and bending moment diagrams for the beams
shown
5 kN 3 kN/m 3 m 1.5 m1.5mFig. 4 3 m
Draw the shear and moment diagrams. 20 kN/m 80 kN/m A D B C I 3...
Draw the shear and moment diagrams. 20 kN/m 80 kN/m A D B C I 3 m 1 m 1 m
5. Draw the shear and moment diagrams for each member of the frame 6 kN/m B...
5. Draw the shear and moment diagrams for each member of the frame 6 kN/m B 1.5 m 12 KN 1.5 m
for the beam shown, draw the shear and moment diagrams. clearly indicate positions where shear us...
for the beam shown, draw the shear and moment diagrams.
clearly indicate positions where shear us equal to zero and whether
each segment is constant, linear, quadratic, or cubic.
85 kN 24 kN/m Hinge A B ob D С 8 m 8 m 3 m
Example Draw complete shear and moment diagrams for the beam shown in Fig y 36 kN...
Example Draw complete shear and moment diagrams for the beam shown in Fig y 36 kN 18 kN/m kN*m AB A 2m 4 m 2 m 4 m
Example Draw complete shear and moment diagrams for the beam shown in Fig y 36 kN 18 kN/m kN*m AB A 2m 4 m 2 m 4 m
draw axial force, shear force and bending moment
diagrams
2m 4'm 30 kN 2m 50 kN 4m A 3 m 1m -3m 1.5m
Draw the shear and bending moment diagrams
10 kN 8 kN 15 kN m 3 m
4. Draw shear force & bending moment diagrams for the shown beams 30 kN 20 kN IO kN m DY E 15 kN 1 kip/ft 27 kip.ft 4.5 ft
Draw the shear and moment diagrams. 6 kN 6 kN/m B -3 m -1.5 m 1.5 m
Draw the shear and moment diagrams. 2.1 kN/m A C B - 5 m - 2 m
Draw the shear force and bending moment diagrams for the beams
shown
5 kN 3 kN/m 3 m 1.5 m1.5mFig. 4 3 m
Draw the shear and moment diagrams. 20 kN/m 80 kN/m A D B C I 3 m 1 m 1 m
5. Draw the shear and moment diagrams for each member of the frame 6 kN/m B 1.5 m 12 KN 1.5 m
for the beam shown, draw the shear and moment diagrams.
clearly indicate positions where shear us equal to zero and whether
each segment is constant, linear, quadratic, or cubic.
85 kN 24 kN/m Hinge A B ob D С 8 m 8 m 3 m
Example Draw complete shear and moment diagrams for the beam shown in Fig y 36 kN 18 kN/m kN*m AB A 2m 4 m 2 m 4 m
Example Draw complete shear and moment diagrams for the beam shown in Fig y 36 kN 18 kN/m kN*m AB A 2m 4 m 2 m 4 m
