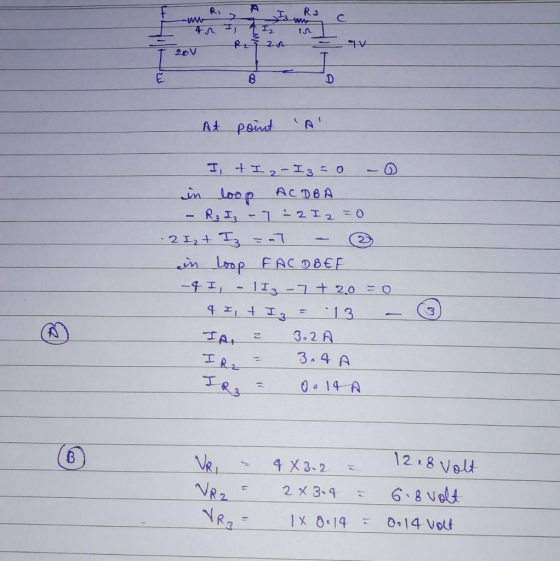

1) For the following circuit: a) use Kirchoff's rules to solve for the currents flowing in the circuit, be sure to l...
1) For the following circuit: a) use Kirchoffs rules to solve for the currents flowing in...

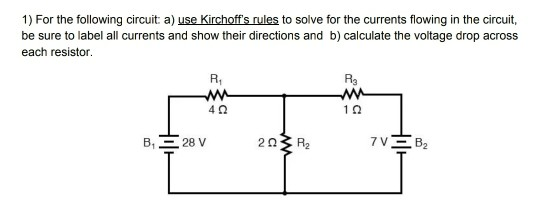

1) For the following circuit: a) use Kirchoffs rules to solve for the currents flowing in the circuit, be sure to label all currents and show their directions and b) calculate the voltage drop across each resistor. R1 R3 40 1 2 B, 28 V 7 V R2 20 B2 2) The 42 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the values of the three resistors below? b) what is the current...
Use Kirchoff’s rules to solve for the currents in the circuit shown. Be sure to label...
Use Kirchoff’s rules to solve for the currents in the circuit
shown. Be sure to label your answers clearly.
1) Use Kirchoff's rules to solve for the currents in the circuit shown. Be sure to label your an swers clearly. (6 pts.) la co nsole to share the core in the drait tom. Be ware bibel your en
From the circuit shown below, (a) use KCL and KVL to solve for the three currents....
From the circuit shown below,
(a) use KCL and KVL to solve for the three currents.
(b) With the given data below and the two currents flowing
clockwise, determine both currents using mesh analysis and the
voltages across each resistor.
r1= 3 Ohms
r2= 7 Ohms
r3= 2 Ohms
r4= 8 Ohms
a M 10 V 30 il 222 i2 722 892 i3 12 V W
please help with problems 7 and 8, I am extremely confused! Part 2: Kirchhoff's Rules For...
please help with problems 7 and 8, I am extremely
confused!
Part 2: Kirchhoff's Rules For the circuit shown below, the directions of the currents through the circuit elements has been chosen arbitrarily. Using Kirchhoff's rules, you will determine the actual currents through the circuit elements. (Yes, this circuit could be analyzed using equivalent resistance, but don't do it that way.) R1: 752 Kirchhoff's Junction Rule 4) Start by choosing a junction. Write Kirchhoft's Junction rule for that junction below...
Problem 2 (15 points) Use the circuit given to answer the following questions. a. On the...
Problem 2 (15 points) Use the circuit given to answer the following questions. a. On the figure, identify and label the different currents in this circuit. Be sure to give them directions. [2 point] b. Use Kirchoff's loop rule to write down equations for all 3 possible loops that could be used to solve for the currents in this circuit (You do not need to solve them!) 19 points = V, - IR, - V2 - IR4 so Vo vz...
marks. Question 2 is for Extra Credit! Use Kirchoff's Rules. Show full working and make up...
marks. Question 2 is for Extra Credit! Use Kirchoff's Rules. Show full working and make up a table with all (i) currents (and directions on drawing) through, (ii) voltages across and the (iii) power dissipated by the resistances R1, R2 and R3. Do not do your problem on this sheet. (1) 100 2012 Rz 608 9ον 10.12.
Solve this circuit using node-voltage method. Determine the currents through all the elements and voltages across...
Solve this circuit using node-voltage method. Determine the
currents through all the elements and voltages across all elements.
Verify that the total power developed equals the total power
absorbed
Without repeating the node-voltage analysis, predict the node
voltages at nodes d, c, b and g, if node a was selected as the
reference node (or ground).
R2 560 n R, 1 kn R 430 Vs a ww R 820 n ww R3 2.2 kn V6R430 R, 1.5 k Rs 820...
Use Kirchoff's laws to determine the unknown currents in the circuit shown. RI R2 + Vi...
Use Kirchoff's laws to determine the unknown currents in the circuit shown. RI R2 + Vi iz il V R3 + +1 iz ΣμV,
1. Kirchoff's Rules See Figure 1. The circuit consists of two batteries and five resistors. The...
1. Kirchoff's Rules See Figure 1. The circuit consists of two batteries and five resistors. The terminal voltage of each battery is specified and the resistance value of each resistor is given. Find the potential difference Vab, that is, V- Va. 2. Electric Potential R -1. R24 Ryan cizut Voilor R,= R₂:22 R₂=R4 = 4.2 Rs = 3.0 V. - 5 V, 20v Figure 1 Figure 4 C, C-1 uf Ccy 2uF V-10v Figure 5 Figure 2 Figure 6 C-2...
1) In the circuit below the currents are named A, and lc The current direction is determined by the source (out of positive terminal) in the middle and right branches and is clockwise in the left bra...
1) In the circuit below the currents are named A, and lc The current direction is determined by the source (out of positive terminal) in the middle and right branches and is clockwise in the left branch · IA flows through R2 and R1 Is flows through R4 and Vb cflows through R3, Vc AB R2 R3 R4 R1 Vb a) Draw the circuit and show the 3 currents described above, including arrows showing the current direction. Show the voltage...
1) For the following circuit: a) use Kirchoffs rules to solve for the currents flowing in the circuit, be sure to label all currents and show their directions and b) calculate the voltage drop across each resistor. R1 R3 40 1 2 B, 28 V 7 V R2 20 B2 2) The 42 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the values of the three resistors below? b) what is the current...
Use Kirchoff’s rules to solve for the currents in the circuit
shown. Be sure to label your answers clearly.
1) Use Kirchoff's rules to solve for the currents in the circuit shown. Be sure to label your an swers clearly. (6 pts.) la co nsole to share the core in the drait tom. Be ware bibel your en
From the circuit shown below,
(a) use KCL and KVL to solve for the three currents.
(b) With the given data below and the two currents flowing
clockwise, determine both currents using mesh analysis and the
voltages across each resistor.
r1= 3 Ohms
r2= 7 Ohms
r3= 2 Ohms
r4= 8 Ohms
a M 10 V 30 il 222 i2 722 892 i3 12 V W
please help with problems 7 and 8, I am extremely
confused!
Part 2: Kirchhoff's Rules For the circuit shown below, the directions of the currents through the circuit elements has been chosen arbitrarily. Using Kirchhoff's rules, you will determine the actual currents through the circuit elements. (Yes, this circuit could be analyzed using equivalent resistance, but don't do it that way.) R1: 752 Kirchhoff's Junction Rule 4) Start by choosing a junction. Write Kirchhoft's Junction rule for that junction below...
Problem 2 (15 points) Use the circuit given to answer the following questions. a. On the figure, identify and label the different currents in this circuit. Be sure to give them directions. [2 point] b. Use Kirchoff's loop rule to write down equations for all 3 possible loops that could be used to solve for the currents in this circuit (You do not need to solve them!) 19 points = V, - IR, - V2 - IR4 so Vo vz...
marks. Question 2 is for Extra Credit! Use Kirchoff's Rules. Show full working and make up a table with all (i) currents (and directions on drawing) through, (ii) voltages across and the (iii) power dissipated by the resistances R1, R2 and R3. Do not do your problem on this sheet. (1) 100 2012 Rz 608 9ον 10.12.
Solve this circuit using node-voltage method. Determine the
currents through all the elements and voltages across all elements.
Verify that the total power developed equals the total power
absorbed
Without repeating the node-voltage analysis, predict the node
voltages at nodes d, c, b and g, if node a was selected as the
reference node (or ground).
R2 560 n R, 1 kn R 430 Vs a ww R 820 n ww R3 2.2 kn V6R430 R, 1.5 k Rs 820...
Use Kirchoff's laws to determine the unknown currents in the circuit shown. RI R2 + Vi iz il V R3 + +1 iz ΣμV,
1. Kirchoff's Rules See Figure 1. The circuit consists of two batteries and five resistors. The terminal voltage of each battery is specified and the resistance value of each resistor is given. Find the potential difference Vab, that is, V- Va. 2. Electric Potential R -1. R24 Ryan cizut Voilor R,= R₂:22 R₂=R4 = 4.2 Rs = 3.0 V. - 5 V, 20v Figure 1 Figure 4 C, C-1 uf Ccy 2uF V-10v Figure 5 Figure 2 Figure 6 C-2...
1) In the circuit below the currents are named A, and lc The current direction is determined by the source (out of positive terminal) in the middle and right branches and is clockwise in the left branch · IA flows through R2 and R1 Is flows through R4 and Vb cflows through R3, Vc AB R2 R3 R4 R1 Vb a) Draw the circuit and show the 3 currents described above, including arrows showing the current direction. Show the voltage...
