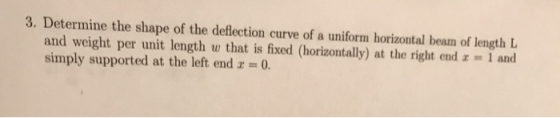

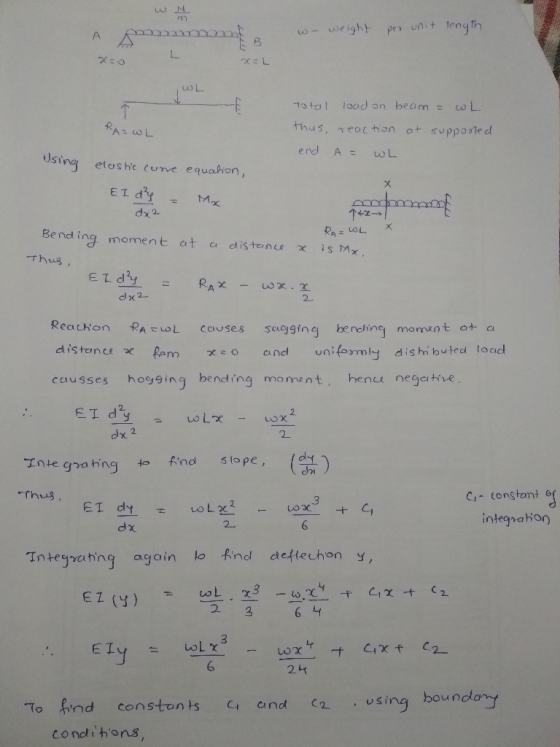

3. Determine the shape of the deflection curve of a uniform horizontal beam of length L and weight per unit length...
the shape of the deflection curve of a uniform horizontal beam of length I 5 and weight per unit length w that is s...
the shape of the deflection curve of a uniform horizontal beam of length I 5 and weight per unit length w that is simply supported at both ends z 0 and
the shape of the deflection curve of a uniform horizontal beam of length I 5 and weight per unit length w that is simply supported at both ends z 0 and
4. Determine the shape of the deflection curve of a uniform horizontal beam of length 2...
4. Determine the shape of the deflection curve of a uniform horizontal beam of length 2 and weight per unit length w that fixed at both ends r 0, and x 2.
A uniform horizontal beam OA, of length a and weight w per unit length, is clamped horizontally at O and freely supporte...
A uniform horizontal beam OA, of length a and
weight w per unit length, is clamped horizontally
at O and freely supported at A. The transverse
displacement y of the beam is governed by the
differential equation
where x is the distance along the beam measured
from O, R is the reaction at A, and E and I are
physical constants. At O the boundary conditions
are y(0) = 0 and . Solve the
differential equation. What is the boundary...
1. A uniform horizontal beam OA, of length a and weight w per unit length, is...
1. A uniform horizontal beam OA, of length a and weight w per unit length, is clamped horizontally at O and freely supported at A. The transverse displacement y of the beam is governed by the differential equation d2y El dx2 w(a x)- R(a - x) where x is the distance along the beam measured from O, R is the reaction at A, and E and I are physical constants. At O the boundary conditions are dy (0) = 0....
ans all parts please 15) (10 Points) Consider a horizontal beam of length L. with uniform...
ans all parts please
15) (10 Points) Consider a horizontal beam of length L. with uniform cross-section and made out of uniform material. It is resting on the x-axis, with one end at the origin. It is acted upon by a vertical force it's own weight in this simple version). The deflection of the beam at any point x,for 0 <=<L.is given by Ely) = w, where E, I, ware constants. E is the Young's modulus of elasticity of the...
A simply supported uniform beam (with length L and flexural rigidity El) carries a moment Mo...
A simply supported uniform beam (with length L and flexural rigidity El) carries a moment Mo (clockwise) at a distance -21B away from the left end (x-0). Calculate the deflection () and slope (dv/de) at 21/3 by using the Rayleigh-Ritz Method. Assume a deflection curve of the form v-asin(rx/L), where a is to be determined
3. A cantilever beam of length L is embedded at its right end, and a horizontal...
3. A cantilever beam of length L is embedded at its right end, and a horizontal compressive force of P pounds is applied at the free left end of the beam. When the origin is taken as its free end, the deflection of the beam can be shown to satisfy the differential equation Ely" = -Py – w(x)} Find the deflection of the cantilever beam if w(x) = Wox, 0 < x < L, and y(0) = 0, y'(L) =...
A uniform horizontal beam with a length l = 8.00 m and weight of Wb =...
A uniform horizontal beam with a length l = 8.00 m and weight of Wb = 200 N is attached to a wall by a pin connection. Its far end is supported by a cable that makes an angle of θ = 53.0◦ with the beam. A person of weight Wp = 600 N stands a distance d = 2.00 m from the wall. Find the tension in the cable.
DO SIG FIGS when solving A uniform beam with total length L is simply supported at...
DO SIG FIGS when solving A uniform beam with total length L is simply supported at each end, A and B. The weight is W. There is a force G that acts downward at x feet from the right end, B. There is also a force F that acts downward at a point 3 ft to the left of where G acts. W is 1400 lbf, L is 27 ft, and G is 1200 lbf. Construct a table for F...
The equation of the elastic curve (deflection) for a simply supported beam under uniform load is...
The equation of the elastic curve (deflection) for a simply supported beam under uniform load is given by y= 1.7 * 10^-5 x^2 (160 - x^2 + x^3), in which, x is the distance from the left support of the beam to any point on the beam, and y is the deflection, both in meters. Find the rate of change of the deflection of the elastic curve at x m = 2
the shape of the deflection curve of a uniform horizontal beam of length I 5 and weight per unit length w that is simply supported at both ends z 0 and
the shape of the deflection curve of a uniform horizontal beam of length I 5 and weight per unit length w that is simply supported at both ends z 0 and
4. Determine the shape of the deflection curve of a uniform horizontal beam of length 2 and weight per unit length w that fixed at both ends r 0, and x 2.
A uniform horizontal beam OA, of length a and
weight w per unit length, is clamped horizontally
at O and freely supported at A. The transverse
displacement y of the beam is governed by the
differential equation
where x is the distance along the beam measured
from O, R is the reaction at A, and E and I are
physical constants. At O the boundary conditions
are y(0) = 0 and . Solve the
differential equation. What is the boundary...
1. A uniform horizontal beam OA, of length a and weight w per unit length, is clamped horizontally at O and freely supported at A. The transverse displacement y of the beam is governed by the differential equation d2y El dx2 w(a x)- R(a - x) where x is the distance along the beam measured from O, R is the reaction at A, and E and I are physical constants. At O the boundary conditions are dy (0) = 0....
ans all parts please
15) (10 Points) Consider a horizontal beam of length L. with uniform cross-section and made out of uniform material. It is resting on the x-axis, with one end at the origin. It is acted upon by a vertical force it's own weight in this simple version). The deflection of the beam at any point x,for 0 <=<L.is given by Ely) = w, where E, I, ware constants. E is the Young's modulus of elasticity of the...
A simply supported uniform beam (with length L and flexural rigidity El) carries a moment Mo (clockwise) at a distance -21B away from the left end (x-0). Calculate the deflection () and slope (dv/de) at 21/3 by using the Rayleigh-Ritz Method. Assume a deflection curve of the form v-asin(rx/L), where a is to be determined
3. A cantilever beam of length L is embedded at its right end, and a horizontal compressive force of P pounds is applied at the free left end of the beam. When the origin is taken as its free end, the deflection of the beam can be shown to satisfy the differential equation Ely" = -Py – w(x)} Find the deflection of the cantilever beam if w(x) = Wox, 0 < x < L, and y(0) = 0, y'(L) =...
