Use diagrams to, explain two possible voltage quality problems that come from having a DaG generator connected on a tra...

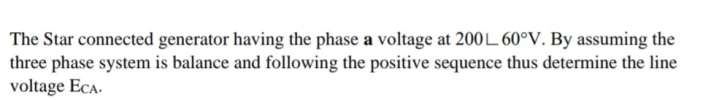

The Star connected generator having the phase a voltage at 200 L 60°V. By assuming the three phase system is balance and following the positive sequence thus determine the line voltage ECA.
A 100MVA synchronous generator is connected to a 25kV infinite bus through two parallel transmission lines. The synchronous reactance of the generator is 2.5Ω. Each transmission line has inductive reactance of 2Ω and 0.2Ω resistance. The generator delivers 90MVA to the infinite bus at 0.8 power factor lagging. For the above conditions, calculate: a. The terminal voltage of the generator b. The equivalent field voltage and power angle c. The real power output at the generator terminals d. The reactive...
EXPLAIN THESE QUESTIONS WITH THE HELP OF DIAGRAMS AND
LABEL DIAGRAMS IN SUCH A WAY THAT I CAN EASILY UNDERSTAND WHAT WE
ARE FINDING AND HOW WE ARE FINDING THE REQUIRED THINGS .I AM
POSTING MY QUESTION 4TH TIME PLEASE DONOT WASTE IT AND PLEASE DO
ALL STEPS I NEED MY ANSWER STEP BY STEP
by the line Two balanced Y-connected loads, one drawing 10 kW at 0.8 power factor lagging and the other 15 kW at 0.9 power factor...
3. (30) A simple power system, shown below, is made up of a synchronous generatcr connected to a synchronous motor through a couple of transformers and a transmission line. The reactances of the different elements of the system are all given in pu as: Xsg-0.5 X of each transformer-10 % Xsm-0.5 X transmission line 0.3 The synchronous motor is connected to an infinite bus Hint: The great advantage of an infinite bus is that it always remains constant and our...
HOMEWORK PROBLEMS Q1: Repeat all part of the problem in the "Class Activity" if the generator is Delta connected Q2: For the "Class Activity" problem what is the efficiency of this generator if it is loaded by a 500 kVA pure resistive load (at the same rated voltage and frequency) Q3: A 13.8-kV 10-MVA 0.8-PF-lagging 60-Hz two-pole Y-connected steam-turbine generator has a synchronous reactance of 12 Ω per phase and an armature resistance of 1.5 Ω per phase. (a) What...
12. For a three-phase balanced system, a generator serves a remote load through two parallel transmission lines with 4 transformers. The system parameters are as follows: Generator: T1: (A-Y, with Y side voltage leading) T2: (A-Y, with Y side voltage leading) T3: (A-Y, with Y side voltage leading) T4: (A-Y, with Y side voltage leading) Line-1 Line-2 Load 100MVA, 21kV, x-0.15pu 120MVA, 20Д/165Y kV, x-O.12pu 80MVA, 20A/1 10Y kV, x-O.1pu 120MVA, 165A/33Y kV, x-0.12pu 80MVA, 11ОД/33Y kV, x-O.1pu 30+j100 O...
c) Figure 1 shows the block diagram of the UPFC. With the use of the phasor diagrams, explain how the UPFC is operating compensator and a phase shifter. voltage regulator, an impeadance as a Busbar V. Transmission line ini Series transformer Step-down ransformeer Series Shunt Voltage Voltage sourced sourced Controller converter converter Settings
c) Figure 1 shows the block diagram of the UPFC. With the use of the phasor diagrams, explain how the UPFC is operating compensator and a phase...
Problem 2. A 3-phase star-connected turbo-generator feeds power to 11 kV infinite bus, through two parallel transmission lines each having a reactance of452. The generator synchronous reactance is 3 Ω. (a) The mechanical input to alternator and its excitation are adjusted as that the operating power factor at alternator terminals is unity and rated current of 500 A is delivered. Calculate the alternator terminal and excitation voltages. Also determine the active and reactive powers delivered to the infinite bus. (b)...

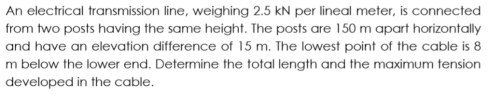

An electrical transmission line, weighing 2.5 kN per lineal meter, is connected from two posts having the same height. The posts are 150 m apart horizontally and have an elevation difference of 15 m. The lowest point of the cable is 8 m below the lower end. Determine the total length and the maximum tension developed in the cable.
Problem 7. Three-phase Balanced Fault Analysis. For the two-generator system below, a three-phase short occurs at point A. Ignoring prefault currents and assuming a prefault bus voltage of 1.0 р.u., determine the fault current, in kA, contributed from generator G Assume base values of 50 MVA and 50 kV on transmission line side. 25 kV 50 MVA, 2.5% 1:2 50 MVA, 2090 25 kV 75.MVA, 15% г,-0.4% Figure 1
Problem 7. Three-phase Balanced Fault Analysis. For the two-generator system below,...
